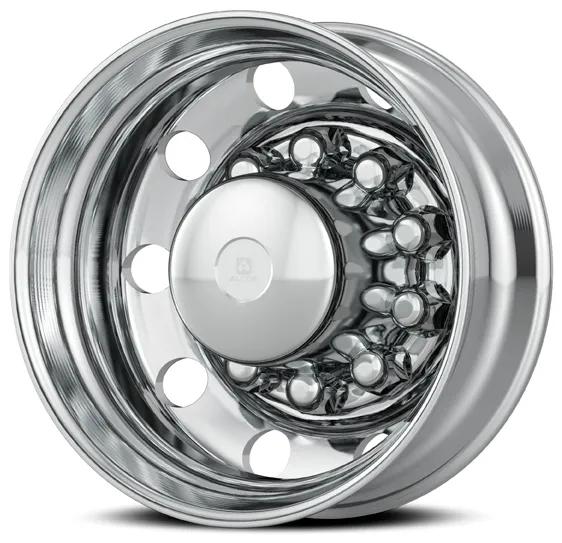

Alcoa Aluminum Wheel 24.5 x 8.25 in, High Polish, 10 Bolt Holes, 130 psi Max Inflation
#ALC98U637
Product Overview
The lightest, strongest, and brightest wheel. Utilizes proprietary MagnaForce® alloy to reduce weight and improve operational performance. Ideal for tractors, trailers, lifts, steers, drives, and dollies.Wheel, High Polish, 285.75 mm Bolt Circle Dia, 220.1 mm Center Bore, 26 mm Hole, Inset: 5.77 in, 130 psi Max Inflation, 7400 lb Maximum Load, Hub Piloted Mounting, 10 Bolt Holes, Recommended Tire Valve: TR555D, 24-1/2 x 8-1/4 in Wheel
Features & Benefits
- Valve stem TR555D
- Bolt Hole Diameter 1.053"
- Proprietary MagnaForce® alloy for reduced weight and enhanced strength
- High polish finish for superior appearance and corrosion resistance
Specifications
| Bolt Circle | 11-1/4 in |
| Bolt Circle Diameter | 11-1/4 in (285.75 mm) |
| Center Bore (in) | 8-43/64 in (22.03 cm) |
| Finish | High Polish |
| Hole Size | 1.02 in (26 mm) |
| Material | Aluminum |
| Max Inflation (psi) | 130 psi (8.96 bar) |
| Mounting | Hub-Piloted Wheels |
| Number of Bolt Holes | 10 |
| Offset | 6-19/32 in |
| Pilot | 8-43/64 in |
| Recommended Tire Valve # | TR555D |
| Type | 15° Tubeless Aluminum Wheel |
| Weight | 51 lbs (23.13 kg) |
| Wheel Size | 24-1/2 in x 8-1/4 in |
| Center Bore | 8-43/64 in |
| Inset | 5-49/64 in |
| Maximum Load | 7400 lb |
| Max Inflation | 130 psi (8.96 bar) |
| Rim Diameter | 24-1/2 in |
| Rim Width | 8-1/4 in |
| Product Category | Wheel |
Interchanges & Equivalent parts:
| 29362ANP |
| 983620 |
| 983640 |
| 983677 |
| 41362SP |
| 41362XP |
| 983673 |
| 98U631 |
| 98U632 |
| A248201BBM |
| A248201MF |
| AH24501-10M |
| AH24501-10P |
| AL248201BBM |
| AL248201MF |
| 983637 |
| AH2450110P |
