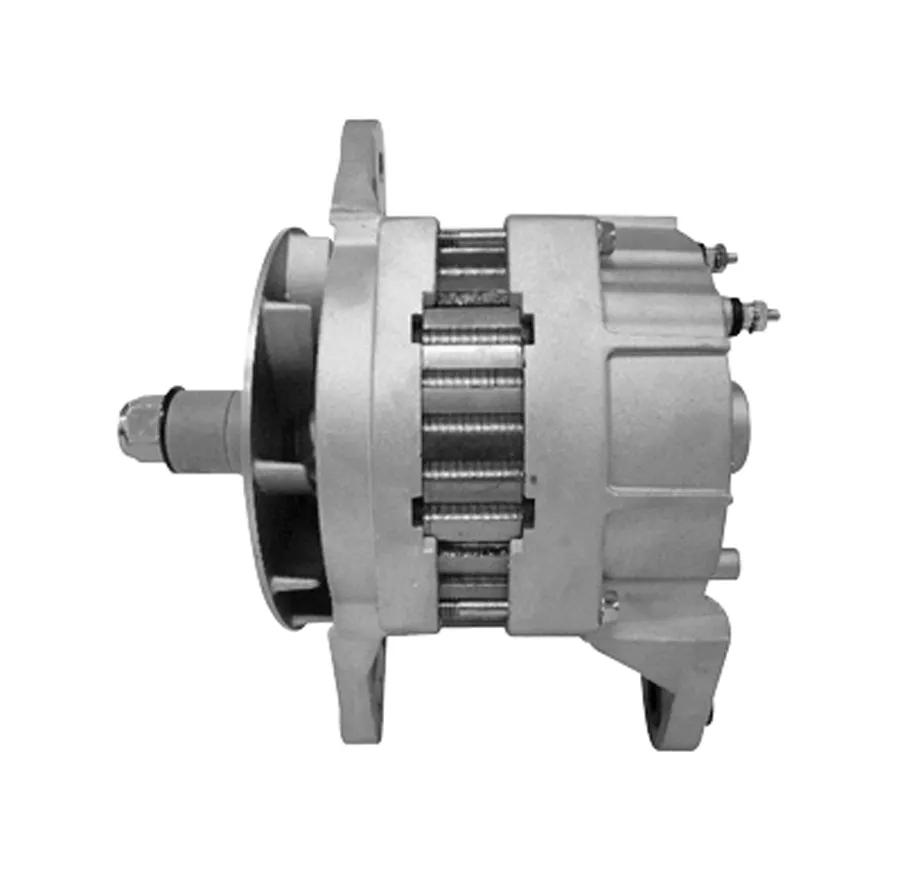

Alternateur 22SI, Neuf, V: 12, Amp: 150
#ROCALT-1004
Caractéristiques et avantages
- New, No Cores to Track!
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- These Alternators Cover Applications from Medium to Heavy Duty Vehicles and School Buses Through the Coreect Model Year for the Most Common Nameplates.
- Our 22, 24, and 28 Series Alternators Provide an Easy Interchange for Hinge & Pad Mount Alternators with 12 or 24 Volt Configurations Ranging from 70 Amp to 200 Amp.
- The Meritor Heavy Duty Alternator Lineup is Broad Based & is Backed by Outstanding Warranty Coverage.
Spécifications
| Adjustable Regulator | Non |
| Ampères | 150 amp |
| Batteryless | Non |
| B+ Output Terminal | 1/4 po (0,64 cm) |
| Contient | (1) Alternateur assemblé, feuille d'instructions |
| Diode Trio | Non |
| Excitation Type | Autonome |
| Type de ventilateur | Externe |
| Ground Terminal | Négatif |
| Housing Coating | Brut |
| I Terminal | #10 |
| Lamp Driver | Oui |
| Modèle | 22 |
| Mount Type | Charnière J-180 |
| Negative Stud Size | M6 |
| Note | Peut utiliser : ALT-0050, ALT-0060, ALT0070, ALT1241 |
| Emballage | Boîte |
| Quantité par pallette | 100 |
| Polarity | Négatif |
| Positive stud size | M8 |
| Rectifier location | Interne |
| Regulator number | SF-22 |
| Régulateur - Type | Interne |
| Remote sense | Non |
| Remote Sense Terminal | Non |
| Rotation | CW-sens horaire |
| R Terminal | 10 |
| Arbre - Diamètre | 55/64 po (2,18 cm) |
| Smart check | Non |
| Homologué UL | Non |
| Unit Pack | 1 |
| Tension Régulateur - Type | Interne |
| Poids | 16 lb (7,26 kg) |
| Neuf ou remanufacturé | Neuf |
