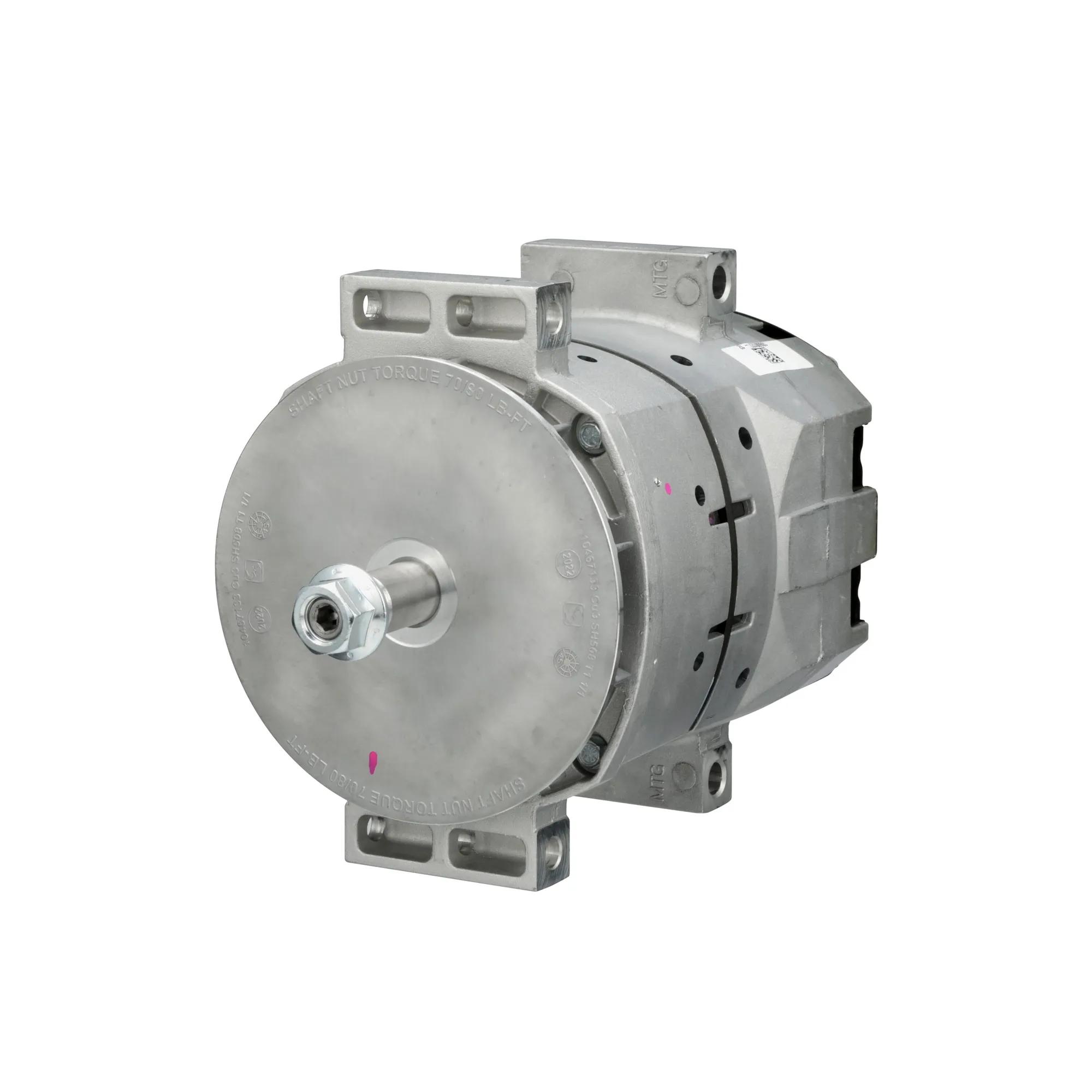

Delco Remy 36SI Brushless Alternator, 12V, 170 Amp, Pad Mount, Bi-Directional Rotation
#DEC8600127
Product Overview
Alternator, Heavy Duty, 1/4 B+ Output Terminal, 170 A Current Rating, 0.68 Efficiency, 10000 rpm Continuous, 12000 rpm Intermittent Maximum Speed, Model 36SI, Pad Mounting, Negative Polarity, Remote Sense Terminal, Clockwise or Counterclockwise Rotation Direction, 12 V System, 125 °C Temperature Rating
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Brushless advantage: fewer moving parts means less wear and longer life.
- Equipped with remote sense which can reduce battery charge time by 50%. Remote sense utilizes a second wire that reads the actual voltage at the battery, signaling the alternator to boost output to compensate for voltage drop, ensuring 14 V at the battery for a full charge between stops.
- OE approved, assuring OE quality and performance for aftermarket replacements.
- Superior output producing up to 170 A at road speed and 100 A at idle.
- High efficiency contributes to improved fuel economy.
Specifications
| Application | Camion moyen et lourd |
| Borne de sortie B+ | 1/4 po |
| Position de l'horloge de l'alternateur | 7h30 |
| Contient | (1) Alternateur, feuille d'instructions |
| Type de ventilateur | Externe |
| Borne au sol | Négative |
| Fabricant | Delco Remy |
| Modèle | 36SI |
| Nbre de rainures | Poulie non incluse |
| Polarité | Négative |
| Terminal de télédétection | Oui |
| Terminal | #10, 10, # 10 |
| Type | Usage intensif |
| Poids | 28 lb (12,7 kg) |
| Courant nominal | 170 A |
| Efficacité | 0,68 |
| Vitesse maximum | 10 000 tr/min en continu, 12 000 tr/min en intermittent |
| Configuration de montage | Patin |
| Type de régulateur | Interne |
| Sens de rotation | Horaire ou antihoraire |
| System Voltage | 12 V |
| Temperature Rating | 125 °C |
| Product Category | Alternateur |
Interchanges & Equivalent parts:
| 3582070C91 |
| 101211-8380 |
| 101211-8410 |
| 21076610 |
| 8700047RMAN |
| D27-6001-0130P |
| D27-6001-1030P |
| DR 8600127 |
| DR 8600127 |
| 110813 |
| 110814 |
| 4832LCH |
| 4835PAH |
| 8600060 |
| 8600202 |
| 8600203 |
| 8700040 |
| ALT-3600 |
| BLP2309 |
| BLP2310 |
| 8600488 |
| 90014516 |
