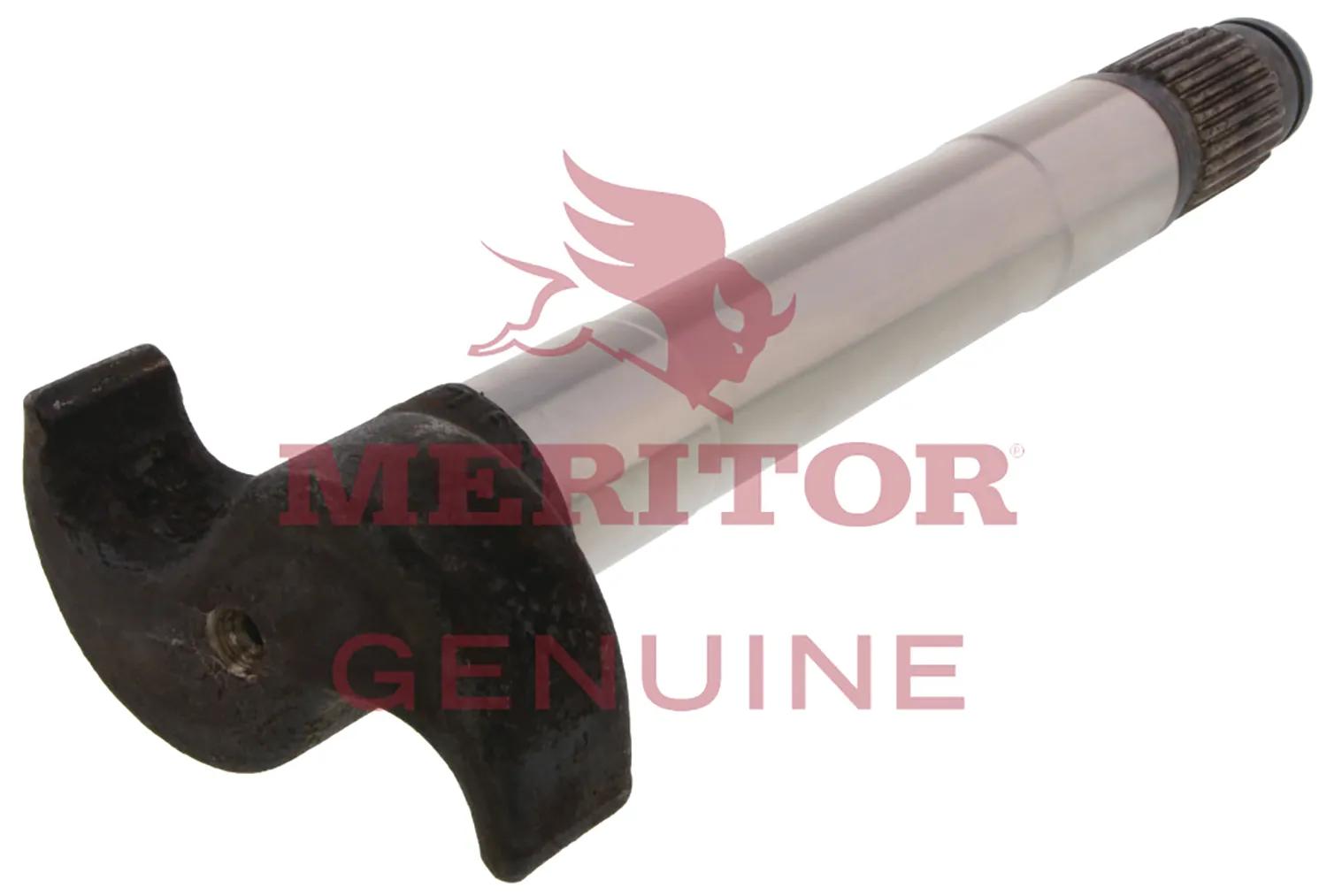

Brake Camshaft, Splines: 1-1/2 in - 28, L: 10-61/64 in
#ROC2210A7515
Features & Benefits
- Ensures optimal brake shoe movement
- LH designation for easy identification
- Ensures smooth operation during braking
- Left-hand orientation ensures proper fit
- Precision-engineered for reliable braking
- Designed to withstand high braking forces
- Enhances overall braking system efficiency
- Durable material for long-lasting performance
Specifications
| Taille de tête d'arbre à cames de frein | 1-3/16 po (3,02 cm) |
| Dimension B de l'arbre à cames de frein | 1-13/16 po (4,61 cm) |
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Type de frein | Q Plus |
| Longueur du tourillon de douille (po) | 1-49/64 po (4,49 cm) |
| Longueur de l'arbre à cames | 10-61/64 po (27,83 cm) |
| Height | 3-1/2 po (8,89 cm) |
| OE Mfg. | Mériteur |
| Right or Left Side | Gauche |
| Spline Diameter | 1-1/2 po (3,81 cm) |
| Spline Diameter-Spline Count | 1-1/2 po - 28 |
| Splines | 28 |
| Length Range | 10 à 11 po |
| VMRS Code | 013-017-004 |
| Weight | 3,47 lbs (7,63 kg) |
| Width | 4-45/64 po (11,95 cm) |
Interchanges & Equivalent parts:
| 1116048 |
| 122.281030.01 |
| 1697183C1 |
| 2210A7515-RI |
| 23122700 |
| 4055 |
| 4481112 |
| 594302C1 |
| 9628 2210A75 15 |
| ATI2210A7515 |
| BH141269 |
| D8514 |
| E-4727 |
| TDA 2210A7515 |
| TDA2210A7515 |
| TP8627 |
| 18-829 |
| 04-461102 |
| 04-481112 |
| 18-515 |
| 2210Z5434 |
| 4461102 |
| 8235-2210A7515 |
| 85860 |
| AR8915 |
| BD125085 |
| C657L |
| CS41160 |
| CS9657L |
| E-4227 |
| H-10558L |
| H10558L |
| HQ-10348L |
| HQ10348L |
| L-2877 |
| L-3246 |
| L-3414 |
| L-3415 |
| M-2612L |
| M-4002L |
| WA055043 |
