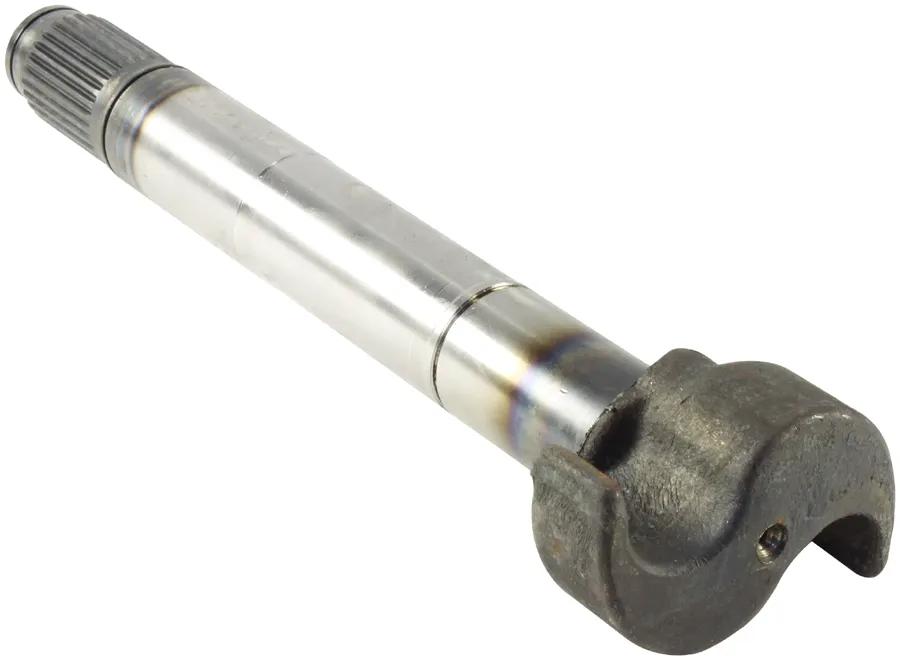

Brake Camshaft, Splines: 1-1/2 in - 28, L: 11-1/32 in
#CAMCAM349L
Features & Benefits
- Each End Is Induction Hardened For Maximum Strength. Durability and Reliability. Manufactured to Meet or Exceed O.E.M Specifications in Function. Form & Fit.
Specifications
| Application | Trailer Axle |
| Brake Camshaft Head Size | 1-1/8 in (2.86 cm) |
| Brake Camshaft Dimension B | 2-5/16 in (5.88 cm) |
| Brake Surface Diameter | 16 in (40.48 cm) |
| Brake Type | Hendrickson Intraax |
| Camshaft Length | 11-1/32 in (28.02 cm) |
| Height | 3-1/2 in (8.89 cm) |
| Mfg. Part | HENDRICKSON S-24636-1L. Euclid E11866 |
| OE Mfg. | HENDRICKSON |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 11 to 11.99 in |
| Width | 4-45/64 in (11.95 cm) |
Interchanges & Equivalent parts:
| C4635L |
| C609L |
| CAM349LQ |
| E-11866 |
| E11866 |
| H12032L |
| HERH12032L |
| R607325 |
| S-24636-1L |
| S24636-1L |
| 04-871122 |
| 04871122 |
| 125.281102.01 |
| 4871122 |
| AR2032L |
| S246361L |
