Brake Camshaft, Splines: 1-1/2 in - 28, L: 23-1/2 in
#MZB123.282314.02

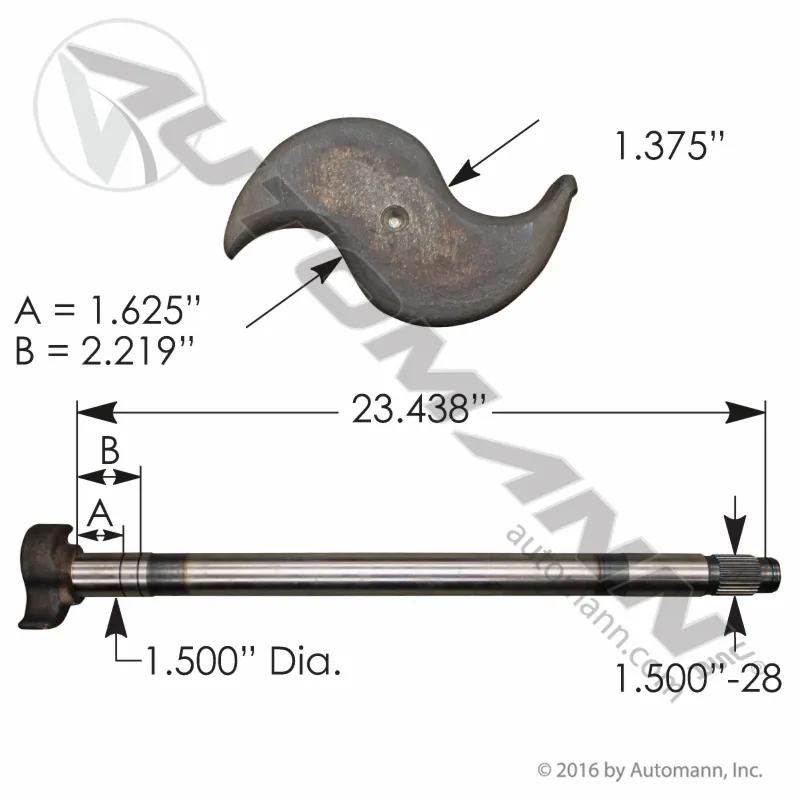

Specifications
| Application | Dana/Spicer |
| Brake Camshaft Head Size | 1-3/8 in (3.5 cm) |
| Brake Camshaft Dimension B | 2-7/32 in (5.64 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Camshaft Length | 23-7/16 in (59.54 cm) |
| Height | 1-31/32 in (5.01 cm) |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1.500"-28 |
| Splines | 28 |
| Length Range | 23 to 23.99 in |
| Weight | 13.7 lb (6.21 kg) |
Interchanges & Equivalent parts:
| R607172 |
| 123.282314.02 |
