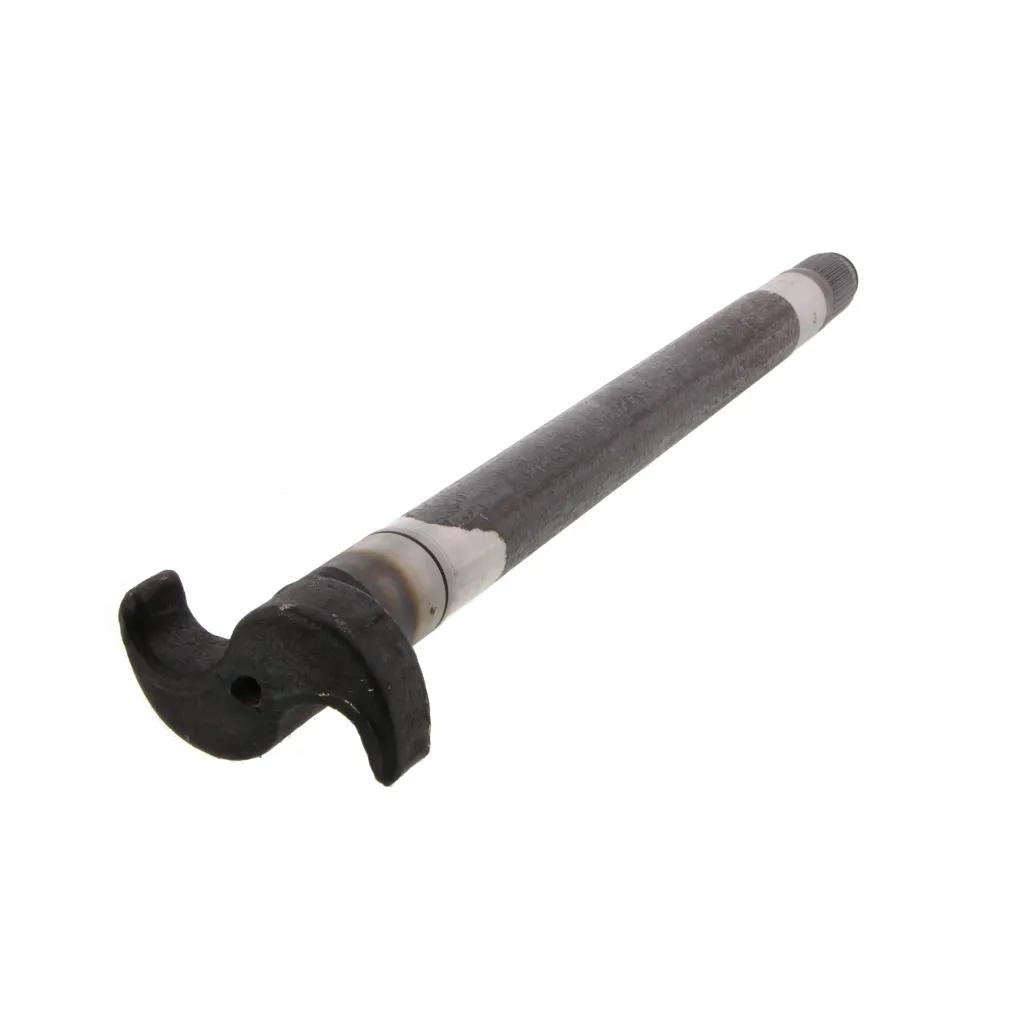

Brake Camshaft, Splines: 1-1/2 in - 28, L: 24-1/8 in
#ROCR607277
Specifications
| Application | Trailer Axle |
| Brake Camshaft Head Size | 1-1/8 in (2.86 cm) |
| Brake Camshaft Dimension B | 2-7/32 in (5.64 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Xtralife (XL) |
| Bushing Journal Length (in.) | 2-1/2 in (6.35 cm) |
| Camshaft Length | 24-1/8 in (61.28 cm) |
| OE Mfg. | Dana-Spicer |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 24 to 24.99 in |
Interchanges & Equivalent parts:
| 13CS3338 |
| 8235-R607277 |
| BWPM-3699-L |
| C910L |
| CS10909 |
| CS2428L |
| 04-562412 |
| 17-931 |
| ATIR607277 |
| E-10909 |
| GDSC910L |
| H-10176L |
| H10176L |
| L-3321 |
| M-3699L |
| M16WKL25-242 |
| OTR10909 |
| R607277-RI |
| RWR607277 |
| SIRC910L |
| TC10176L |
| TDA R607277 |
| TDAR607277 |
| TWD R607277 |
