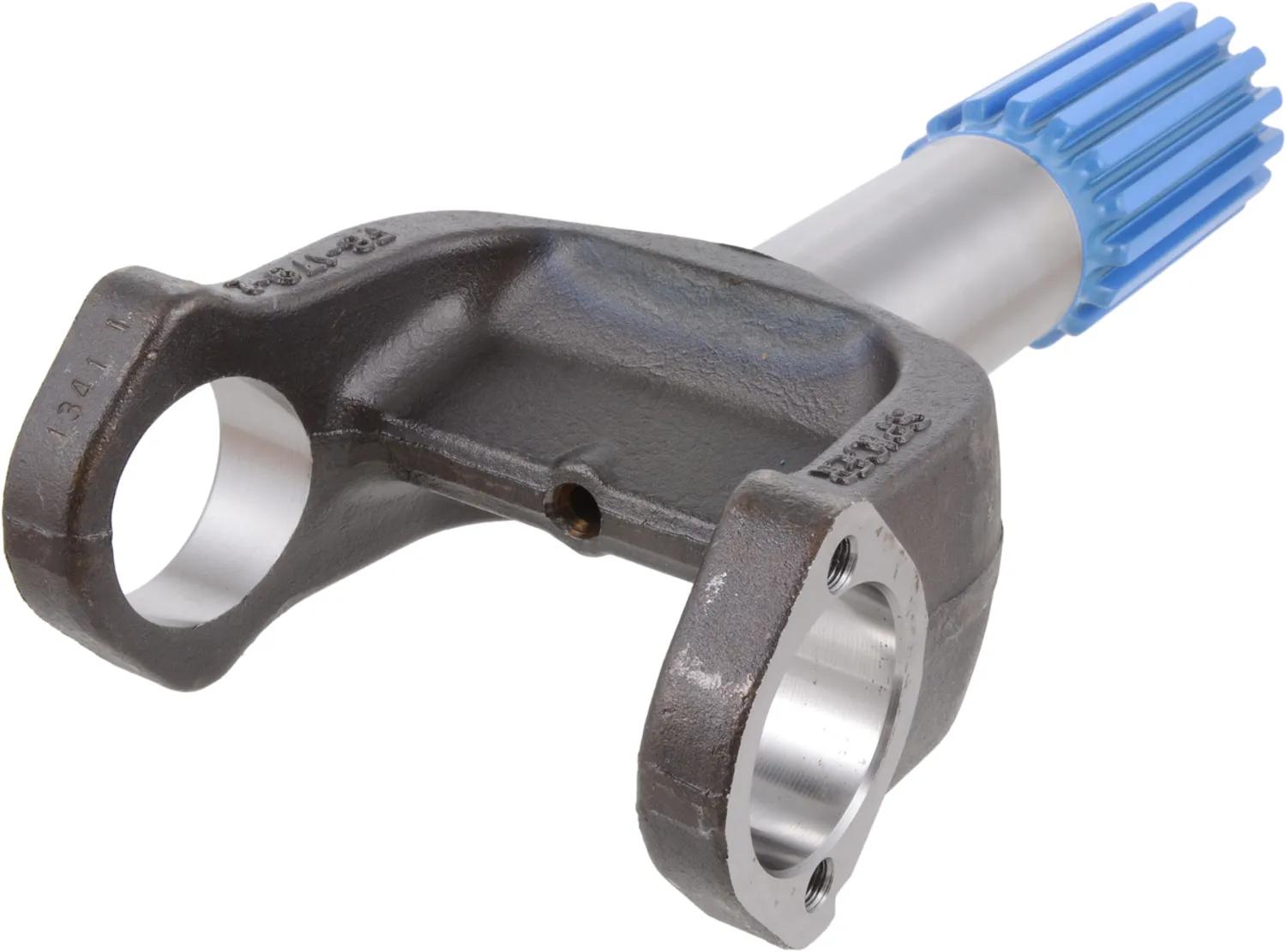

Spicer 1710 Yoke Shaft, 2.5 in Spline Diameter, 4 in Spline Length, BP Style
#SPI6-82-1341-1
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft Yoke Shaft, 45 deg Angle, 12.688 in Center Line to End of Spline, 8.562 in End/Spline to Point/Rad, 1710, 16 Spline Count, 2.5 in Spline Dia, 2.125 in Spline Hole Minor Dia, 4 in Spline Length, 0.234 in Spline Width, BP
Features & Benefits
- Genuine Spicer quality and reliability
- Designed and tested by Dana for optimal performance
- Compatible with 1710 series driveshafts
- BP style yoke shaft with precise spline dimensions
Specifications
| Séries | 1710 |
| Diamètre de spline (po) | 2,5 po |
| Code VMRS | 024002061 |
| Angle | 45° |
| Axe central à l'extrémité de la cannelure | 12.688 in |
| End/Spline to Point/Rad | 8.562 in |
| Nombre de cannelures | 16 |
| Diamètre mineur du trou de cannelure | 2.125 |
| Spline Length | 4 |
| Spline Width | 0.234 |
| Style | BP |
| Product Category | Arbre de fourche d'arbre de transmission |
| Quantity | 1 |
| Weight | 17,73 lb |
Interchanges & Equivalent parts:
| 6-82-1091-8 |
| 6-82-1061-16 |
| 2104-68213411 |
| 68210918 |
| 68213411 |
| D68213411 |
| E68213411 |
| SP 68213411 |
| TWD68213411 |
| 6-82-1341-1 |
