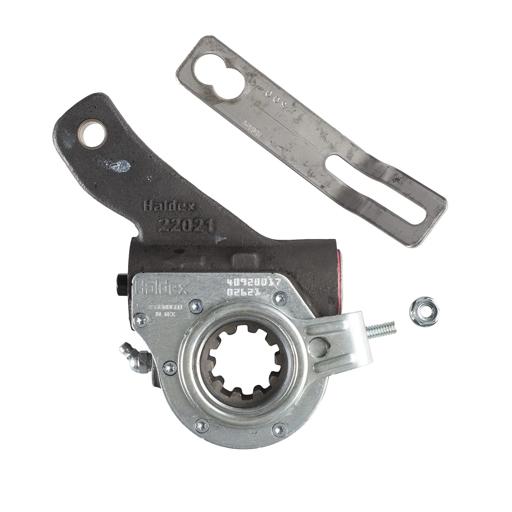

ASA, Spline: 1-1/2 in - 10, L: 5 1/2 in, 6 1/2 in
#ROCR806022A
Features & Benefits
- Enhances braking system longevity
- Ensures consistent braking efficiency and safety
- Controls brake shoe travel for optimal performance
- Automates brake adjustment to save time and effort
- Prevents excessive brake wear due to unadjusted shoes
- Adjusts brake automatically to maintain proper clearance
- Regulates brake system effectively for smooth operations
- Maintains optimal clearance between brake drums and shoes
Specifications
| Angle | 34 deg |
| Application | Drive |
| Arm Length # 1 | 5-1/2 in & 6-1/2 in |
| Automatic or Manual | Automatic |
| Brake Size | 16-1/2 in (41,91 cm) |
| Bushing I.D. | 5/8 in (1.59 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | Less than 15 foot pounds |
| Model | AA1 Replacement |
| Notes | Standard version. Premium version is M807022. Self-setting alternative is M808022. |
| Number of Splines | 10 |
| Production Part Number | 409-10733 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Type | Clearance-Sensing |
Interchanges & Equivalent parts:
| E6924A |
| 05-661 |
| 8235-R806022A |
| TDAR806022A |
| SA10103 |
| 815809 |
| SA1202HC |
| 1331031 |
