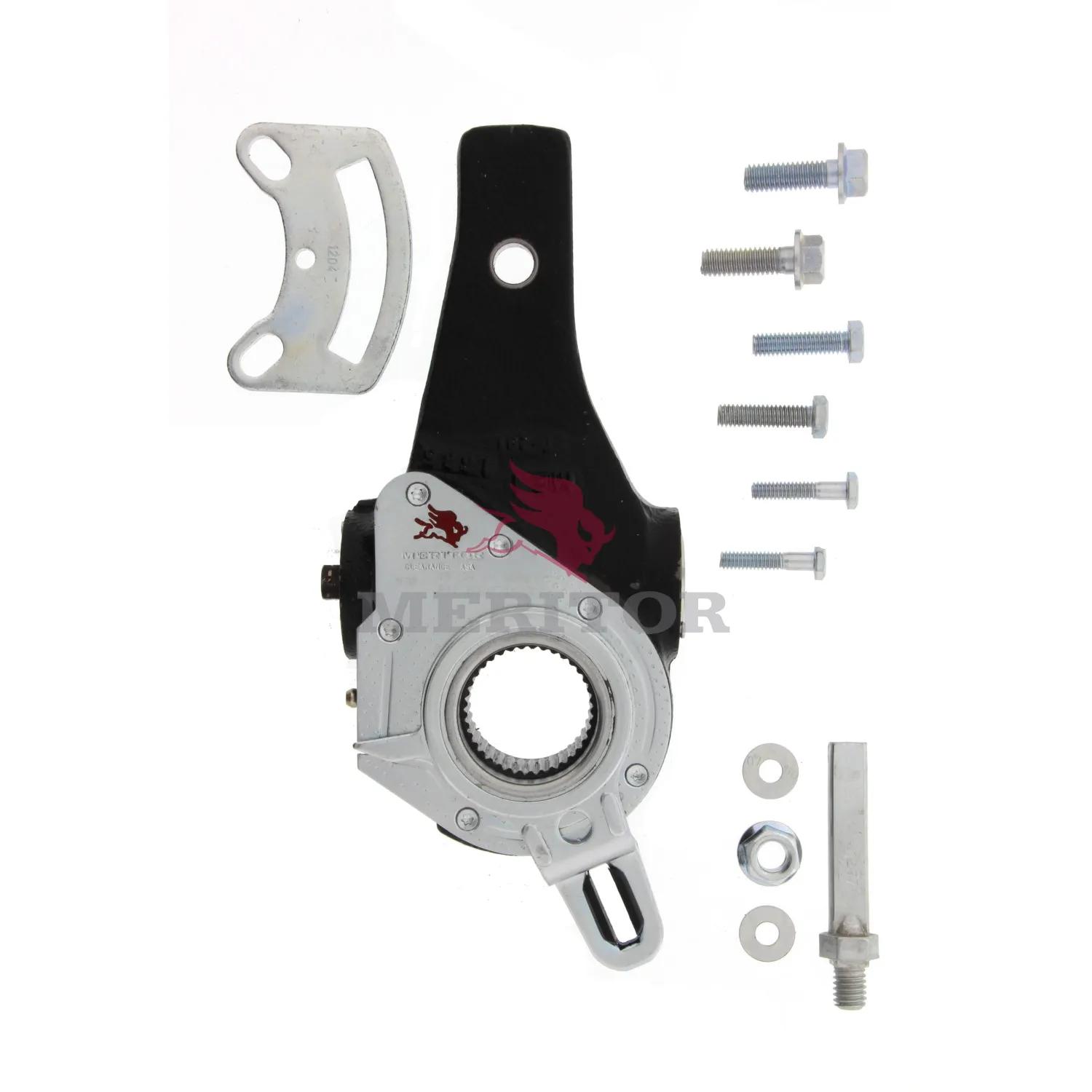

ASA, Spline: 1-1/2 in - 28, L: 5 1/2 in
#ROCR806019A
Caractéristiques et avantages
- Enhances braking system longevity
- Ensures consistent braking efficiency and safety
- Controls brake shoe travel for optimal performance
- Automates brake adjustment to save time and effort
- Prevents excessive brake wear due to unadjusted shoes
- Adjusts brake automatically to maintain proper clearance
- Regulates brake system effectively for smooth operations
- Maintains optimal clearance between brake drums and shoes
Spécifications
| Angle | 0 degré |
| Application | Remorque |
| Arm Length # 1 | 5-1/2 po |
| Automatic or Manual | Automatique |
| Brake Size | 16-1/2 po (41,91 cm) |
| Bushing I.D. | 1/2 po (1,27 cm) |
| Chamber Sizes | 20 po (50,8 cm) |
| Clevis Thread Diameter (in.) | 5/8 po (1,59 cm) |
| Clevis Threads per inch | 18 po (45,72 cm) |
| Clevis Type | Sans chape |
| Maximum Torque | Moins de 15 livres par pied |
| Model | Remplacement AA1 |
| Notes | Standard version, Premium version is M807019, Self-setting alternative is M808019, |
| Number of Splines | 28 |
| Production Part Number | 409-10683 |
| Spline Diameter | 1-1/2 po (3,81 cm) |
| Spline Diameter-Spline Count | 1-1/2 po - 28 |
| Type | Détection de jeu |
Interchanges et pièces équivalentes:
| 07135 |
| 40010211 |
| 40020211 |
| 813648 |
| D0010211 |
| PROSA56211 |
| R806019 |
| 05668 |
| 1352840 |
| 8235-R806019A |
| MERR806019A |
| SA10211 |
| E6944A |
| SA2202HR |
| WA10211 |
| 135284 |
