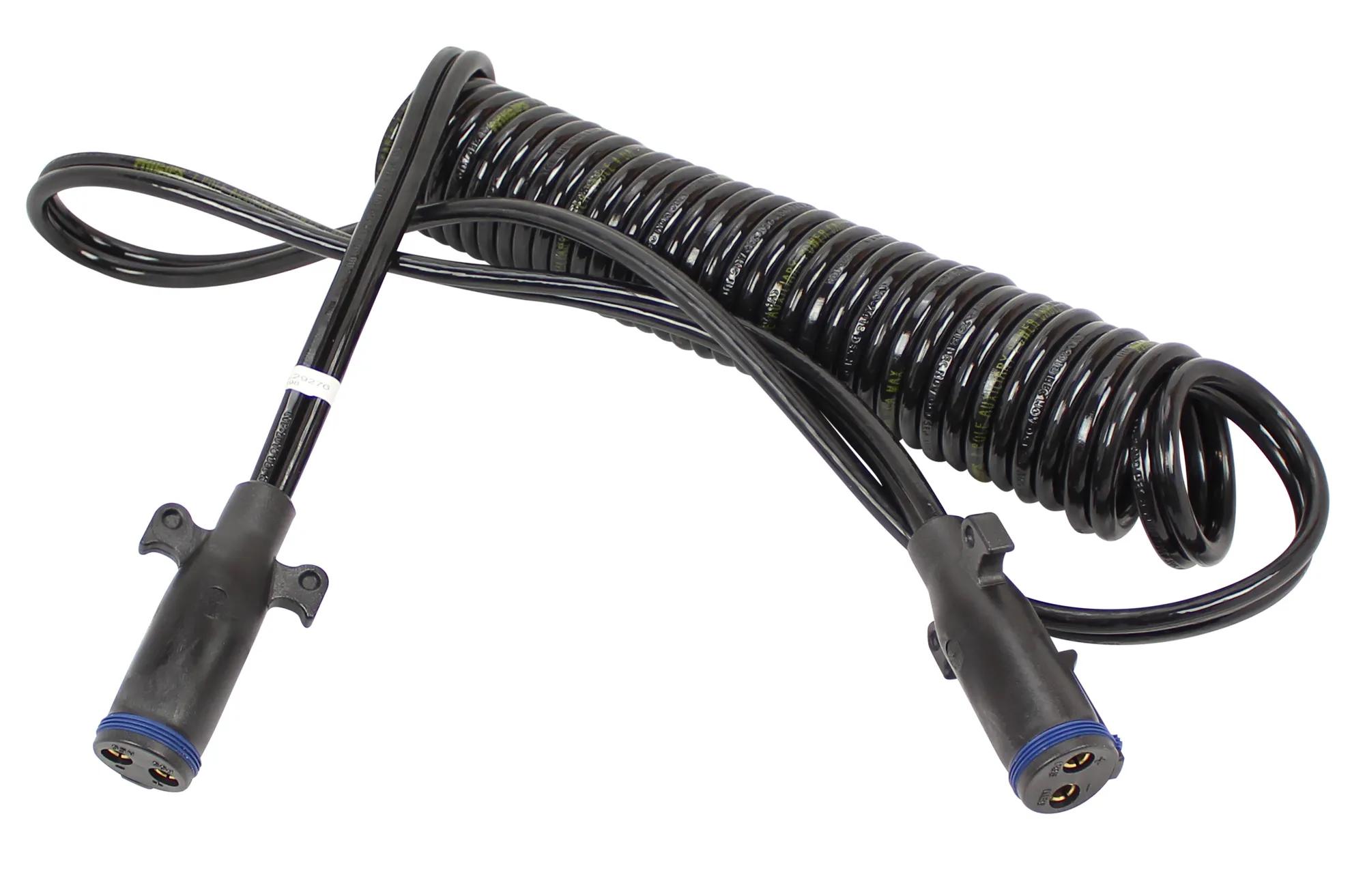

Cable Assembly, Coiled, WEATHER-TITE™ M2, Liftgate, 2/4 GA, 15 ft Length
#PHI23-29276
Product Overview
We take a customer-first approach to innovation, design, and manufacturing of solutions for the commercial trucking industry. In our pursuit of a better future, we refuse to settle.Cable Assembly, Coiled, WEATHER-TITE™ M2, Liftgate, 2/4 GA Gauge, 48 in Lead Wire, 2 Contacts, J3082 Standards, -82 to 195 °F Temperature Range, 15 ft Length
Features & Benefits
- 4 ga 100 A continuous capacity; 2 ga 150 A continuous capacity
- Features plugs that are unbreakable with non-corrosive housing which are completely molded to the electrical cable to combat against corrosion
- Flexible from -82°F to 195°F (-63°C to 91°C) with excellent recoil memory, chemical and abrasion resistance
- For dual pole liftgate applications utilizing a trailer battery pack
- Meets J3082 standards
- The WEATHER-TITE™ seal adds additional corrosion protection at the front of the plug by blocking moisture and contaminants from entering the electrical system through the coupled connection
- Cable guard sleeves enhance strain relief protection at the back of the plug for longer cable life
- Will work with any standard J3082 dual pole liftgate socket
- With molded plug with Weather-Tite™ seal
Specifications
| Length | 15 ft |
| Type | Coiled, WEATHER-TITE™ M2, Liftgate |
| Current Rating | 100 A (4 ga), 150 A (2 ga) |
| Gauge | 2/4 ga |
| Lead Wire | 48 in |
| Standards | J3082 |
| Temperature Range | -82 to 195 °F |
| Product Category | Cable Assembly |
Interchanges & Equivalent parts:
| 23-29276 |
