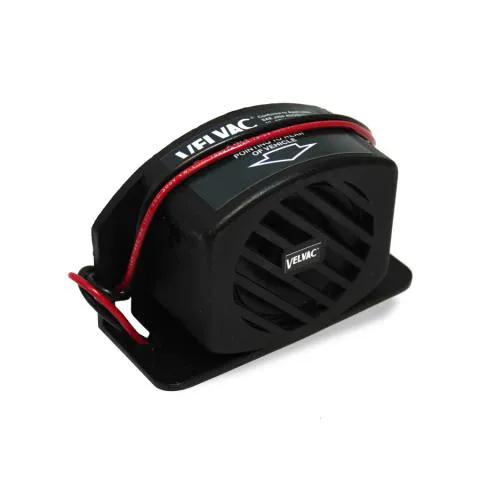

Back-Up Alarm 107 Decibel

#VEL697107

See More
See Less

Features & Benefits


  • Speaker Style Back-up Alarm
  • Velvac speaker style back-up alarms feature chemical resistant, high impact housings to protect internal components and epoxy sealed solid state electronics for trouble-free operation and safe steam cleaning. Units have an operating temperature range of -40 to +185 F allowing for safe use in even the most extreme conditions. All seven models were designed with a universal flange for mounting flexibility and two 16 gauge, 9 inch color-coded wire leads for fast, dependable installation. In addition, each unit is polarity and voltage protected and meets SAE J994 AUG 93 Types A to D requirements, depending on decibel output.
  • 3-5/16 inch to 4-1/8 inch Mounting Centers
  • 107 Decibel

Specifications


dB Level 107 dB
Height 1-3/4 in (4.45 cm)
Length 4-1/2 in (11.43 cm)
Plug Side One PL-2 (Stripped End)
Volt 12V & 24V
Weight 0.48 lb (0.22 kg)
Width 3 in (7.62 cm)

Interchanges & Equivalent parts:


697107
777083
