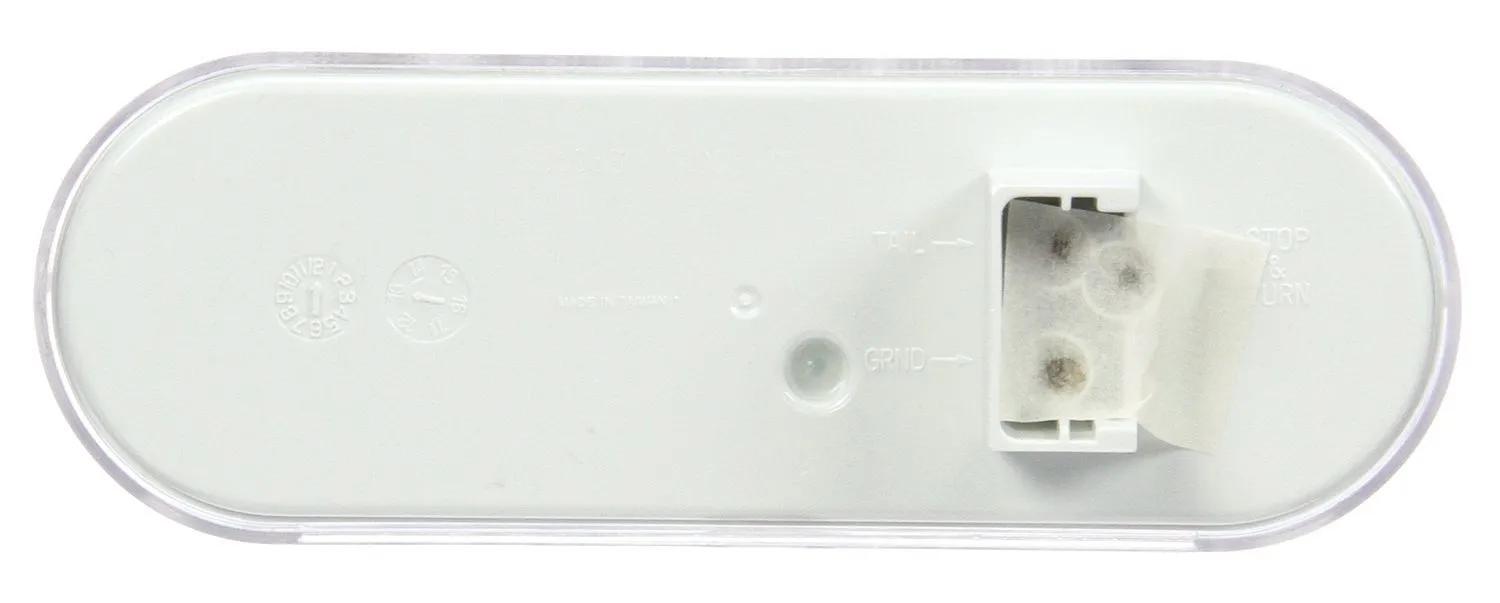

Backup Light, Signal-Stat 24-Diode LED, Clear Oval Polycarbonate Lens, PL-2, 12V
#TRL6060C
Product Overview
Signal-Stat LED back-up light featuring a clear oval polycarbonate lens with 24 diodes. Designed for 12V systems with PL-2 connection, this lamp offers a unique LED array for full pattern light output. Epoxy-encapsulated electronics protect against moisture and corrosion, ensuring durability and reliability. Ideal for owner/operator show trucks, it provides low current draw for increased battery and alternator life and is resistant to shock and vibration.Backup Light, 24 Diode, LED Bulb, PL-2, Grommet, Polycarbonate, Clear, 2.25 in H, 1.75 in L, Light Function: R2, Signal-Stat, Oval, 12 V, Warranty: 2 Years, 6.5 in W
Features & Benefits
- Popular on owner/operator show trucks
- Uses standard right-angle connection
- 24-diode pattern
- Unique LED array displays a full pattern light output design
- Epoxy-encapsulated electronics prevents damage from moisture and corrosion
- Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- LEDs have no filament, therefore are extremely resistant to shock and vibration
- Two lamps required for back-up
- Legal mounted horizontally or vertically
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Bulb Type | LED |
| Color | White |
| Common Size | 2 in |
| Connection Type | PL-2 |
| Contents | Lamp |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94992 |
| Height | 2.25 in |
| Kit (Y/N) | Non |
| # Lamp Prongs | 3 |
| Lamp Type | DEL |
| LED | Oui |
| Length | 6-31/64 po |
| Lens Color | Transparent |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Oeillet |
| Mount Type | Montage par oeillet |
| Plug Side Two | Sans fiche |
| Quantity | 1 |
| Series | Signal-Stat |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Style | 2 Lamp System |
| Technology | LED |
| Type | 24 Diode |
| UPC | 735111158523 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | 2 Years |
| Weight | 0.54 lb (0.24 kg) |
| Width | 6-1/2 in |
| Current Rating | 0.25 amp |
| Light Function | R2 |
| Product Line | Signal-Stat |
| Product Category | Backup Light |
Interchanges & Equivalent parts:
| 62561 |
| 6060C3 |
| 66205C |
| HB9019C |
| TRU6060C |
| 1812420234 |
| 62561GR0 |
| 62751GR0 |
| 64634W |
| 82800W |
| 82800WU |
| 8413-6060C |
| BUL-52CB |
| BUL-72CB |
| LED2238-24C |
| LIT6060C |
| LL080305 |
| M63150 |
| PTL6027W |
| RC BUL10L |
| TL 6060C |
| TL6060C |
| TLD6060C |
| 1000-BUL10L |
| 420C-5P |
| 6060CS1G |
| 62051GR0 |
| 821C-7 |
| BUL10L |
| M416 |
| M63324 |
| SE2238W |
| TKL6060C |
| 6060C-3 |
