Barre d'éclairage, jaune, LED
#TRL15050Y
Sommaire du produit

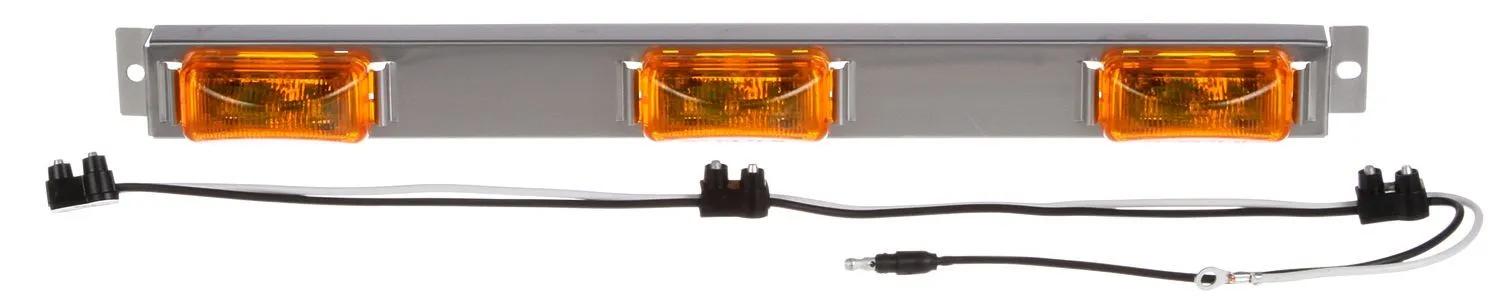

Série 15, LED, Barre d'identification, Rectangulaire, Jaune, 3 Lumières, Centres de 6", Argent, 12V, Kit
Caractéristiques et avantages
- Designed to fit applications requiring minimal space
- Features stainless steel bar with three LED Model 15 lamps on 6" centers
- Electronics completely sealed in epoxy to resist corrosion and moisture
- Sonically sealed lens and housing
Spécifications
| Color | Yellow |
| Contents | Identification Bar, Lamps, Wiring |
| Current Major | 0.05 amp |
| Depth | 1-19/32 in (4.04 cm) |
| Dimension | 2.5 in L x 1.21 in W x .83 in D |
| Fits Pigtail Part #(s) | 93943 |
| Height | 1-3/8 in (3.51 cm) |
| Includes Gasket | No |
| Kit (Y/N) | Yes |
| Lamp Screw Hole Diameter | 7/32 in (0.56 cm) |
| Lamps Included | Yes |
| Lamp Type | Model 35 ID Bar |
| Length | 16-1/2 in (41.91 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 2-31/64 in (6.3 cm) |
| Material | Polycarbonate |
| Mount/Trim Material | Stainless Steel |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | .180 Bullet, Standard |
| Type de produit | Identification Bar |
| Séries | 15 Series |
| Forme | Rectangular |
| Code VMRS | 034-004-281 |
| Volt | 12V |
| Poids | 0.75 lb (0.34 kg) |
| Largeur | 16-1/2 in (41.91 cm) |
| Calibre de(s) fil(s) | 14 ga |
| Longueur de fil | 6 in (15.24 cm) |
Interchanges et pièces équivalentes:
| 15050Y |
| KL10112AM |
| TL15050Y |
| TLD15050Y |
| 8413-15050Y |
| KL-10112AM |
| LIT15050Y |
| TL 15050Y |
| TL 15050Y |
| 49182GR0 |
| 1363A |
