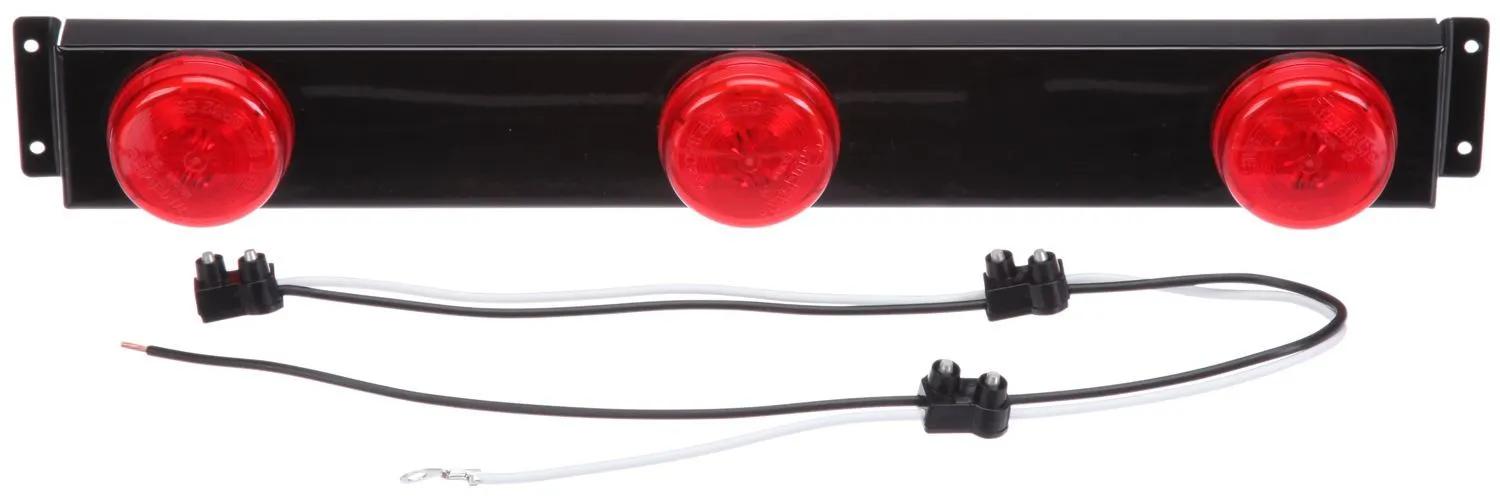

Light Bar, Red, Incandescent
#TRL30740R
Product Overview
30 Series, Incandescent, Identification Bar, Round, Red, 3 Lights, 6" Centers, Black, 12V, Kit
Features & Benefits
- Features rugged stainless steel or black enameled ID bar

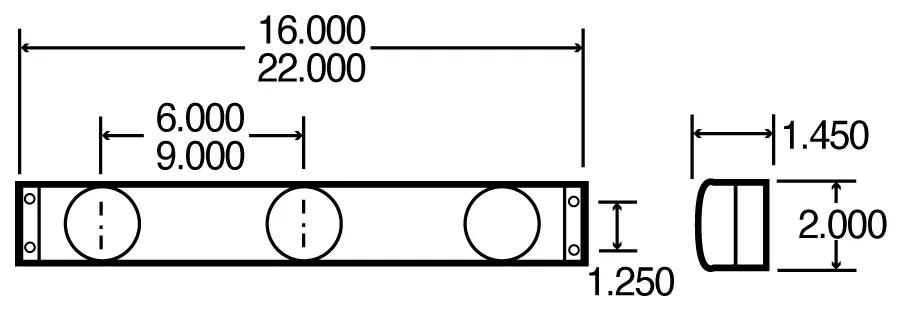

- Lamps are mounted on 6" or 9" centers
Specifications
| Couleur | Rouge |
| Contient | Barre d'identification, lampes, câblage |
| Major actuel | 0,33 amp |
| Profondeur | 2 in (5.08 cm) |
| Convient au tirebouchon - Numéro(s) de pièce | 93906 |
| Hauteur | 1-29/64 in (3.68 cm) |
| Joint inclus (O/N) | No |
| Trousse (O/N) | Yes |
| Diamètre du trou de vis de la lampe | 9/64 po (0,36 cm) |
| Lampes inclus (O/N) | Yes |
| Type de lampe | Barre d'identification en acier modèle 15 |
| Longueur | 16 in (40.64 cm) |
| Matériau de la lentille | Polycarbonate |
| Lentille - Largeur | 2 po (5,08 cm) |
| Matériel | Polycarbonate |
| Matériau de montage/garniture | Steel |
| Type de support | Montage par support |
| Nombre de câbles | 2 |
| Fiche #1 | PL-10, Female |
| Fiche #2 | PL-2 (Stripped End) |
| Type de produit | Identification Bar |
| Séries | 30 Series |
| Forme | Rectangle |
| Code VMRS | 034-004-149 |
| Volt | 12V |
| Poids | 0.92 lb (0.42 kg) |
| Largeur | 16 in (40.64 cm) |
| Wire Gauge | 14 ga |
| Wire Length | 6 po (15,24 cm) |
Interchanges & Equivalent parts:
| 2FH725 |
| 4142754 |
| 1013 |
| 49042 |
| 49142 |
| 30740R |
| 103455 |
| 713527 |
| 71352799 |
| 878070274 |
| 68421001 |
| 841330740R |
| 701110083 |
| 810000013 |
| HT50602456 |
| TL30740R |
| TLD30740R |
| TRL30740R |
| TRU30740R |
| LB2000R |
| MTL07036200R |
| LKA6984 |
| LQA33391 |
| 1231013 |
| 253-9751 |
| 2539751 |
| MNC253-9751 |
| 8413-30740R |
| LIT30740R |
| LT730R |
| TL 30740R |
| TL 30740R |
| TL-30740R |
| TLT 30740R |
| 49042GR0 |
| GRT49042 |
| TKL30740R |
| G228 |
| 410078 |
| 3130740R |
| 60960 |
| J951605 |
