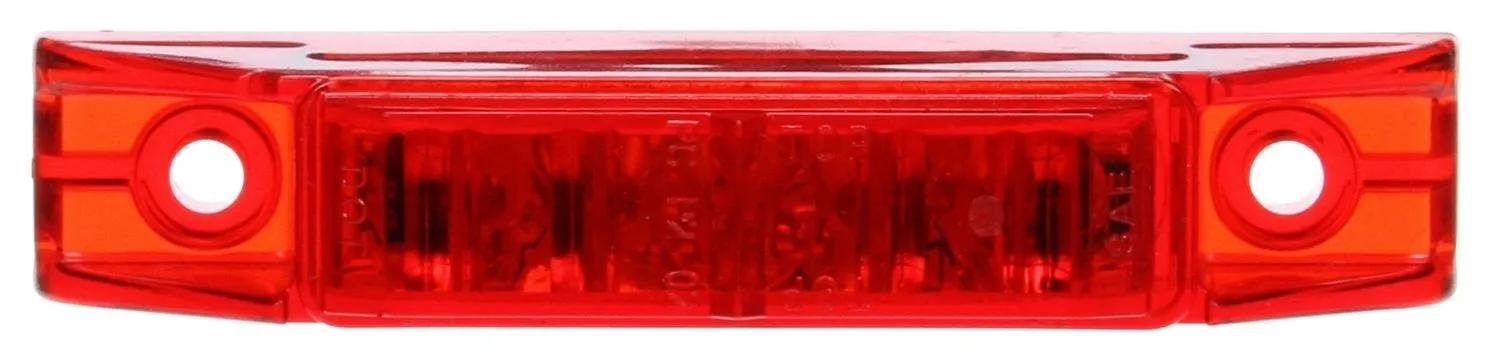

ID Light Assembly, Red, Rectangular
#TRL35033R
Product Overview
35 Series, Dual-Function, LED, ID Light Assembly, Rectangular, Red, 3 Lights, Red, 12V, Kit
Features & Benefits
- Allows Marker Lamps To Operate In Two Output Levels; Brighter Lighting Activated By The Brake Function
- Designed For Use w/ Truck-Lite's Fit N' Forget Stopping Sstems
- Great For Retrofitting Existing Lighting Systems
- Heavy Duty Design Allows For Care-free Maintenance
- Internal Electronics Protect Vehicle From Electrical Feedback
- Wiring is PVC Overmold 16 Gauge Wire
- Tested To Run From -40 To 85 Deg Celcius
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Dual Function Three Lamp Kit |
| Current Major | 0.06 amp |
| Depth | 1-5/32 in (2.95 cm) |
| Height | 47/64 in (1.85 cm) |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 4 in (10.16 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Surface Mount |
| Number Of Wires | 2 |
| Plug Side One | Metripack |
| Plug Side Two | Metripack |
| Series | 35 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | ID Light Assembly |
| VMRS Code | 034-006-021 |
| Volt | 12V |
| Width | 3-63/64 in (10.11 cm) |
| Wire Length | 11-1/2 in (29.21 cm) |
Interchanges & Equivalent parts:
| 35033R |
| 35033RTLT |
