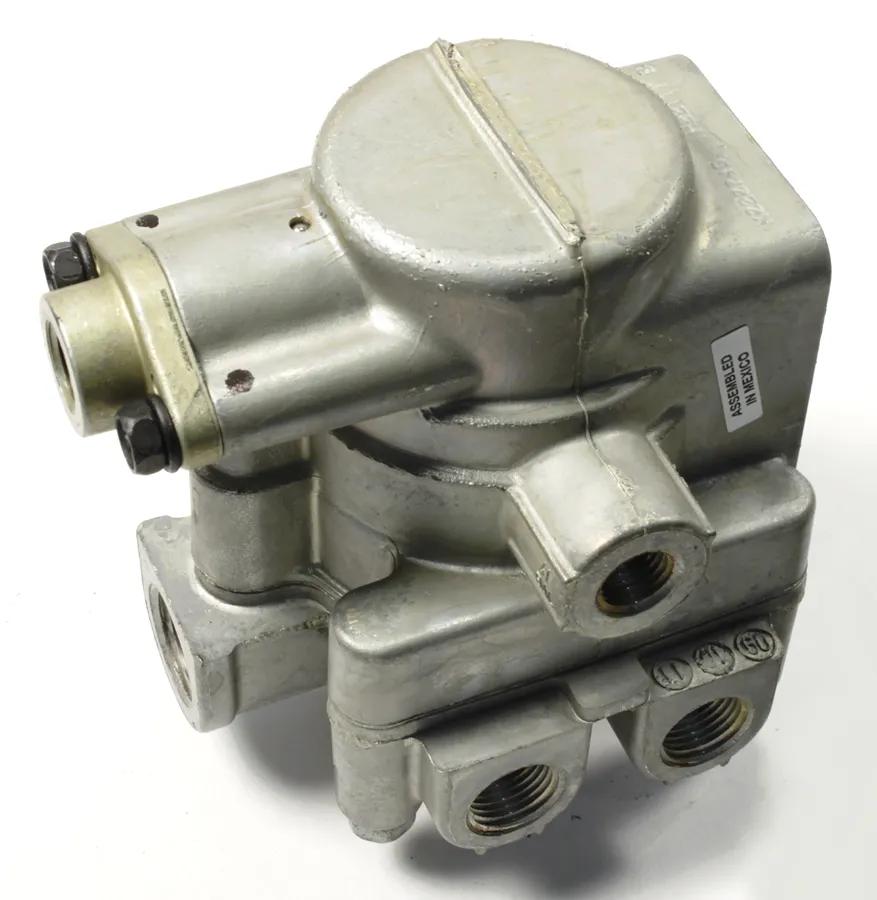

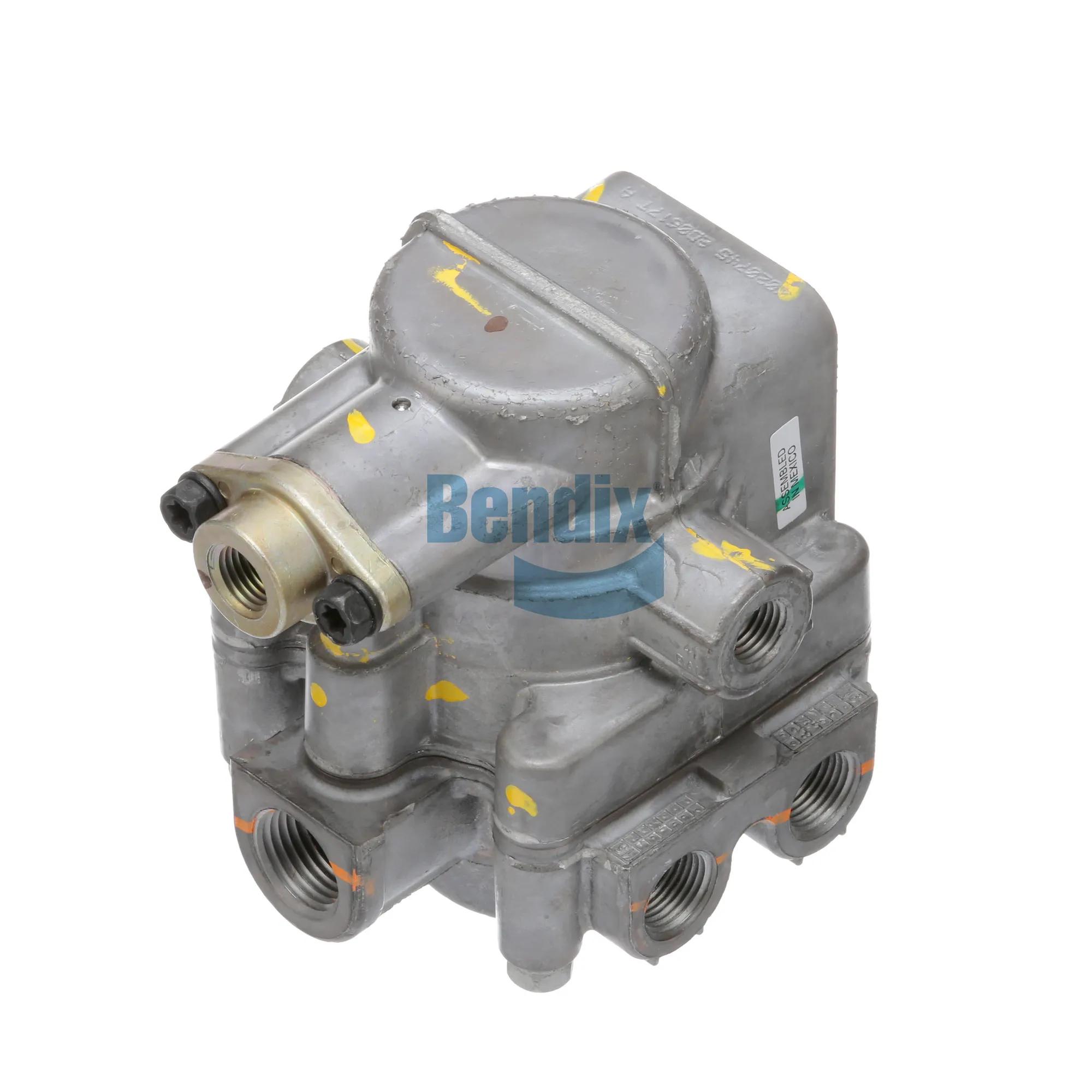

Bendix SR-7 New Spring Brake Modulating Valve with 1/2-14 NPT Inlet and Multiple 3/8-18 NPT Outlets
#BENK021562
Product Overview
Spring Brake Valve, NPT Inlet, NPT Outlet, 1/2-14 Inlet, 3/8-18 x 3/8-18 x 3/8-18 x 3/8-18 Outlet, FMVSS 121 Regulatory Compliance, -40 °F Temperature Rating, 124 mm Height, 105 mm Length, 113 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Meets or Exceeds V.M.R.S. # 13-010-048 Requirements.
- Bendix Has Been a Trusted Manufacturer & Supplier to Most Truck & Trailer O.E.M.s for Decades.
Specifications
| Notes supplémentaires | 1/4" NPT Park Control Port. |
| Air Valve Control Port Size | 1/4 PTC |
| Balance Port Size | 1/4 PTC |
| Bendix Style Spring Brake Valve Reservoir Port Size | Aucun |
| Delivery Port (in.) (1) | 3/8 NPT |
| Model | SR-7 |
| New or Remanufactured | Neuf |
| Package Contents | (1) Spring Brake Valve Per Box |
| Park Control Port (in.) | 1/4 NPT |
| Reservoir Trip Pressure | Aucun |
| Supply Port (in.) (1) | 1/2 NPT |
| Tractor Control Port Size | (1) 1/4 po NPT |
| Weight | 2.82 lbs (1.28 kg) |
Interchanges & Equivalent parts:
| BANK021562 |
| BW K021562 |
| BW K021562 |
| BXK021562 |
| K021562BXW |
| 801570 |
| BENK021562 |
| 20QE4192A |
| 21116666 |
| 745-K021562 |
| TWDBENK021562 |
| 2111666 |
