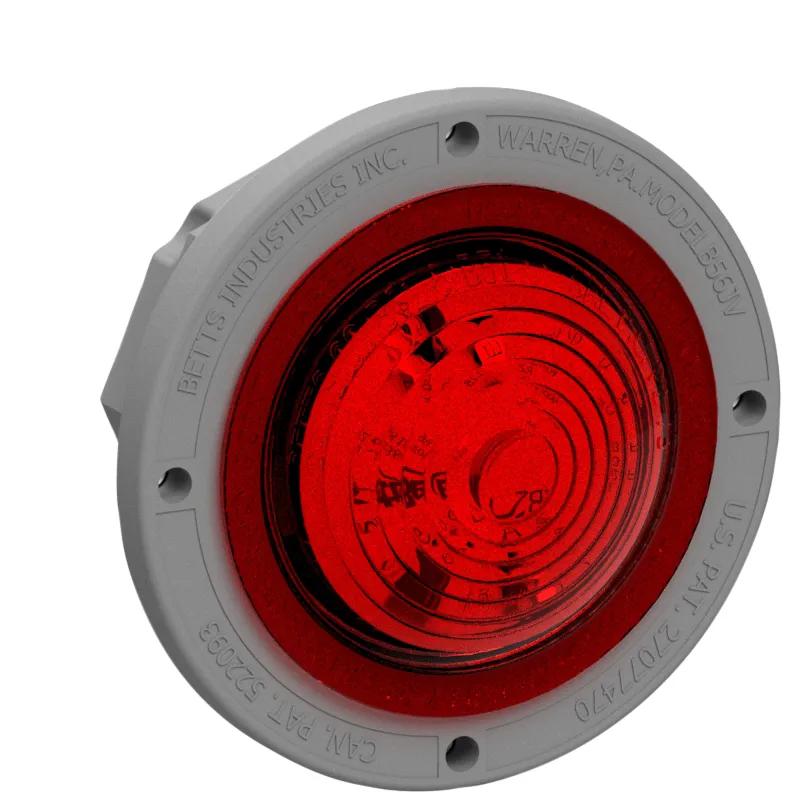

Betts Industries Clearance/Marker Lamp, LED Bulb, Red Lens, 21.3 mA at 12 V, 10.7 mA at 24 V
Product Overview
The 56 series assemblies include a Lite Ranger™ LED lamp insert mated to a 56 series housing. The housing is made from reinforced PBT engineered thermoplastic for high strength and impact resistance and offers unsurpassed protection to the lamp assembly. The exclusive Snap Seal™ O-ring locks out moisture and corrosion while providing convenient access to the inside of the housing. The spacious 56 series housing, which also functions as a junction box for the wiring and plug connections, requires a 3 in diameter mounting hole with four flange screws. A gray housing is standard but black is also available. The Lite Ranger™ LED lamp insert is a robust, fully sealed unit made from impact resistant polycarbonate plastic.Clearance/Marker Lamp, LED Bulb, Red Lens, 21.3 mA at 12 V, 10.7 mA at 24 V, Standards: FMVSS108 (49CFR§571.108), 12 VDC/24 VDC
Features & Benefits
- Shallow lens with optics, single LED
- 56-series gray housing
- Designed to meet all FMVSS 108 requirements (49CFR§571.108)
- SAE DOT lighting codes: P2PC
- Supports system voltages of 12 VDC and 24 VDC
- Reverse polarity protected
- Requires a 3 in mounting hole with four flange screws or rivets
- Gray PBT housing standard (black is available)
- Pigtail with multiple connector options or blunt cut cable connections
- Covered by Betts’ 5 yr limited warranty
Specifications
| Bulb Type | LED |
| Lens Color | Red |
| Standards | FMVSS108 (49CFR§571.108) |
| Voltage Rating | 12 VDC/24 VDC |
| Current Rating | 21.3 mA at 12 V, 10.7 mA at 24 V |
| Manufacturer Part Number | 60MRSG |
| Product Category | Clearance/Marker Lamp |
