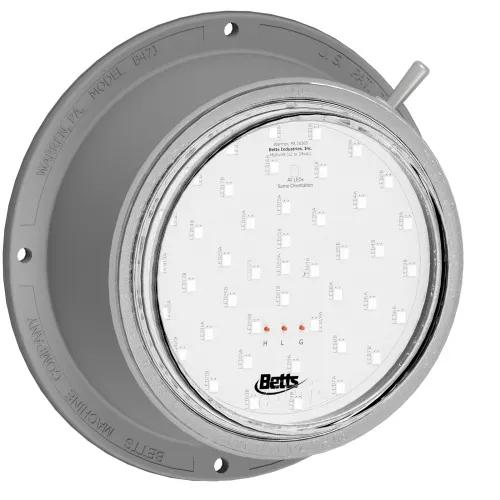

Betts Industries Cabinet/Meter & Dome Lamp, Shallow, Pigtail Connection, 44 LED Lamp, PBT, Gray Housing, 505 mA at 12 V, 252 mA at 24 V
#BET470213
Product Overview
The 47 series assemblies include a Lite Ranger™ LED lamp insert installed in a 47 series housing. The housing is made from high-strength reinforced PBT engineered thermoplastic that provides impact and UV resistance. The exclusive Snap Seal™ o-ring locks out moisture to prevent corrosion while providing convenient access to the inside of the housing. The spacious 47 series housing can also function as a junction box for wiring and plug connections. The Lite Ranger™ LED lamp assembly is a robust, fully sealed unit made from impact resistant polycarbonate plastic.Cabinet/Meter & Dome Lamp, Shallow, Pigtail Connection, 44 LED Lamp, PBT, Gray Housing, 505 mA at 12 V, 252 mA at 24 V
Features & Benefits
- Designed to meet FMVSS 108 requirements (49CFR§571.108)
- Supports system voltages of 12 VDC and 24 VDC
- Reverse polarity protected
- Surface mount with four flange screws or rivets
- Gray PBT housing standard (black is available)
- Pigtail with multiple connector options or blunt cut cable connections
- Covered by betts 5 yr limited warranty
Specifications
| Connection Type | Fil volant |
| Housing Color | Gris |
| Lamp Type | 44 DEL |
| Material | PBT |
| Type | À profil bas |
| Current Rating | 505 mA à 12 V, 252 mA à 24 V |
| Manufacturer Part Number | 470213 |
| Product Category | Cabinet/Meter & Dome Lamp |
