Boyau Hydraulique

#GAT70256

Sommaire du produit

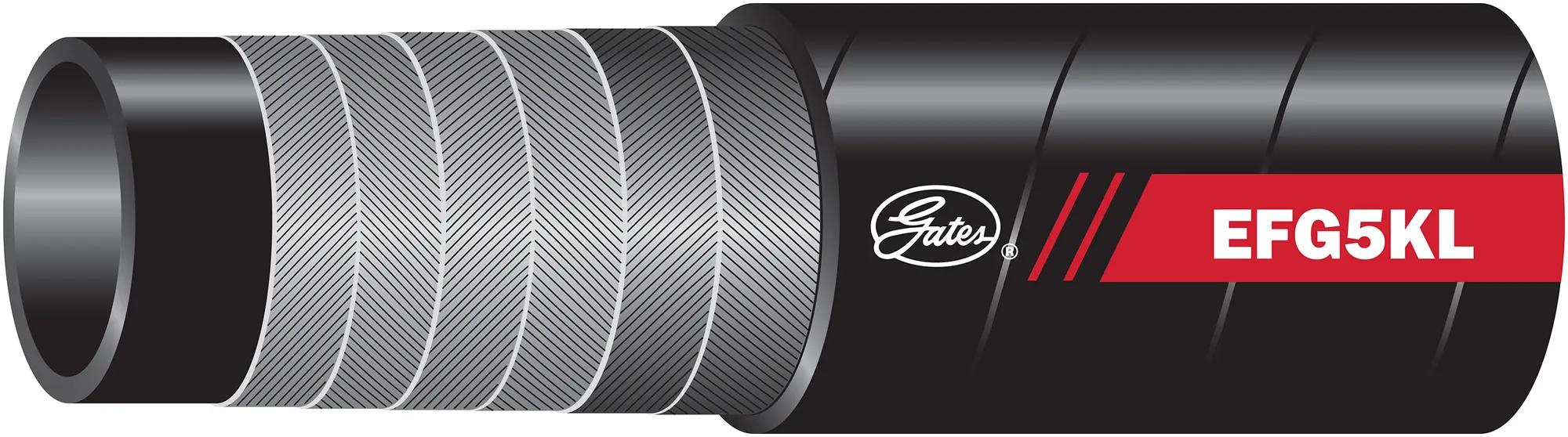

The EFG5KL low-temp hose is recommended for extremely high-pressure hydraulic applications to provide greater performance, flexibility, and easier routing and plumbing for mobile and stationary hydraulic platforms in very low temperature environments. It is compatible with biodegradable hydraulic fluids like polyester, polyglycol, and vegetable oil, as well as standard petroleum-based fluids.

Caractéristiques et avantages

Provides greater performance, flexibility, and easier routing for mobile and stationary hydraulic platforms in very low temperatures, and is resistant to cover cracking at low temperature and with a tight bend radius.

Compatible with biodegradable hydraulic fluids and standard petroleum-based fluids.

Spécifications

Pression d'éclatement	20000 psi
Couleur	Black
Matériau du couvercle	Polychloroprene
Diamètre intérieur	0.75 in
Longueur	30 m
Diamètre extérieur	1.24 in
Renforcement	4-Spiral, Wire
CUP	770075600831
Poids	0.97 lbs
Rayon de courbure minimal	4.8 in
Pression nominale	5000 psi
Standards	EN 856 4SP, ISO 3862 R13, SAE 100R13
Température nominale	-70 to 212 °F
Matériau du tube	Nitrile
Numéro de référence de fabricant	70256
Catégorie de produit	Spiral Wire Hose
Quantité	100

Interchanges et pièces équivalentes:

04029715

70256

12EFG5KLXCTN

46510020
