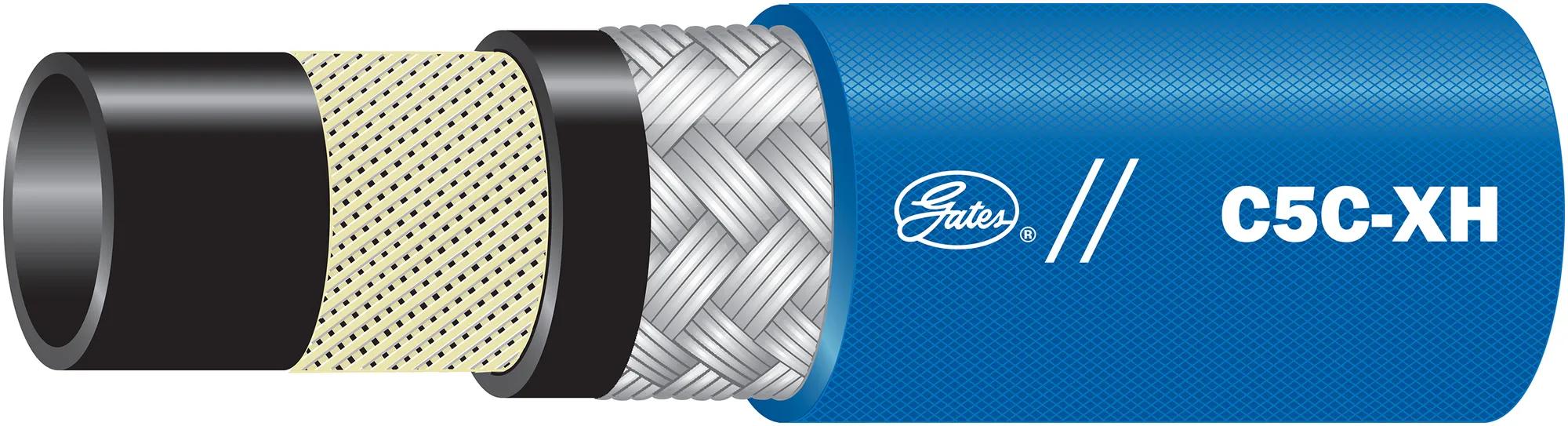

Boyau Hydraulique

#GAT70994

Sommaire du produit

This hydraulic hose is designed for high-temperature lube oil lines in on-highway trucks and buses, as well as off-road construction and agricultural vehicles. It is recommended for high-temperature petroleum-based or phosphate ester fluids, turbocharger oil supply, and hot lube oil lines. Meets the requirements of SAE 100R5 for hydraulic applications and SAE 1405 for hot oil circulation.

Caractéristiques et avantages

Recommended for extremely high-temperature petroleum-based or phosphate ester fluids, turbocharger oil supply, and hot lube oil lines.

Recommended couplings: C5 field attachable couplings (-6, -16 and -20), C5X field attachable couplings (-5, -8 and -12), GlobalSpiral™ couplings (depending on size), MegaCrimp™ couplings (depending on size).

Acceptable for use with oil and air for maximum application flexibility, including air brake applications meeting DOT FMVSS-106-74 type aII and SAE J1402 type aII standards (sizes -4 to -12). Sizes -5, -6, -8, -16 and -20 are validated with MegaCrimp™, and sizes -10 and -12 are validated with GlobalSpiral™.

Spécifications

Pression d'éclatement	8000 psi
Couleur	Blue
Matériau du couvercle	Polyester, Textile Braid
Diamètre intérieur	0.406 in
Longueur	101 m
Diamètre extérieur	0.77 in
Renforcement	1-Braid, Wire
CUP	5414465347863
Poids	0.25 lbs
Rayon de courbure minimal	4.6 in
Pression nominale	2000 psi
Standards	SAE J1402 All, SAE 30R2, DOT FMVSS-106-74 type aII, SAE 100R5, SAE 1405
Température nominale	-40 to 302 °F
Matériau du tube	CPE
Numéro de référence de fabricant	70994
Catégorie de produit	Hydraulic Hose
Quantité	330

Interchanges et pièces équivalentes:

04030395

70994

8C5CXHXREEL

36580153
