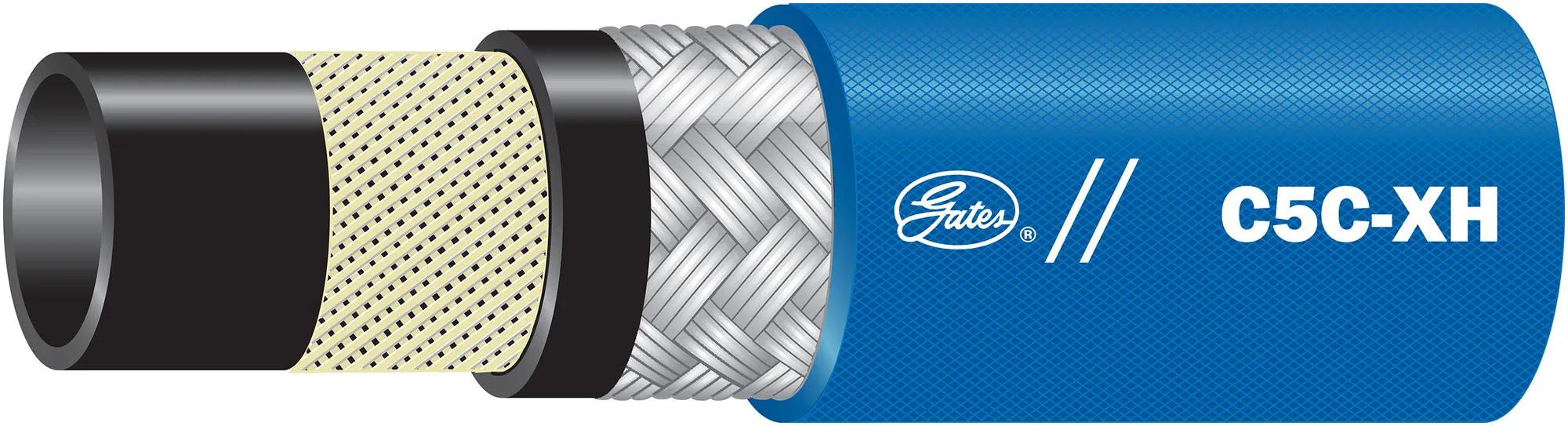

Boyau Hydraulique

#GAT70996

Sommaire du produit

High-temperature lube oil lines for on-highway truck and bus, off-road construction and agricultural vehicles. Recommended for high temperature petroleum based or phosphate ester fluids, turbocharger oil supply and hot lube oil lines. Meets the requirements of SAE 100R5 for hydraulic applications and SAE 1405 for hot oil circulation.

Caractéristiques et avantages

Acceptable for use with oil and air for maximum application flexibility.

Recommended for extremely high-temperature applications including turbocharger oil supply and hot lube oil lines; compatible with both petroleum and phosphate ester fluids and has passed the tube fuel resistance requirements of SAE 30R2.

Recommended couplings: C5 field attachable couplings (-6, -16 and -20), C5X field attachable couplings (-5, -8 and -12), GlobalSpiral™ couplings (depending on size), MegaCrimp™ couplings (depending on size).

DOT FMVSS-106-74 type aII and SAE J1402 type aII for air brake applications (-4 to -12); [-5, -6, -8, -16 and -20 validated with MegaCrimp™-10, -12 with GlobalSpiral™].

Spécifications

Pression d'éclatement	6000 psi
Couleur	Blue
Matériau du couvercle	Polyester, Textile Braid
Diamètre intérieur	0.625 in
Longueur	67 m
Diamètre extérieur	1.08 in
Renforcement	1-Braid, Wire
CUP	770075567639
Poids	0.44 lbs
Rayon de courbure minimal	6.5 in
Pression nominale	1500 psi
Standards	SAE J1402 All, SAE 100R5, SAE 1405, SAE 30R2, DOT FMVSS-106-74 type aII
Température nominale	-40 to 302 °F
Matériau du tube	CPE
Numéro de référence de fabricant	70996
Catégorie de produit	Hydraulic Hose
Quantité	220

Interchanges et pièces équivalentes:

04030397

70996

12C5CXHXREEL

36580155
