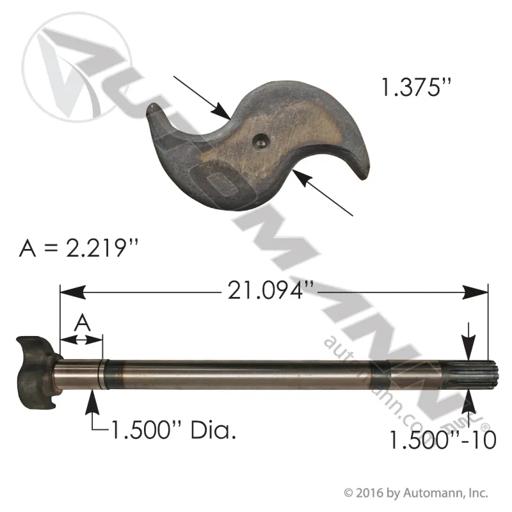

Brake Camshaft, Splines: 1-1/2 in - 10, L: 21-3/32 in
#ROC2210A6319
Features & Benefits
- For slight variations in length. extra spacer washers may be required.
- Q Plus?Ö cams can be used to replace the standard Q style cams; however. a Q style cam cannot be used to replace a Q Plus?Ö cam.
Specifications
| Brake Camshaft Head Size | 1-3/8 in (3.5 cm) |
| Brake Camshaft Dimension B | 2-7/32 in (5.64 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q |
| Bushing Journal Length (in.) | 2-1/2 in (6.35 cm) |
| Camshaft Length | 21-3/32 in (53.58 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 21 to 21.99 in |
Interchanges & Equivalent parts:
| 04-111 |
| 04-572112 |
| 12410210301 |
| 13CS3344 |
| 16400 |
| 17-583 |
| 202100-213L |
| 202100-215-LH |
| 202100215L |
| 2210-A-6319S |
| 2210-U-2491 |
| 2210A6319-RI |
| 305680 |
| 54003L |
| 700-17-239 |
| 72418 |
| 8235-2210A6319 |
| 85111974 |
| 9628 2210A63 19 |
| A8299 |
| ATI2210A6319 |
| B1691-17 |
| C688L |
| CS41514 |
| CS685L |
| E-685LH |
| E685 |
| H-10514L |
| H10514L |
| L225 |
| M-567L |
| M16WK102-19 |
| M16WK103-19 |
| M16WK111-6 |
| M16WK1116 |
| NL1320 |
| TDA 2210A6319 |
| TDA2210A6319 |
| TP549 |
