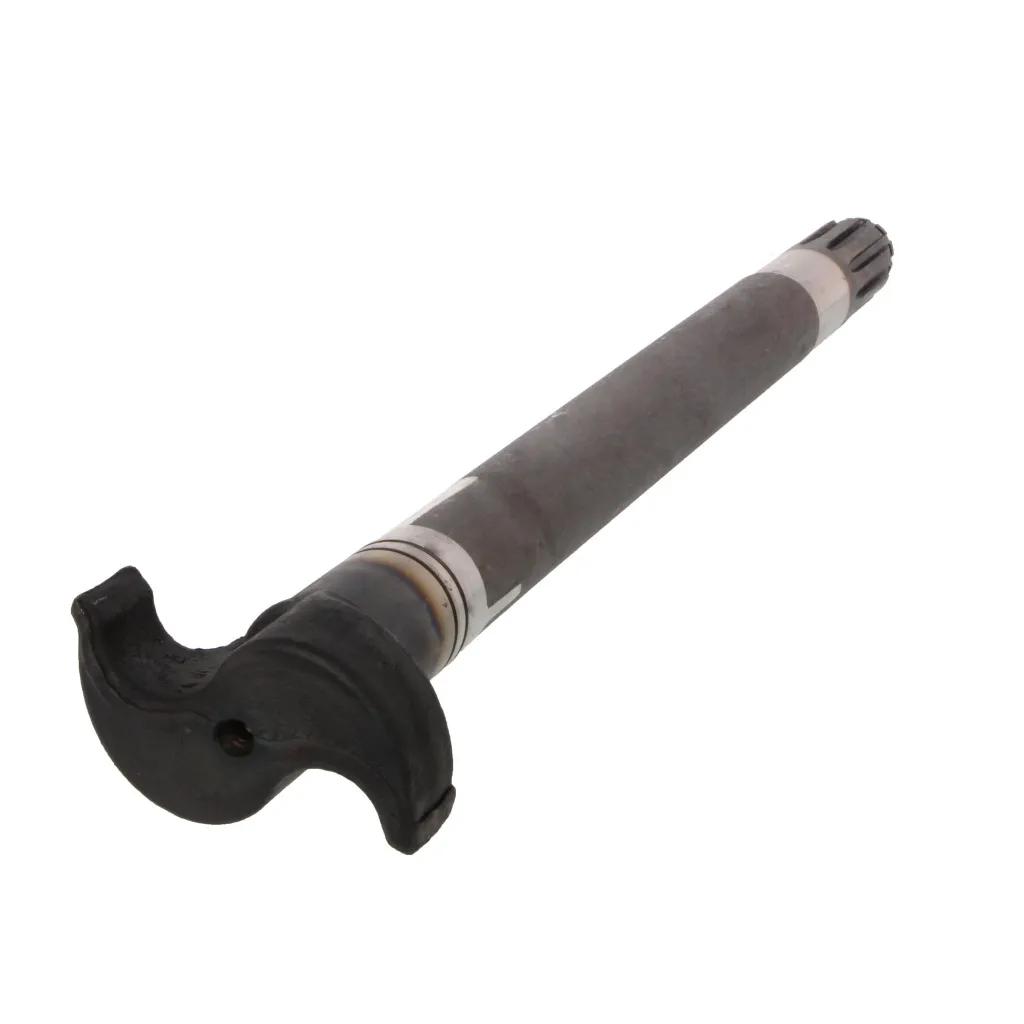

Brake Camshaft, Splines: 1-1/2 in - 10
#ROCR607070
Features & Benefits
- For slight variations in length. extra spacer washers may be required.
- Q Plus?Ö cams can be used to replace the standard Q style cams; however. a Q style cam cannot be used to replace a Q Plus?Ö cam.
Specifications
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Type de frein | Q Plus |
| Bushing Journal Length (in.) | 1-61/64 po (4,97 cm) |
| Camshaft Length | 20-3/8 po (51,76 cm) |
| OE Mfg. | Mériteur |
| Right or Left Side | Gauche |
| Spline Diameter | 1-1/2 po (3,81 cm) |
| Spline Diameter-Spline Count | 1-1/2 po - 10 |
| Splines | 10 |
| Length Range | 20 à 20,99 po |
Interchanges & Equivalent parts:
| 04-235 |
| 17-633 |
| 2210W4183 |
| 4235 |
| 72415 |
| 04-882042 |
| 4882042 |
| 54051L |
| 8235-R607070 |
| 9628 R607070 |
| A8279 |
| ATIR607070 |
| C449AL |
| C449L |
| CS2449AL |
| CS41532 |
| E-2449 |
| E-2449A |
| H-10532L |
| H10532L |
| HQ10532L |
| L-1656 |
| M-994L |
| R607070-RI |
| TDA R607070 |
| TDAR607070 |
| TP3050 |
