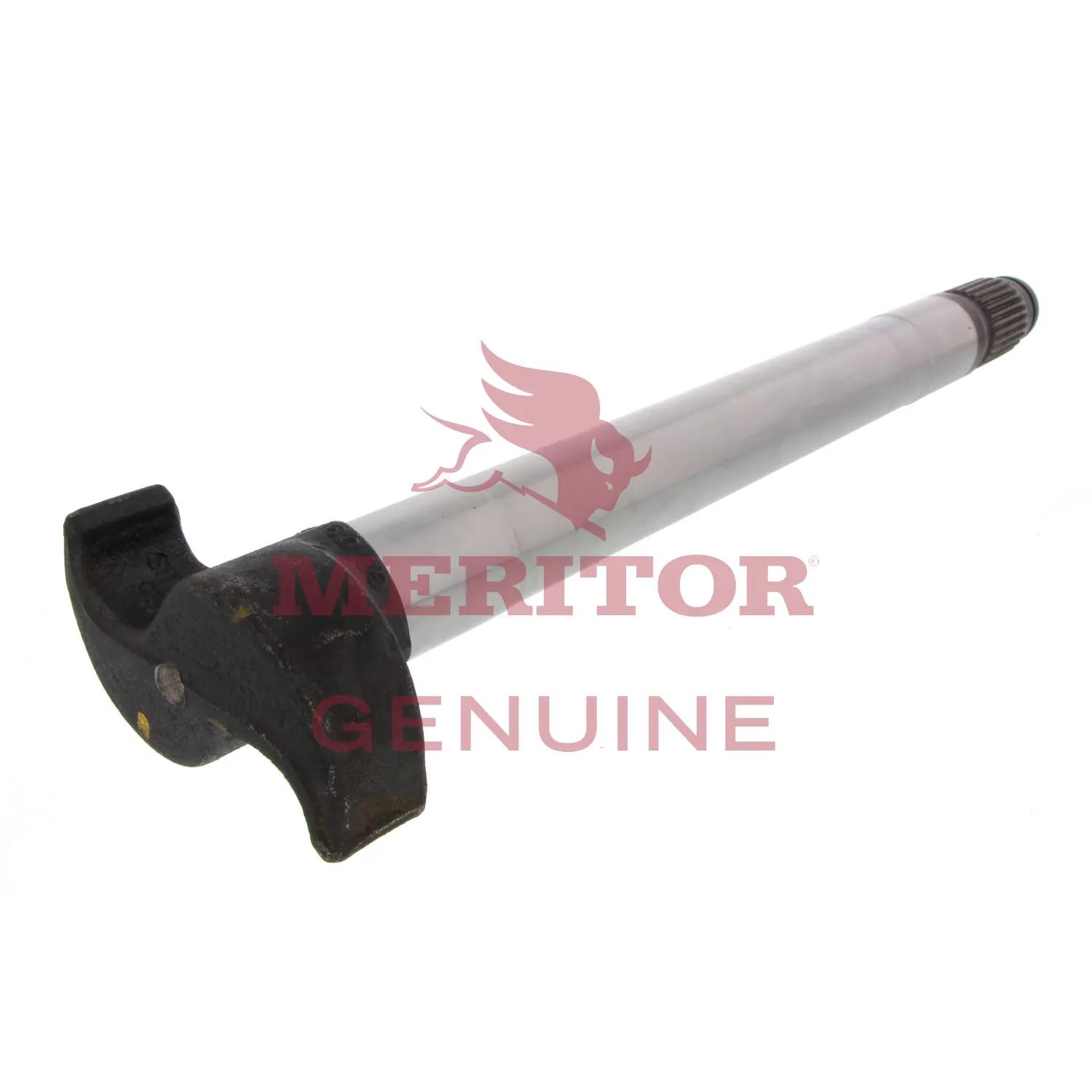

Brake Camshaft, Splines: 1-1/2 in - 28
#ROC2210S7689
Features & Benefits
- Ensures optimal brake shoe movement
- LH designation for easy identification
- Ensures smooth operation during braking
- Left-hand orientation ensures proper fit
- Precision-engineered for reliable braking
- Designed to withstand high braking forces
- Enhances overall braking system efficiency
- Durable material for long-lasting performance
Specifications
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Brake Type | Q Plus |
| Bushing Journal Length (in.) | 1-49/64 po (4,49 cm) |
| Camshaft Length | 15-45/64 po (39,89 cm) |
| OE Mfg. | Mériteur |
| Right or Left Side | Gauche |
| Spline Diameter | 1-1/2 po (3,81 cm) |
| Spline Diameter-Spline Count | 1-1/2 po - 28 |
| Splines | 28 |
| Length Range | 15 à 15,99 po |
Interchanges & Equivalent parts:
| CAMCAM206L |
| 04-481572 |
| 18-543 |
| 2210-D-5672 |
| 2210-L-7006 |
| 2210A7281 |
| 2210H5494 |
| 2210L5394 |
| 2210L5394S |
| 2210S7689-RI |
| 8235-2210S7689 |
| ATI2210S7689 |
| C683L |
| CS9683L |
| E-9085 |
| H-10778L |
| H10778L |
| HQ-10342L |
| HQ10342L |
| L-3331 |
| L-3507 |
| M-4008L |
| RW2210S7689 |
| TDA 2210S7689 |
| TDA2210S7689 |
