Brake Drum, 11.25 in Bolt Circle Dia, 0.78 in Bolt Hole Diameter, 16.5 x 7 in Brake, 7.63 in Brake Surface Width
#MZB151.6705
Product Overview

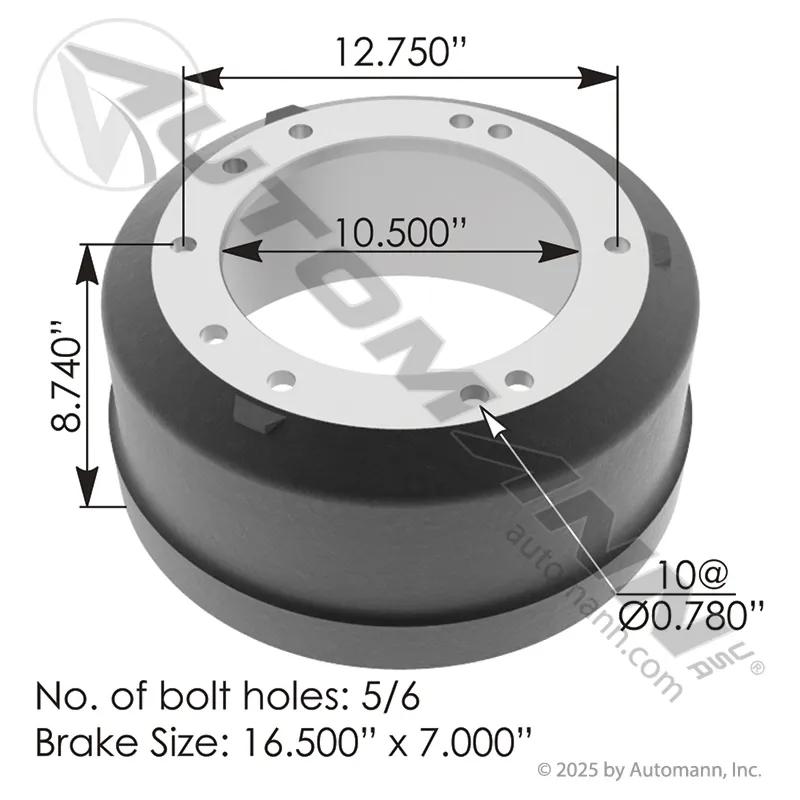

Brake Drum, 11.25 in Bolt Circle Dia, 0.78 in Bolt Hole Diameter, 16.5 x 7 in Brake, 16.5 in Brake Surface Dia, 7.63 in Brake Surface Width, 8.74 in Height, 5 and 6 Holes, 10.5 in Pilot Dia, For Spoke Wheel, Universal
Features & Benefits
- Pallet qty: 16
Specifications
| Application | Spoke Wheel, Universal |
| Back Plate Thickness | 9/16 in (1.44 cm) |
| Bolt Circle Diameter | 11.25 in |
| Bolt Hole (Number) | 6 |
| Brake Size | 16.5 x 7 in |
| Brake Surface Diameter | 16.5 in |
| Brake Surface Width | 7.63 in |
| Drum Mounting | Inboard |
| Drum Type | AAA |
| Dust Shield Recess Depth (C) | 1 in (2.54 cm) |
| Dust Shield Recess Diameter (B) | 17-5/8 in (44.77 cm) |
| Height | 8.74 in |
| Hole Size | 25/32 in (1.99 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 8-11/16 in (22.07 cm) |
| Overall Diameter | 18-7/8 in (47.95 cm) |
| Pilot Diameter | 10.5 in |
| Sidewall Offset (N) | 1-13/64 in (3.05 cm) |
| Squealer Band Width (K) | 2-3/16 in (5.56 cm) |
| VMRS Code | 013-017-006 |
| Weight | 123.95 lb |
| Width | 7 in (17.78 cm) |
| Bolt Hole Diameter | 0.78 in |
| Number of Holes | 5 and 6 |
| Manufacturer Part Number | 151.6705 |
| Product Category | Brake Drum |
Interchanges & Equivalent parts:
| HD10 |
| 03123430002 |
| 151.6705 |
