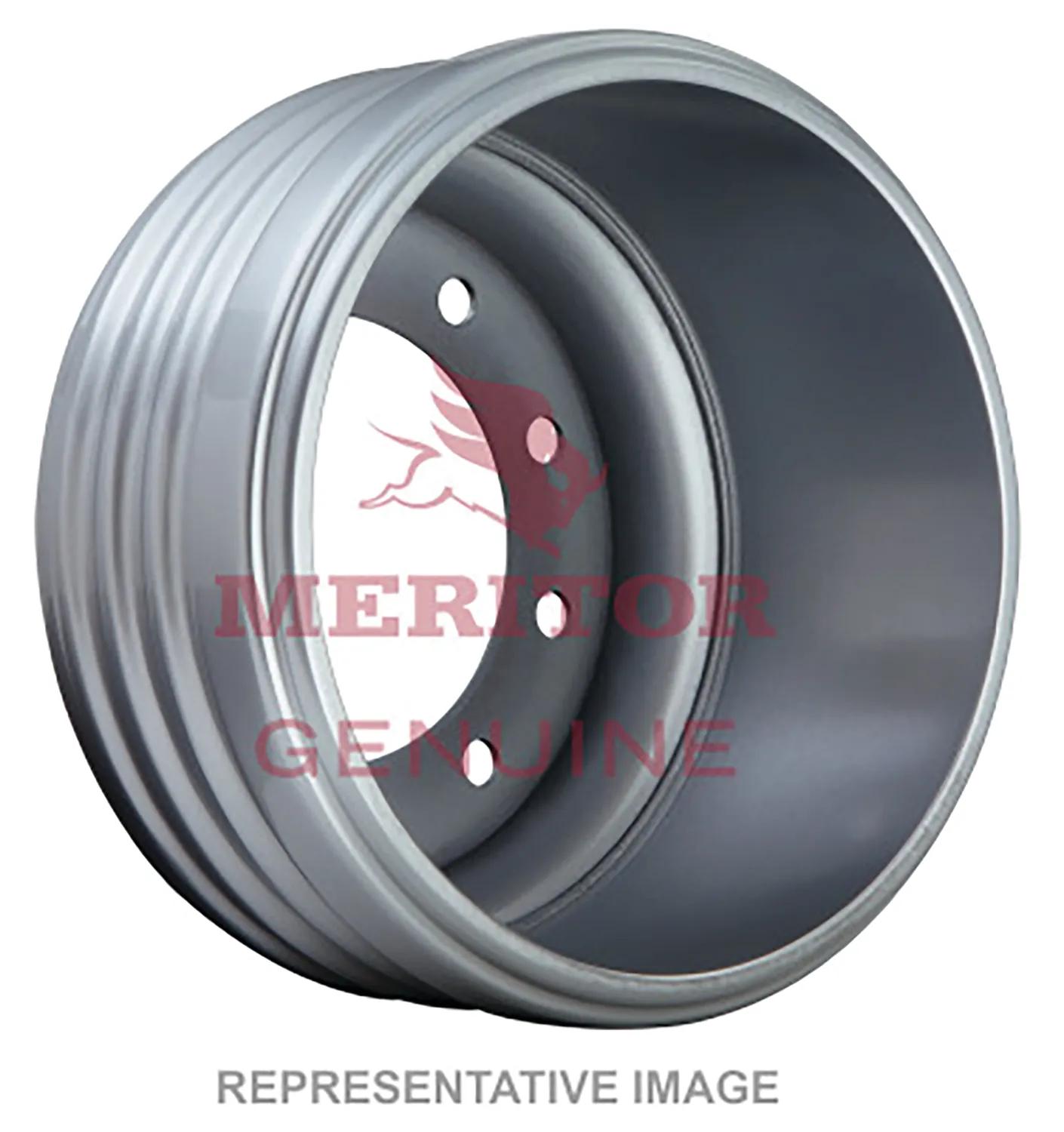

Brake Drum, 15 in x 4 in, 10 holes, (64,61 lb)
#ROC53123542002
Features & Benefits
- Provides consistent braking performance under heavy loads
- Precisely machined for smooth and reliable braking operation
- Designed to OE specifications for a perfect fit and function
- Minimizes brake fade for increased safety during sudden stops
- Durable cast iron construction ensures long-lasting performance
- Resistant to heat, ideal for high-temperature braking conditions
- Reduces noise and vibrations for a comfortable driving experience
- Corrosion-resistant coating for enhanced longevity and aesthetics
Specifications
| Application | Essieu avant de camion, Transit |
| Capacité de l'essieu (lb) | 29 101 kg (13 200 lb) |
| Équilibré ou déséquilibré | Balancé |
| Diamètre du cercle de perçage | 11-1/4 po (28,58 cm) |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 4 po (10,16 cm) |
| Dimension du frein | 15 po x 4 po |
| Diamètre de la surface du frein | 15 po (38,1 cm) |
| Largeur de la surface de freinage | 4-49/64 po (12,11 cm) |
| Largeur de cloison | 4 po (10,16 cm) |
| Profondeur | 9-3/16 po (23,34 cm) |
| Montage du tambour | Extérieur |
| Type de montage du tambour | Extérieur |
| Drum Type | BEA |
| Dust Shield Recess Depth (C) | 51/64 po (2,03 cm) |
| Dust Shield Recess Diameter (B) | 16 po (40,64 cm) |
| Flange Thickness | 1/2 po (1,27 cm) |
| Height | 12 po (30,48 cm) |
| Hole Size | 1-11/32 po (3,42 cm) |
| Maximum Diameter | 15-1/8 po (38,42 cm) |
| Overall Depth | 8-57/64 po (22,59 cm) |
| Overall Diameter | 17-5/16 po (43,98 cm) |
| Pilot Diameter | 8-25/32 po (22,31 cm) |
| Sidewall Offset (N) | 4-19/64 po (10,92 cm) |
| Squealer Band Width (K) | 1-37/64 po (4,01 cm) |
| Type | X30 Balancé |
| VMRS Code | 013-017-006 |
| Weight | 61 à 65 lb |
| Weight (lbs) | 29,31 kg (64,61 lb) |
| Wheel Type | Disque |
| Width | 18 po (45,72 cm) |
Interchanges & Equivalent parts:
| 10009920 |
| 3800X |
| 65545B |
| 9001X |
| G1213X |
| X61225B |
| 17QH4115 |
| 17QJ4115 |
| 3098922 |
| 53-123542 |
| 53123542002-RI |
| MOT89870BK |
| 69870B |
| 8235-53123542002 |
| ATI53123542002 |
| DW123542 |
| GUN 9001X |
| HWI 89870BK |
| TDA 53 123542 002 |
| TDA 53123542 |
| TDA53123542002 |
| TWD53123542002 |
| 491-01594 |
| ABP N42A154B |
| GUN3800X |
| 123542 |
| 3726X |
| ABPN42A154B |
| 70589 |
| 1515403BA |
| 61528B |
