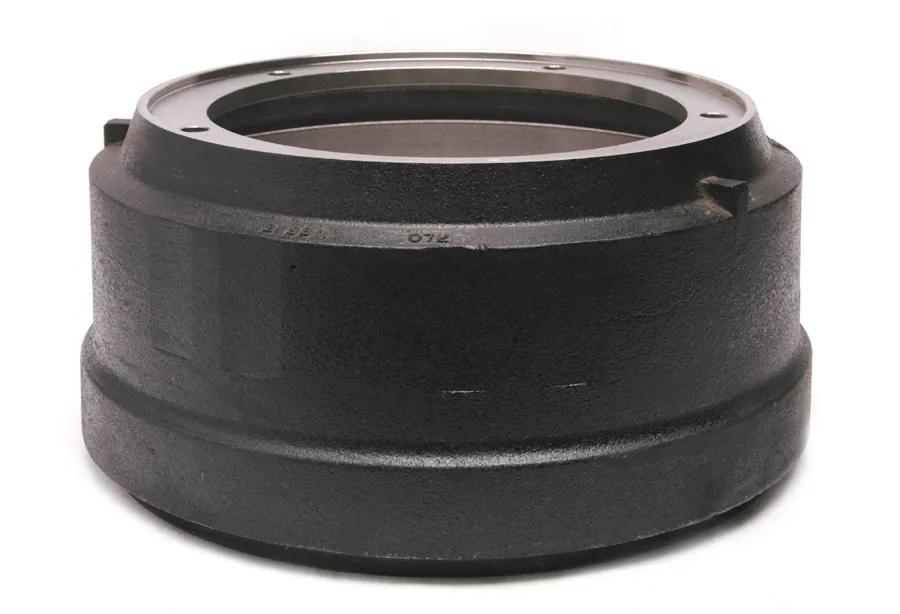

Brake Drum, 16-1/2 in x 5 in, 10 holes, (96 lb)
#GUN3598X
Product Overview
This 16.5 in x 5 in brake drum is designed for ball seat or hub-piloted applications. It features 10 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance in demanding conditions.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Épaisseur de la plaque arrière | 1/2 po |
| Diamètre du cercle de perçage | 11-1/4 po |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 5 po |
| Dimension du frein | 16-1/2 po x 5 po |
| Diamètre de la surface du frein | 16-1/2 po |
| Largeur de la surface de freinage | 5-13/32 po |
| Montage du tambour | Extérieur |
| Type de tambour | BDA |
| Profondeur d'encastrement du pare-poussière (C) | 13/16 po |
| Diamètre d'évidement du pare-poussière (B) | 17-3/8 po |
| Taille de l'orifice | 1-5/16 po |
| Diamètre maximum | 16-5/8 po |
| Remarques | Pour Ball Seat Or Hub Piloted Applications |
| Profondeur totale | 9-11/32 po |
| Diamètre total | 18-51/64 po |
| Emballage | Individuel / En vrac |
| Diamètre du pilote | 8-25/32 po (22,31 cm) |
| Décalage du flanc (N) | 3-15/16 po |
| Largeur de bande sonore (K) | 2-7/32 po |
| VMRS Code | 013-017-006 |
| Weight | 96 à 100 lb |
| Weight (lbs) | 43,55 kg (96 lb) |
| Wheel Type | Disque |
| Width | 5 po |
Interchanges & Equivalent parts:
| 10014756 |
| 90600B |
| 3598X-GJ |
| CM10041543 |
| GUN 3598X |
| GUN3598X |
| ZBR3598X |
