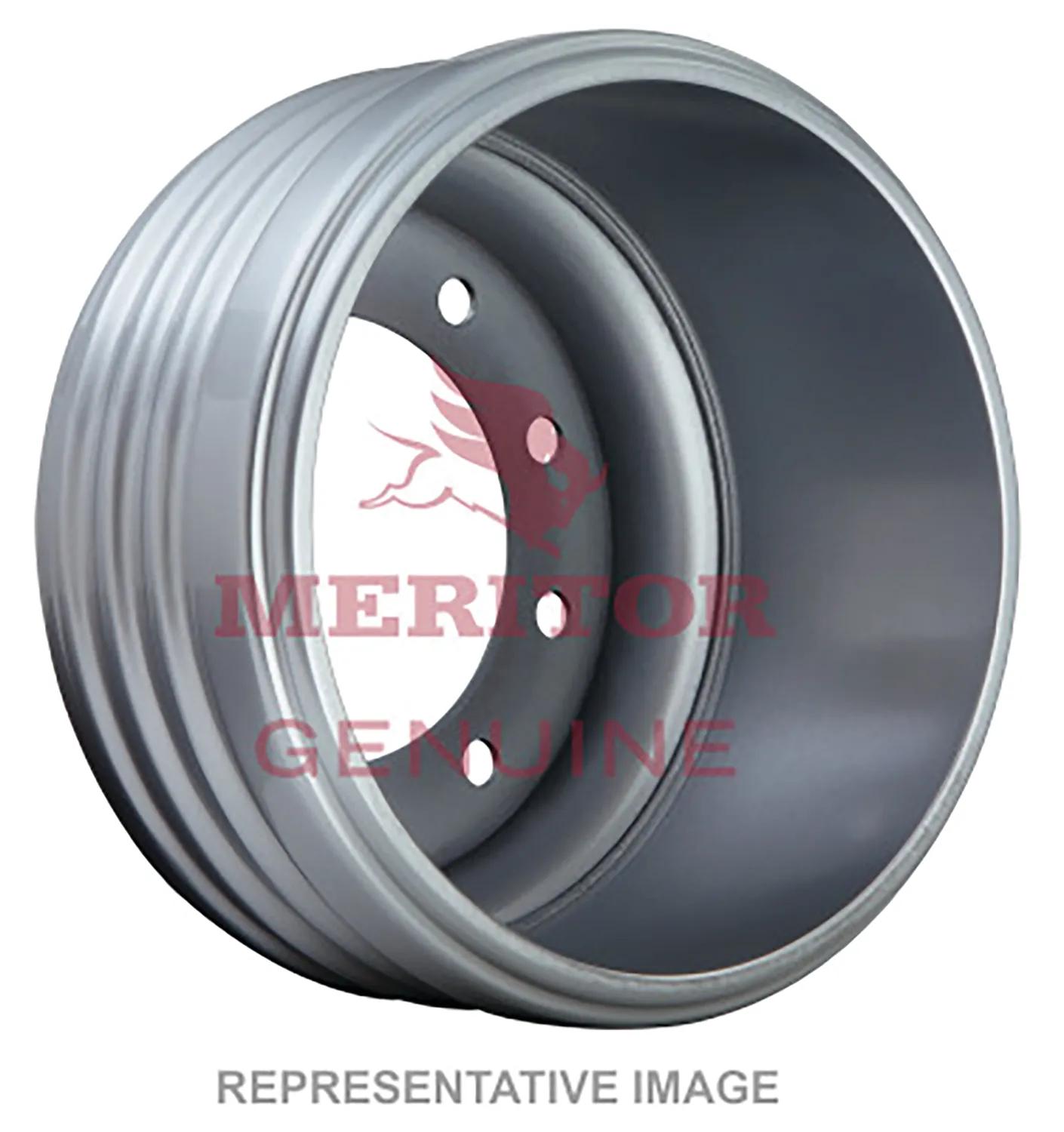

Tambour de frein, 16-1/2 po x 8-5/8 po, 10 holes, (103,32 lb)
#ROC53123544002
Features & Benefits
- Lightweight design generates 15%+ weight savings compared to standard cast drums
- Lighter. stronger design features one-piece outer shell with a fused cast iron brake liner
- Exceeds FMVSS-121 dynamometer specifications
- Designed. cast. and machined for optimal balance and performance
- Backed by a nationwide warranty and the best product support in the business
- Balance within practice per TMC RP608
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Application | Essieux arrière de camion, Essieu de remorques, Bus |
| Capacité de l'essieu (lb) | 50 707 kg (23 000 lb) |
| Épaisseur de la plaque arrière | 9/16 po (1,44 cm) |
| Diamètre du cercle de perçage | 11-1/4 po (28,58 cm) |
| Trou de boulon (nombre) | 10 |
| Largeur de segment de frein | 8-5/8 po (21,92 cm) |
| Dimension du frein | 16-1/2 po x 8-5/8 po |
| Diamètre de la surface du frein | 16-1/2 po (41,91 cm) |
| Largeur de la surface de freinage | 9-3/32 po (23,1 cm) |
| Largeur de cloison | 8-5/8 po (21,91 cm) |
| Profondeur | 10-31/64 po (26,63 cm) |
| Montage du tambour | Extérieur |
| Type de montage du tambour | Extérieur |
| Type de tambour | BDA |
| Profondeur d'encastrement du pare-poussière (C) | 51/64 po (2,03 cm) |
| Diamètre d'évidement du pare-poussière (B) | 17-3/8 po (44,14 cm) |
| Épaisseur de la bride | 5/8 po (1,59 cm) |
| Hauteur | 12 po (30,48 cm) |
| Taille de l'orifice | 1 po (2,54 cm) |
| Diamètre maximum | 16-5/8 po (42,23 cm) |
| Profondeur totale | 11-13/64 po (28,46 cm) |
| Diamètre total | 18-7/8 po (47,95 cm) |
| Diamètre du pilote | 8-25/32 po (22,31 cm) |
| Décalage du flanc (N) | 2-27/64 po (6,15 cm) |
| Largeur de bande sonore (K) | 2 po (5,08 cm) |
| Type | Coque en acier |
| Code VMRS | 013-017-006 |
| Poids | 101 à 105 lb |
| Poids (lb) | 47,42 kg (103,32 lb) |
| Type de roue | Disque |
| Largeur | 8-5/8 po (21,91 cm) |
Interchanges & Equivalent parts:
| 600026 |
| 80008-018 |
| 91812B |
| MWC600026 |
| ROC50123771002 |
| EUC53-123544-002 |
| DRM80008-018 |
| 53123544002 |
| 50123771002 |
| 20388938 |
| 53123544002-RI |
| 600026STM |
| ABP N42A1658625B |
| ATI53123544002 |
| DW123544 |
| HWI 91812B |
| TDA 53 123544 002 |
| TDA53123544002 |
| 53-123544-002 |
| 8235-53123544002 |
| 96854B |
| MER53123544002 |
| ABPN42A1658625B |
| 66854B |
| 3807A |
| 3807 |
| 107638 |
