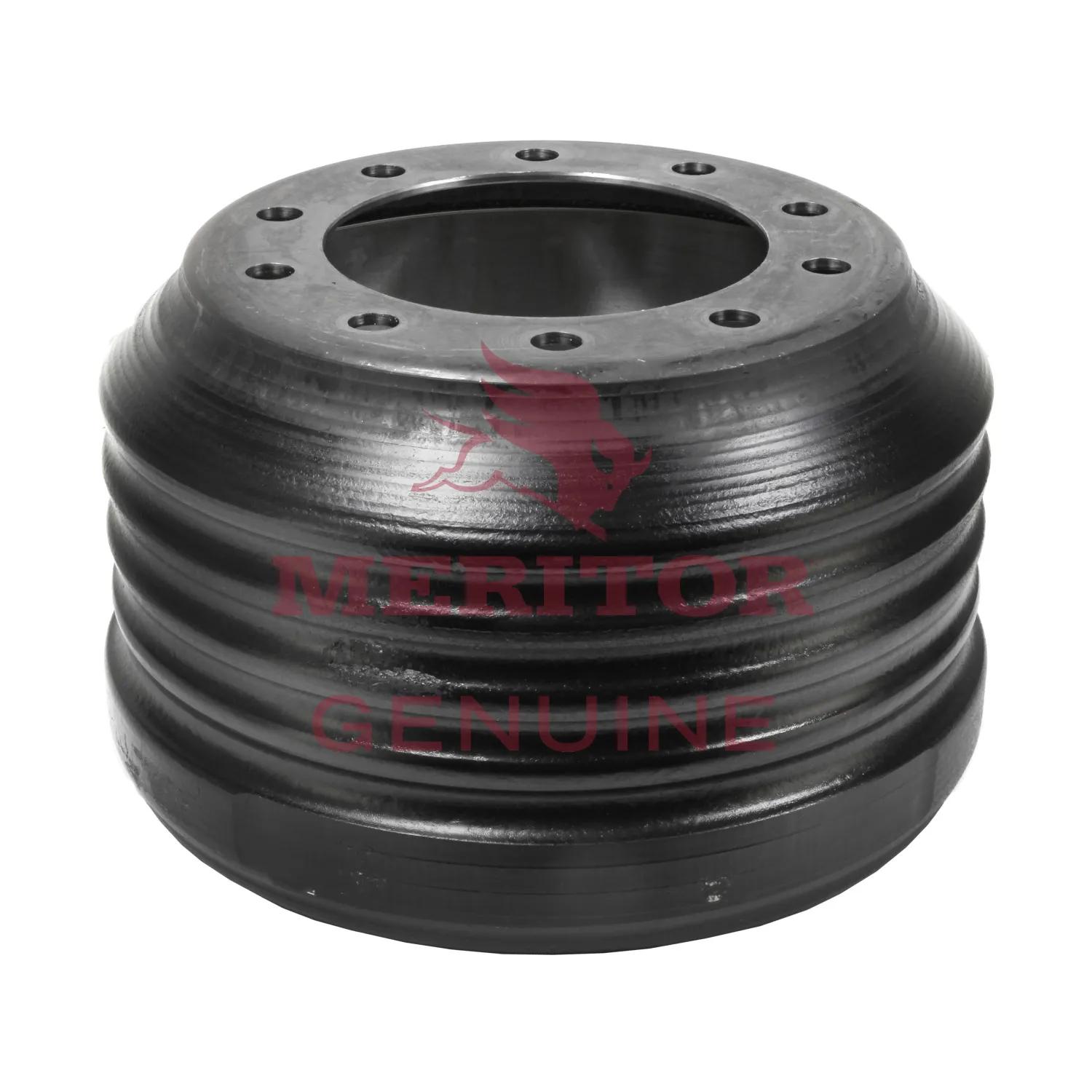

Brake Drum, 16-1/2 in x 8-5/8 in, 10 holes
#ROC53123771002
Caractéristiques et avantages
- Provides consistent braking performance under heavy loads
- Precisely machined for smooth and reliable braking operation
- Designed to OE specifications for a perfect fit and function
- Minimizes brake fade for increased safety during sudden stops
- Durable cast iron construction ensures long-lasting performance
- Resistant to heat, ideal for high-temperature braking conditions
- Reduces noise and vibrations for a comfortable driving experience
- Corrosion-resistant coating for enhanced longevity and aesthetics
Spécifications
| Application | Truck Rear Axles. Trailer Axles. Bus |
| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Back Plate Thickness | 9/16 in |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8-5/8 in |
| Brake Size | 16-1/2 in x 8-5/8 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 9-1/16 in |
| Bridge Width | 8-5/8 in |
| Depth | 10-31/64 in (26.63 cm) |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 51/64 in |
| Dust Shield Recess Diameter (B) | 17-3/8 in |
| Flange Thickness | 5/8 in |
| Height | 12 in |
| Hole Size | 1 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 11-5/32 in |
| Overall Diameter | 18-7/8 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 2-27/64 in |
| Squealer Band Width (K) | 2 in |
| Type | X30 Balanced |
| VMRS Code | 013-017-006 |
| Wheel Type | Disc |
| Width | 8-5/8 in |
Interchanges et pièces équivalentes:
| 151.68607BA-LW |
| 53-123771 |
| TDA 53 123771 002 |
| 600026STM |
| 77854BW |
| 3807 |
| 9019X |
| 600026 |
| 50123771002 |
| 10033314 |
| 1516700BA-LW |
| 91812B |
| 4098041C1 |
| 80008-018 |
| 77809BW |
