Brake Drum - 16.5 in. x 7 in. Brake Size - 10 Bolt Holes - For Truck & Trailer Application
#DRM60000-018
Product Overview
This 16.5 in x 7 in brake drum is manufactured to meet or exceed OEM specifications. It features a 3D-modeled optimized design for better braking power, reduced weight, and shorter stopping distances.
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- 3D Modeled Optimized Design - Generates 25% more static torque which means more breaking power with less brake chamber pressure.
- 3D Modeled Optimized Design - Better stiffness/rigidity to weight ratio results in shorter stopping distances.
- Pocketed Mounting Flange - Weight reduction in a non-critical area results in a lower weight drum, meaning more payload and fuel savings.
- Machined Balanced
- 1 in. Precision Drilled Holes - Mounts up cleanly, making installation easier and faster.
- 100% CNC machined - Higher Precision means more reliable performance.
Specifications
| Application | Truck Rear Axles, Trailer Axles |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-9/16 in (19.2 cm) |
| Flange Thickness | 0.48 in. |
| Hole Size | 1 in (2.54 cm) |
| Overall Depth | 10-5/8 in (27 cm) |
| Pilot Diameter | 8-25/32 in (22.3 cm) |
| VMRS Code | 013-017-006 |
| Weight | 106 to 110 lbs |
| Weight (lbs) | 49.57 kg (108 lb) |
Interchanges & Equivalent parts:

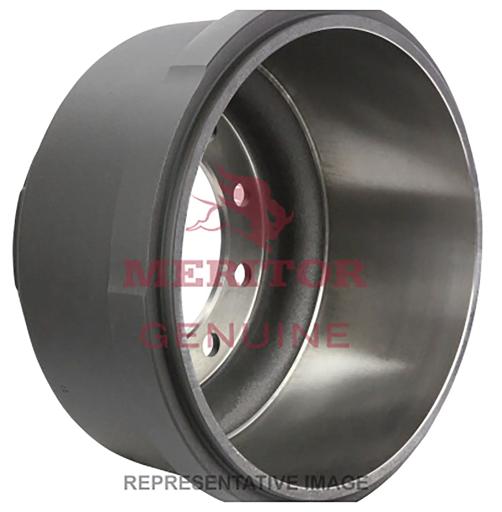

| 03123788002 |

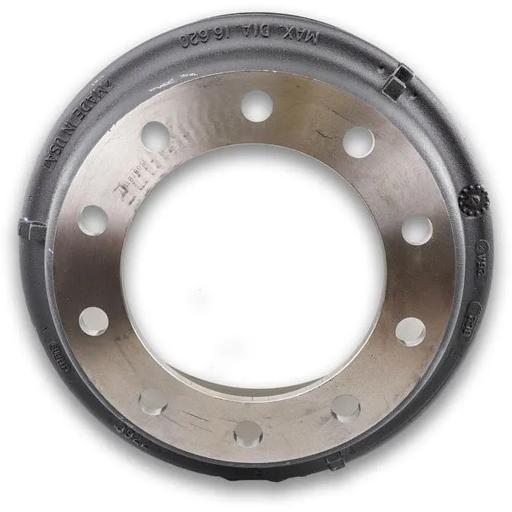

| 3922 |

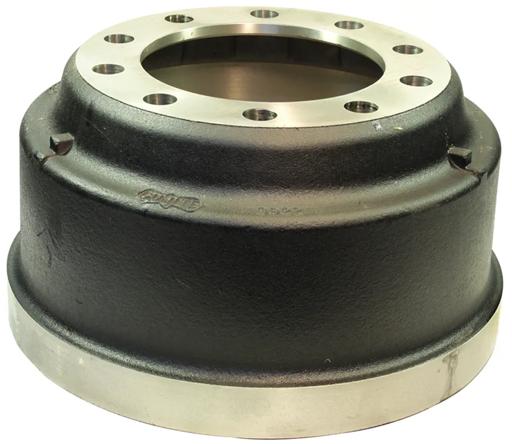

| 3922X |

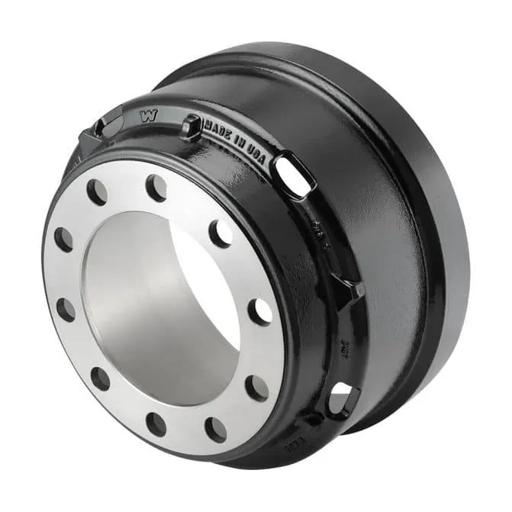

| 56864B |
| X60600 |

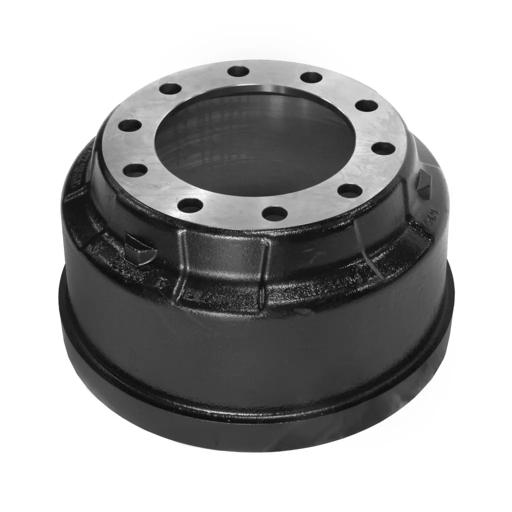

| 85123788002 |
| 60000-018 |
