Brake Drum, ABA Cast, 16-1/2 in x 7 in, 10 Holes, Inboard Mount
#MZB151.6706
Product Overview

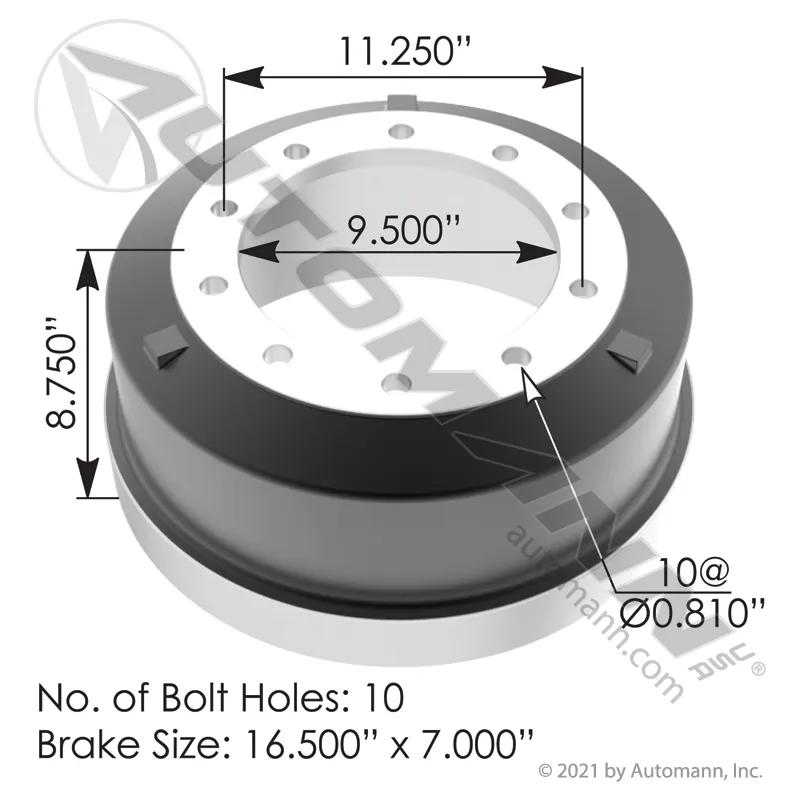

Brake Drum, ABA Brake, Inboard Mount, Cast, 33/64 in Back Plate Thickness, 11-1/4 in Bolt Circle Dia, 13/16 in Bolt Hole Dia, 16-1/2 x 7 in Brake, 16-1/2 in Brake Surface Dia, 10 Holes, 9-1/2 in Pilot Dia, 8-29/32 in Height, 7 in Length, 12 in Width
Specifications
| Back Plate Thickness | 33/64 in |
| Bolt Circle Diameter | 11-1/4 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 7 in |
| Height | 12 in |
| Material | Cast |
| Pilot Diameter | 9-1/2 in |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Width | 7 in |
| Bolt Hole Diameter | 13/16 in |
| Brake Type | ABA |
| Length | 7 in |
| Mount Type | Inboard |
| Number of Holes | 10 |
| Product Category | Brake Drum |
Interchanges & Equivalent parts:
| 122126 |
| 03122126002 |
| 151.6706 |
