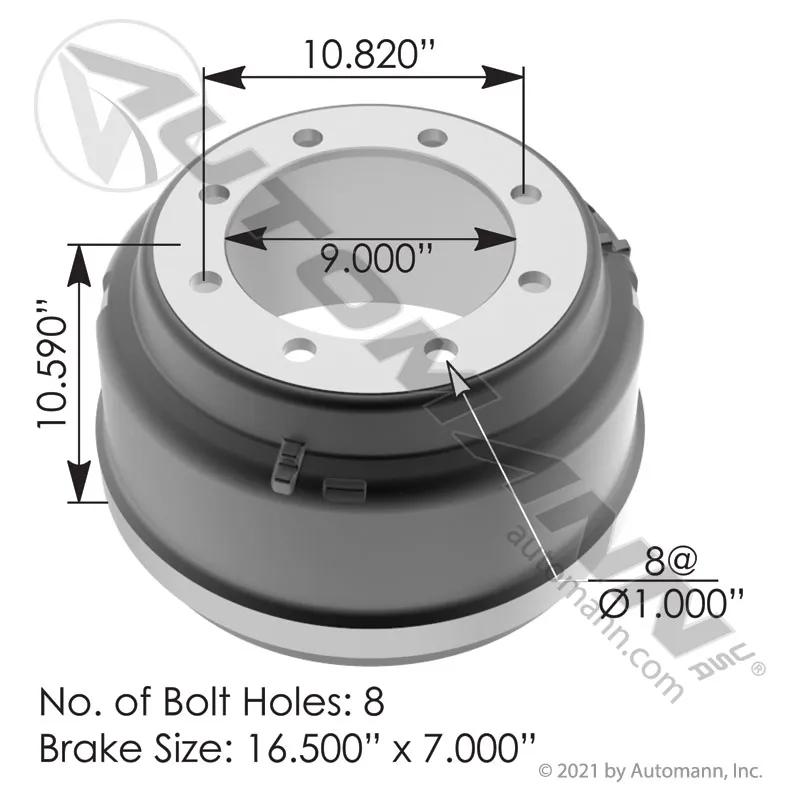

Brake Drum, BDA Type, 16-1/2 in x 7 in, 8 Holes, 16-1/2 in Brake Surface Diameter
#MZB151.6712
Product Overview
Brake Drum, BDA Brake, Outboard Mount, 1/2 in Back Plate Thickness, 10-53/64 in Bolt Circle Dia, 1 in Bolt Hole Dia, 16-1/2 x 7 in Brake, 16-1/2 in Brake Surface Dia, 0.5 in Flange Thickness, 8 Holes, 9 in Pilot Dia, 10-19/32 in Height, 7 in Width
Specifications
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 10-53/64 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 7 in |
| Drum Mounting | Outboard |
| Dust Shield Recess Depth (C) | 9/16 in |
| Dust Shield Recess Diameter (B) | 17-7/16 in |
| Flange Thickness | 1/2 in |
| Height | 10-19/32 in |
| Hole Size | 1 in |
| Maximum Diameter | 16-5/8 in |
| Overall Diameter | 18-3/4 in |
| Pilot Diameter | 9 in |
| Sidewall Offset (N) | 14-3/8 in |
| Squealer Band Width (K) | 1-51/64 in |
| Type | BDA |
| VMRS Code | 013-017-006 |
| Width | 7 in |
| Bolt Hole Diameter | 1 in |
| Brake Type | BDA |
| Mount Type | Outboard |
| Number of Holes | 8 |
| Product Category | Brake Drum |
Interchanges & Equivalent parts:
| 123409 |
| 03123409002 |
| 151.6712 |
