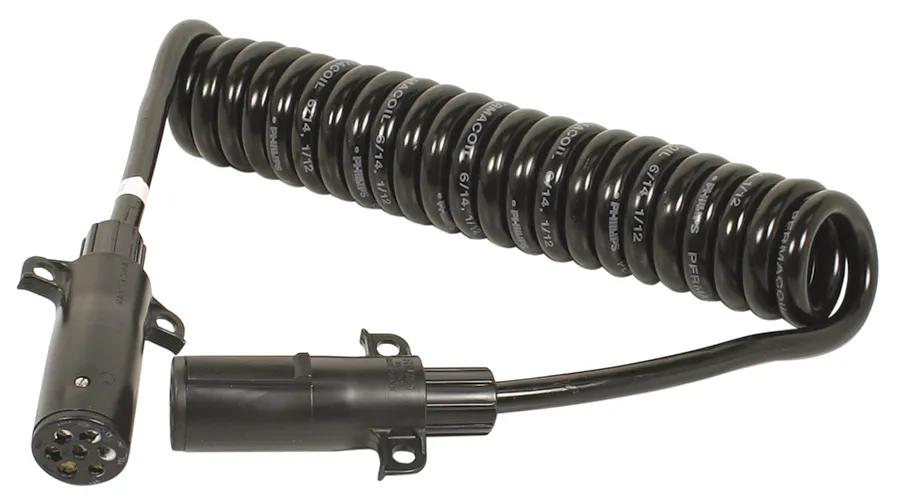

Cable Assembly - NON-ABS PERMACOIL, Coiled, 15 Ft., 6/14 & 1/12 ga., with WEATHER-TITE PERMAPLUGS
#PHI24-4620
Product Overview
For Standard 7-Way Applications, Non-ABS Equipped Trailers, Good Ratings For Recoil Memory, Chemical Resistance & Abrasion Resistance, Unbreakable Permaplugs Feature Dupont Patented Material, Reinforced For Durability
Features & Benefits
- As recommended practice, use tracker bar spring kit or pogo stick to support cable assemblies with longer leads
- For standard 7-Way applications, NON-ABS equipped trailers
- Good recoil memory, chemical & abrasion resistance
- Large finger grips for coupling/uncoupling, even with gloves
- Longer plug interior for easy maintenance
- Meets SAE J560, J2222
- Protected with non-corrosive, non-conductive, dielectric grease
- The WEATHER-TITE⢠PERMAPLUG⢠seal blocks contaminants from entering the electrical system
Specifications
| Color | Black |
| Length | 15 ft (4.57 m) |
| Material | Polyethylene (Plastic) |
| Temperature Range | -67°C (-90°F) to 51°C (125°F) |
| Type | Coiled |
Specifications
| Gauge | 1/12 ga, 6/14 ga |
| Packaging | Bagged |
Interchanges & Equivalent parts:
| PHN2815CL |
| 244620 |
| 24-4620 |
| 130382 |
