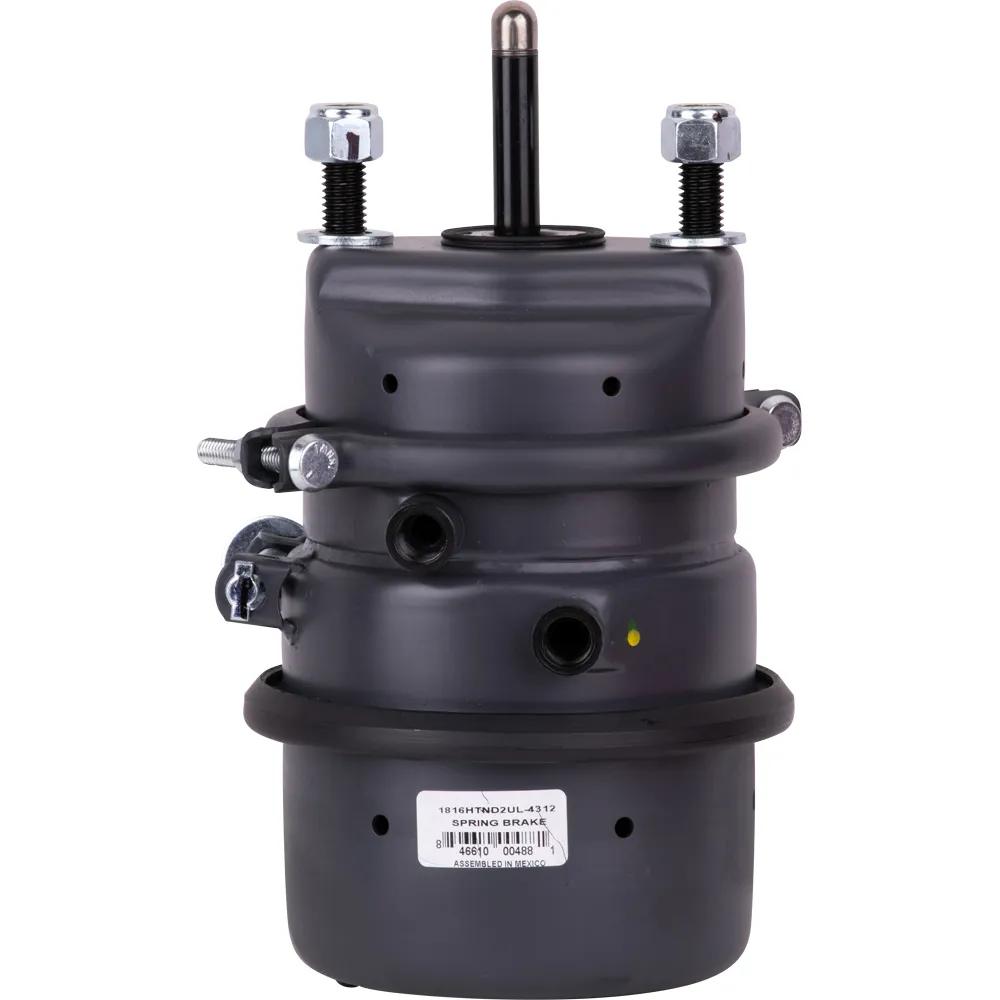

TSE Brakes UL-Disc 18-24 Type Air Disc Brake Chamber, Steel, 2-1/2 in Stroke, Truck & Trailer
#TSE1816HTND2UL-4312
Product Overview
Premium OEM preferred design featuring a durable all-steel construction with full immersion electro-deposition coating for superior corrosion resistance. The UL-Disc brake chamber offers a unique composite port adapter, high vibration mounting base, and patented bushing assembly for extended service life and reduced leaks. Tested beyond industry standards for reliability in heavy-duty trucking applications.Brake Chamber, Disc Brake, 18-24 Chamber, Steel, 3/8-18 NPTF Inlet Port, 5/8-11 UNC Mounting Stud, 15 mm Push Rod Length, 2-1/2 in Stroke Length, For Truck, Trailer
Features & Benefits
- Sets Industry Standard for Long Life & Corrosion Protection
- All Steel Design
- Full Immersion E-Coating for Excellent Corrosion Resistance
- OEM Premium First Fit & OEM Quality Replacement
- 6 Year Warranty Standard. 7 Years For Fleet Partners
- Full immersion electro-deposition coating inside and out for the most durable corrosion protection in the industry
- All steel design provides durable, air tight center section that virtually eliminates leaks, structural failures and prevents galvanic corrosion
- Premium Quality - TSE is an ISO 9001 and KBA certified company, As an OEM premium direct fit and aftermarket replacement, UL-Disc is the premium brake for your heavy-duty disc brake trucking application
- Unique Port Adapter - UL-Disc features a unique composite port adapter which reduces profile size and allows for easy air connection
- High Vibration Base - TSE designed High Vibration "HV" mounting base reduces vibration for longer life standard on UltraLife products
- Tough main spring - tested to double sae standards, UL-Disc’s main spring actually exceeds SAE dry cycle testing requirements in a slurry environment
- Patented bushing assembly provides center seal that traps lubricant for extended service, reducing center section leaks and brake drag
Specifications
| Clevis | Round Tip Clevis |
| Contains | Brake Chamber |
| Material | Steel |
| Stroke Inch | 2-1/2 in |
| Type | Air Disc Brake |
| Weight | 17.71 lb |
| Application | Truck, Trailer |
| Brake Type | Disc |
| Chamber Type | 18-24 |
| Fits Models | T18/24 |
| Includes | Composite port adapter, High vibration mounting base, Patented bushing assembly |
| Inlet Port | 3/8-18 NPTF |
| Mounting Stud | 5/8-11 UNC |
| Position | Bottom |
| Pressure Rating | Tested beyond industry standards |
| Push Rod Length | 15 mm |
| Stroke Type | Standard |
| Product Category | Brake Chamber |
Interchanges & Equivalent parts:
| 1816HTND2UL-4312 |
