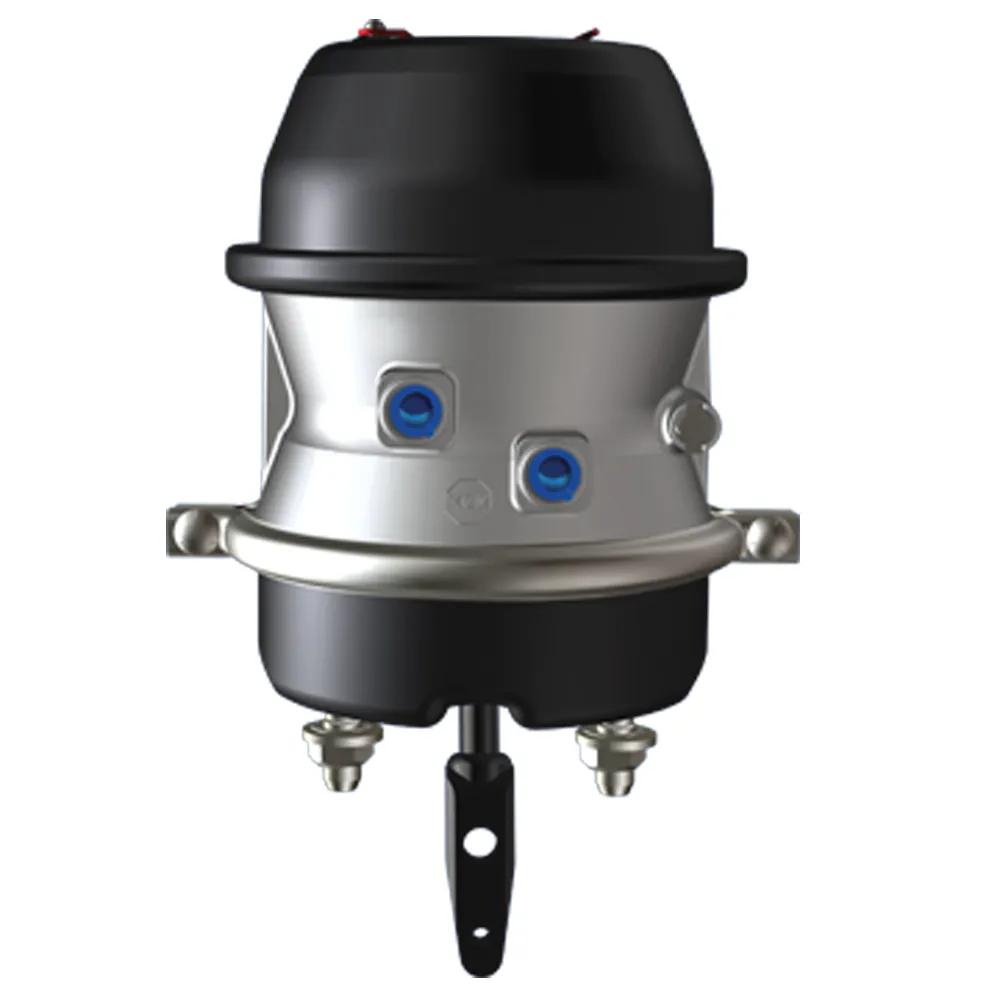

Brake Chamber, Double Diaphragm, S-Cam Brake, 30-30 Type, Steel, 3 in Stroke, Push Rod 2-1/4 in
#MGM3232951
Product Overview
Brake Chamber, Double Diaphragm, S-Cam Brake, 30-30 Chamber, Long Stroke, Steel, 3/8-18 NPTF Inlet Port, 5/8-11 UNC Mounting Stud, 3 in Stroke Length
Features & Benefits
- Tamper Resistant Design
- Center Hole Diaphragm
- Epoxy-Coated Head.Non-Pressure Chamber and Lower Push-Rod Assembly
- Epoxy-Coated Return Spring
- Center Hole Shield
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty 8-Gauge Steel Non-Pressure Chamber (Type 3030 Models)-(9-Gauge On All Other Sizes)
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- Stroke Alert
Specifications
| Material | Steel |
| Stroke Inch | 3 in |
| Type | Double Diaphragm |
| Weight | 20.4 lb |
| Application | S-Cam Brakes (Drum) |
| Brake Type | S-Cam |
| Chamber Type | 30-30 |
| Inlet Port | 3/8-18 NPTF |
| Mounting Stud | 5/8-11 UNC |
| Push Rod Length | 2-1/4 in |
| Stroke Type | Long |
| Product Category | Brake Chamber |
Interchanges & Equivalent parts:
| 3232951X |
