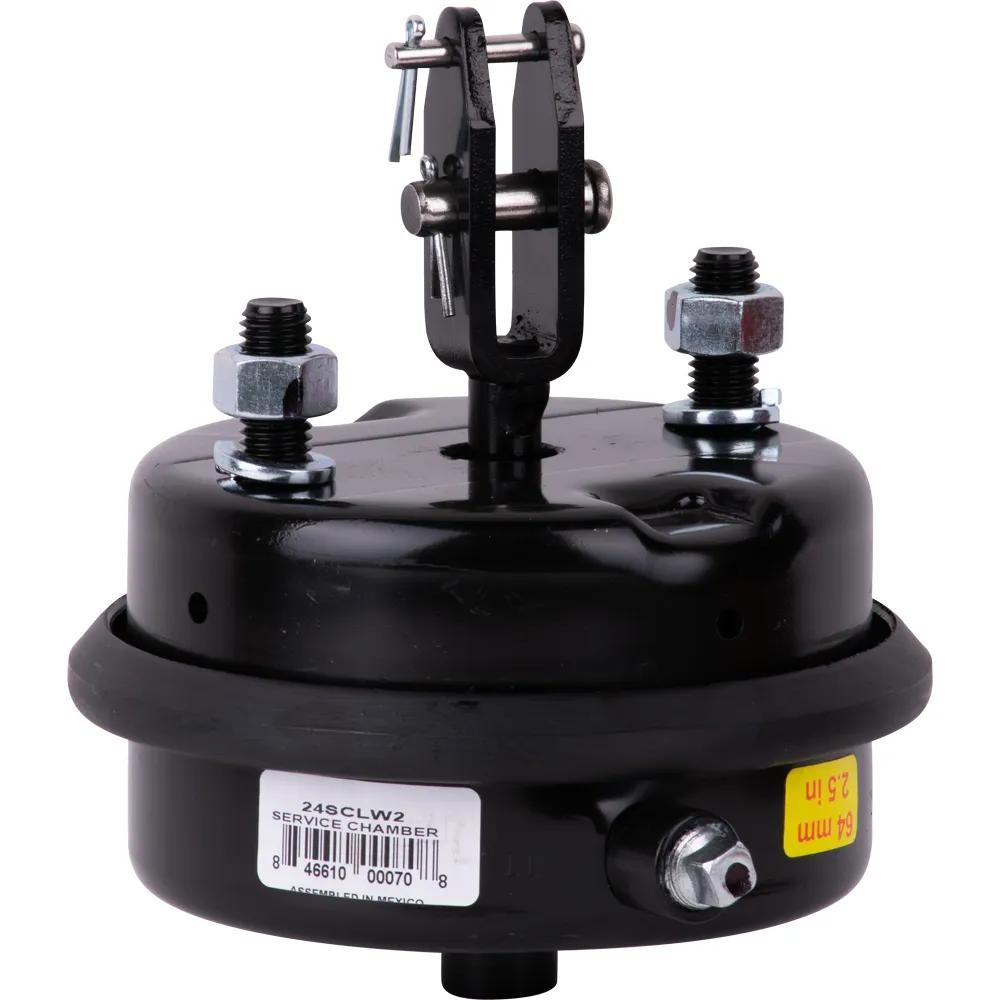

Brake Chamber T24, S-Cam Drum Brake, Steel, 2-1/2 in Stroke, for Truck
#TSE24SCLW2
Product Overview
Brake Chamber, S-Cam Brake, 24 Chamber, Steel, 3/8-18 NPTF Inlet Port, 5/8-11 UNC Mounting Stud, 2.25 in Push Rod Length, 2-1/2 in Stroke Length, 7.3 in Width, For Truck
Features & Benefits
- Superior OEM preferred design
- Sets industry standard for long life & corrosion protection
- All steel design
- Full immersion e-coating for excellent corrosion resistance
- OEM premium first fit & OEM quality replacement
- 4 year warranty standard. 5 years for fleet partners
- TSE's patented OmniBrake design is completely sealed and tamper-resistant
- Center sealed assembly with a main spring made from chrome silicon pre-tempered wire, specially coated for premium durability
- All-steel modular design offers more size options for a wide range of applications
- Available with sealed or clamped service side for easy installation and serviceability
- In-house testing includes high pressure cycle, vibration, hot cell cycle, salt spray, cold cell leak/operational, and slurry testing
Specifications
| Chape | Chape soudée |
| Matériel | Acier |
| Type de produit | Freins à tambour à came en S |
| Longueur de la tige de poussée (po) | 2-1/4 po |
| Longueur de course | 2-1/2 po |
| Type | Chambre de service |
| Poids | 9,75 lb |
| Application | Camion |
| Type de frein | Came en S |
| Type de chambre | 24 |
| Modèles compatibles | T24 |
| Inclus | Chambre de frein |
| Orifice d'entrée | 3/8-18 NPTF |
| Mounting Stud | 5/8-11 UNC |
| Push Rod Length | 2.25 in |
| Stroke Type | Orifices ronds |
| Width | 7,3 po |
| Product Category | Chambre de frein |
Interchanges & Equivalent parts:
| U4024SCLW2 |
| K058691 |
