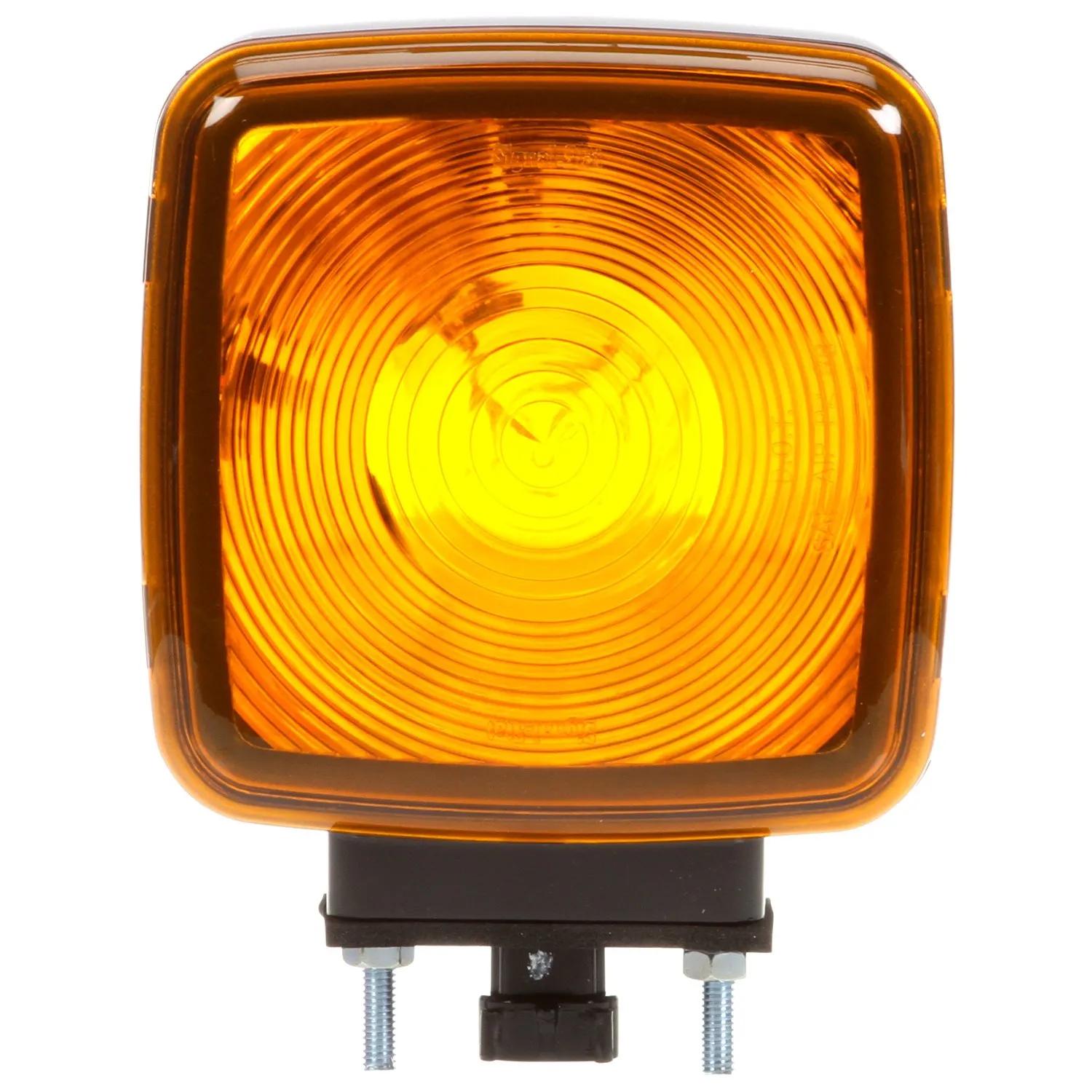

Turn Signal, Amber & Yellow, Square
#TRL5800AA
Product Overview
Signal-Stat, 5800 Series, Incandescent, Yellow Square, 1 Bulb, Dual Face, Vertical Mount, Side Marker, Pedestal Light, 2 Stud, Black, Stripped End
Features & Benefits
- Polycarbonate Snap-On/snap-off lens - no screws
- Special Packard Metri-Pack connector
- Combination side marker lamp and reflex reflector lens
- Mounts left or right
- Unbreakable, easy bulb replacement one lens sealed, one lens snaps on/off
Specifications
| Couleur | Ambre |
| Taille commune | 5 in (12.7 cm) |
| Contient | Lampe |
| Major actuel | 2,1 amp |
| Mineure actuelle | 0,59 amp |
| Profondeur | 2-3/4 in (6.99 cm) |
| Finition | Black |
| Hauteur | 4-51/64 in (12.19 cm) |
| Trousse (O/N) | No |
| Longueur | 5-1/4 in (13.34 cm) |
| Matériau de la lentille | Polycarbonate |
| Type de support | Montage par goujon |
| Nombre de câbles | 3 |
| Fiche #2 | No Plug |
| Position | Left or Right Sides |
| Séries | Signal-Stat |
| Forme | Carré |
| Simple ou double | Seul |
| Standard | FMVSS 108, DOT, SAE |
| Technologie | Incandescent |
| Type | Turn Signal |
| Code VMRS | 034-003-057 |
| Volt | 12V |
| Largeur | 4-51/64 in (12.19 cm) |
| Calibre de(s) fil(s) | 16 ga |
Interchanges & Equivalent parts:
| 84135800AA |
| 230737 |
| SIG5800AA |
| TL5800AA |
| TLD5800AA |
| TRU5800AA |
| 15565531 |
| 1278986 |
| 8309692 |
| 2040890 |
| 5800AA |
| AE59224 |
| D5800AA |
| 8413-5800AA |
| LIT5800AA |
| TL 5800AA |
