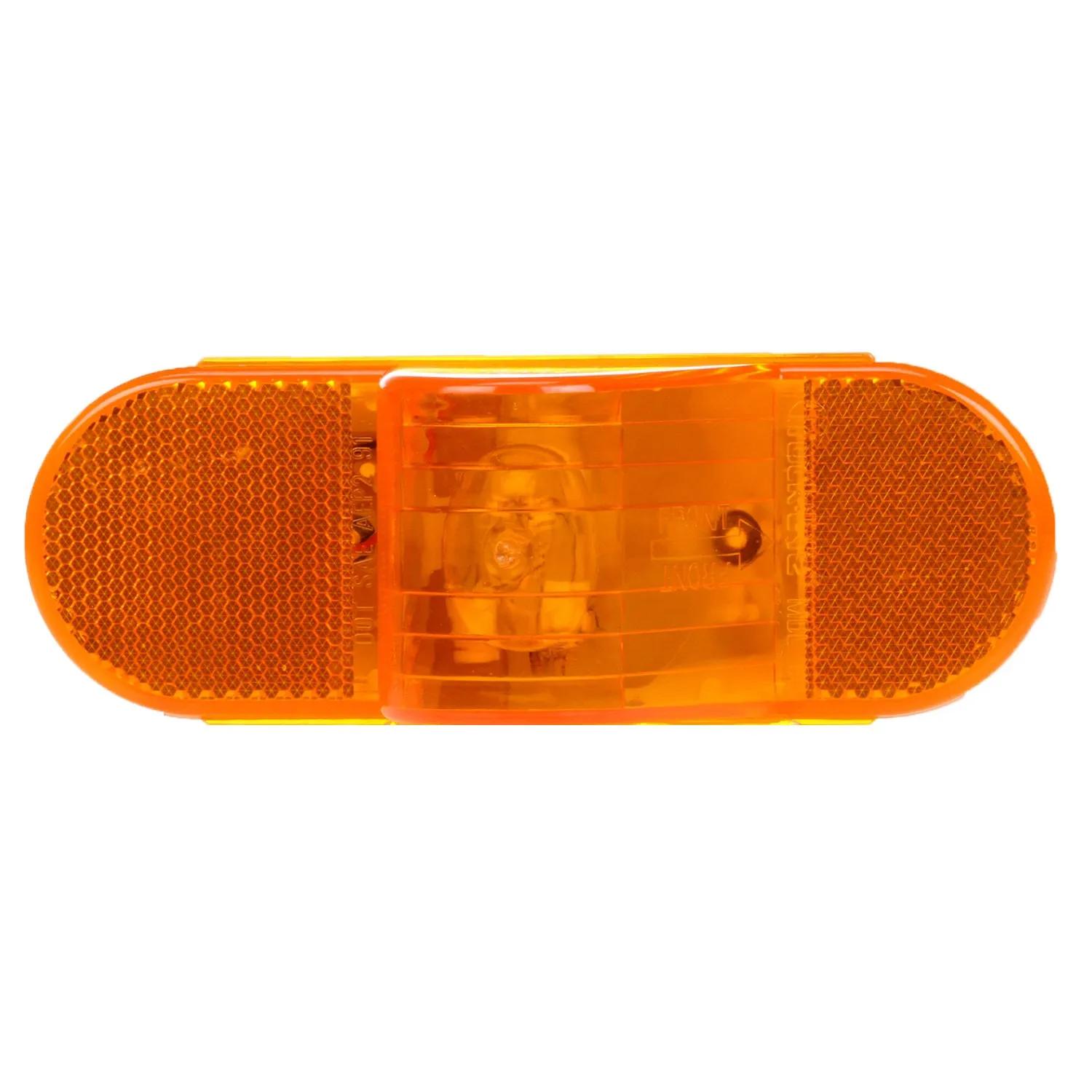

Turn Signal, Amber & Yellow, Oval
#TRL60015Y
Product Overview
60 Series, Incandescent, Yellow Oval, 1 Bulb, Side Turn Signal, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Features side indicator, marker/clearance and reflector functions
- Narrow width facilitates horizontal mounting
- Red lamp should be used only for rear vehicle applications
- Meets SAE J2039 recommendation for side turn signal
Specifications
| Amps | 0.5 amp to 2.1 amp |
| Color | Jaune |
| Common Size | 2 in (5.08 cm) |
| Current Major | 2,1 amp |
| Current Minor | 0,49 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Function | A, E, P2 |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Noir |
| Kit (Y/N) | Yes |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Montage à oeillet |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Side |
| Reflectorized (Y/N) | Oui |
| Series | 60 Series |
| Shape | Ovale |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-097 |
| Volt | 12V |
| Width | 6-1/2 in (16.51 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 11-1/2 in (29.21 cm) |
Interchanges & Equivalent parts:
| 300028008 |
| 370608 |
| 419227524 |
| 4192614 |
| 21TN485 |
| 220 |
| 4220300 |
| 11560015Y |
| 103071 |
| 52543 |
| 1172589 |
| 60015Y |
| 31104 |
| 35100125 |
| 352KA |
| 7148 |
| 68440029 |
| 69040276 |
| CT6102869 |
| 841360015Y |
| 937001247 |
| 703050454 |
| 706282 |
| 70628299 |
| 4022 |
| 50924020 |
| 9962390 |
| 94890096 |
| 7581001292 |
| TKG07495 |
| TL0160015Y |
| HT50602714 |
| TL60015Y |
| TLD60015Y |
| TRL60015Y |
| TWC21991 |
| MTL21905100Y |
| E70230 |
| LNB16383 |
| FMP636902 |
| 1541010512 |
| 1605302 |
| 16514393 |
| 253-5655 |
| 2535655 |
| 4073AK |
| 60015Y1 |
| 60015Y3 |
| MNC253-5655 |
| TRU60015Y |
| 52543GR0 |
| 55620361 |
| 60015Y-TL |
| 6154A |
| 8180567 |
| 8413-60015Y |
| LIT60015Y |
| MTL06001500Y |
| ST77AB |
| TL 60015Y |
| TL 60015Y |
| TLT 60015Y |
| 4073A |
| GRT52513 |
| GRT67002 |
| KTR2238A |
| M352KA |
| TKL60015Y |
| 52253 |
| 115782 |
| 810370 |
| 6899 |
| 83492 |
| 9758 |
| 40276 |
| 522533 |
| 52253-3 |
