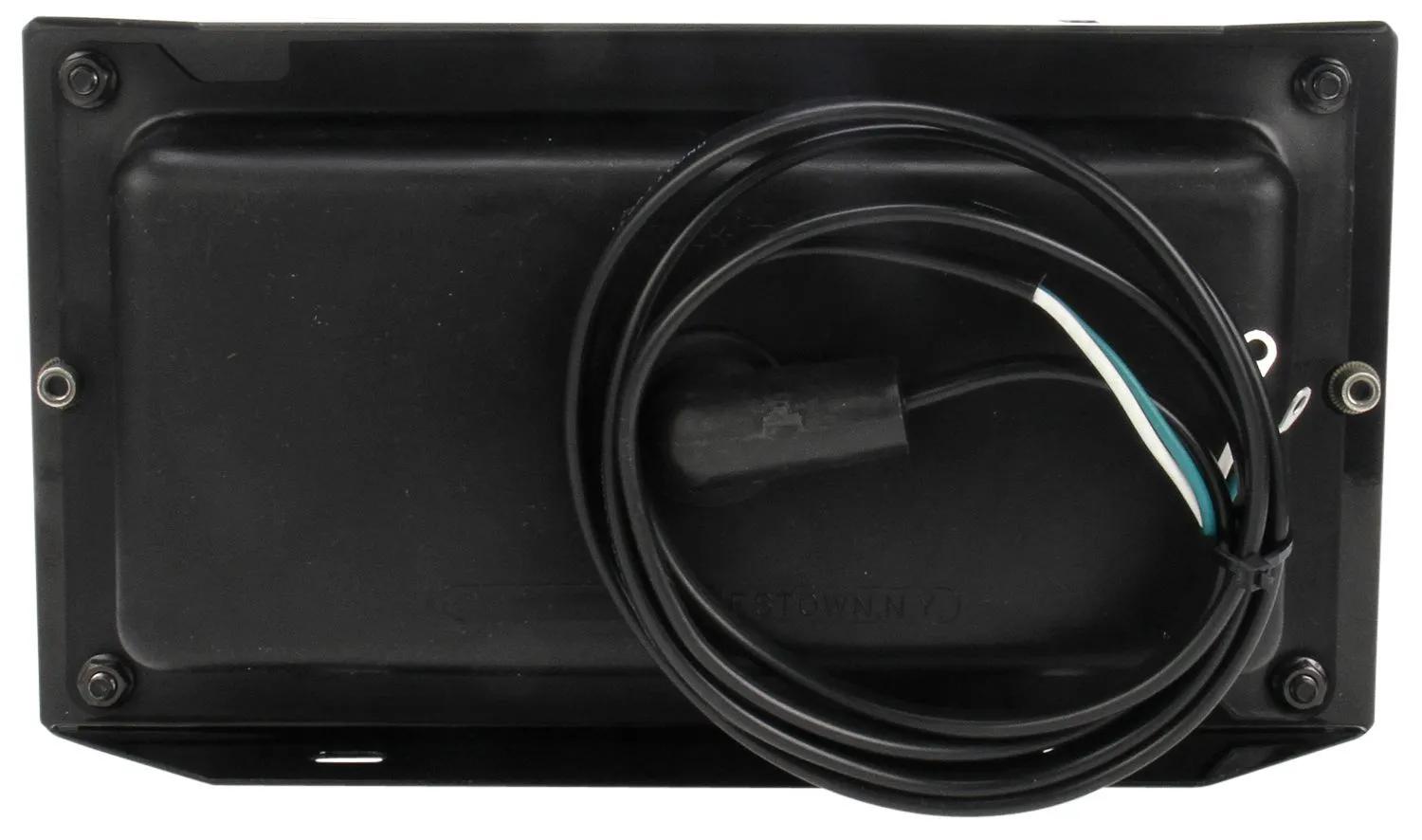

Turn Signal, Amber & Yellow, Rectangular
#TRL40805
Product Overview
40 Series, Wide Turn Right Hand Side, Incandescent, Yellow Rectangular, 2 Bulb, Auxiliary Turn Signal, Black Grommet Mount, PL-2, Ring Terminal, 12V
Features & Benefits
- Features large outer lens for greater visibility
- Includes slotted bracket for ease of installation and adjustment
- Available with enclosed housing for extra protection
- Use part #'s 40812 and 40830 for LED versions
Specifications
| Color | Amber |
| Common Size | 7 in (17.78 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 4-3/16 in (10.64 cm) |
| Height | 6-7/8 in (17.48 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 12-29/32 in (32.79 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Side Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Ring Terminal |
| Position | Auxiliary |
| Reflectorized (Y/N) | No |
| Series | 40 Series |
| Shape | Rectangular |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-097 |
| Volt | 12V |
| Width | 12-29/32 in (32.79 cm) |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 40805 |
| 41301396 |
| 14200483 |
| 1150978002 |
| 1475143 |
| 841340805 |
| 9029A32504 |
| HT50602645 |
| TL40805 |
| TLD40805 |
| TRU40805 |
| E7089677 |
| LI071086 |
| 8413-40805 |
| LIT40805 |
| TL 40805 |
| TL 40805 |
| TLT 40805 |
| TLT 99152 |
