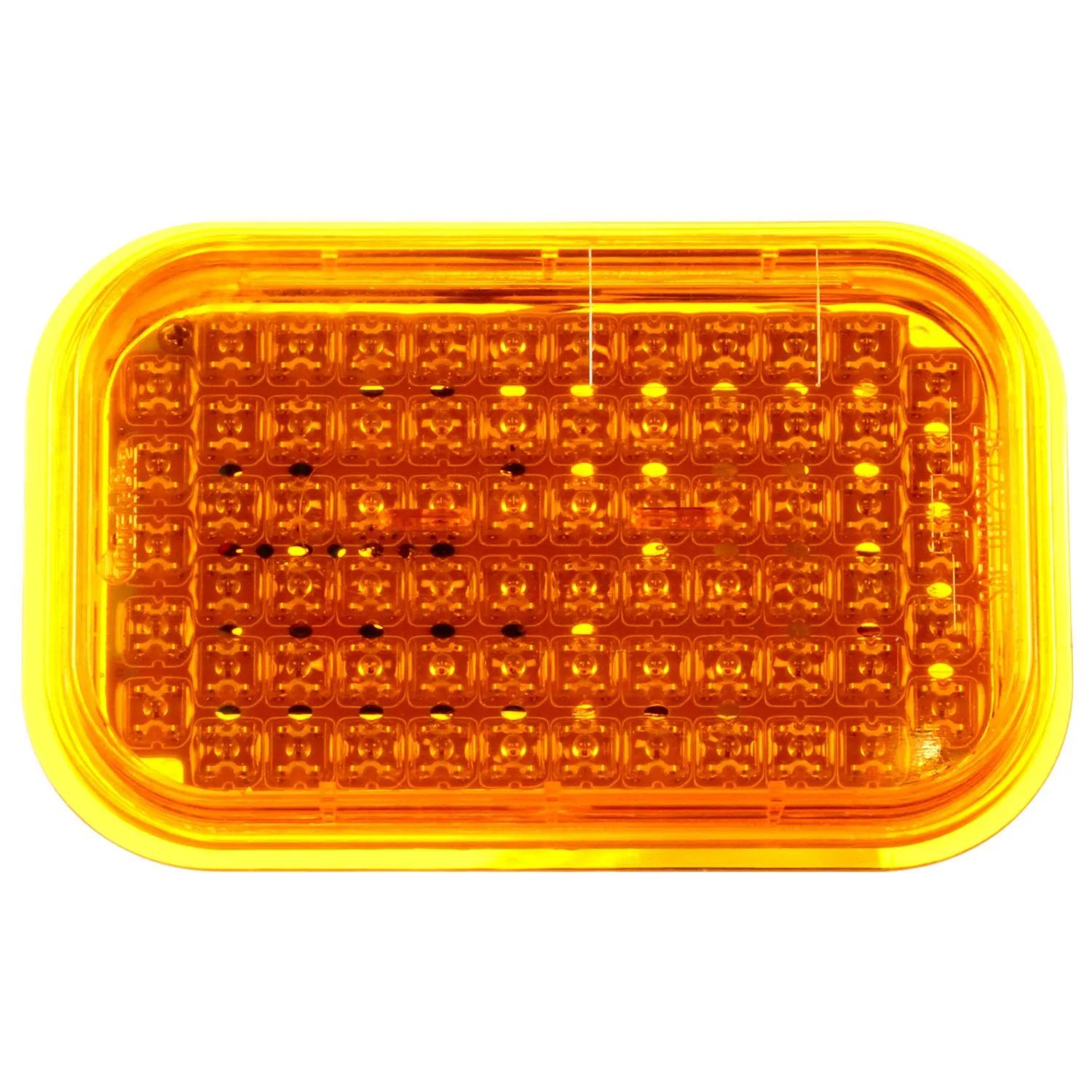

Turn Signal, Amber & Yellow, Rectangular
#TRL45251Y
Product Overview
45 Series, Yellow Rectangular, 70 Diode, Rear Turn Signal, Hardwired, Straight PL-3, 12V
Features & Benefits
- Hardwired design
- Mount horizontally or vertically
- Permanently affixed flange mount version
- Standard connector makes retrofitting a snap
Specifications
| Color | Amber |
| Common Size | 3 in (7.62 cm) |
| Current Major | 0.36 amp |
| Current Minor | 0.03 amp |
| Depth | 1-27/64 in (3.61 cm) |
| Height | 5-5/16 in (13.49 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 5-5/16 in (13.49 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-3, Female |
| Position | Rear |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Turn Signal |
| VMRS Code | 034-003-141 |
| Volt | 12V |
| Width | 3-13/32 in (8.66 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 45251Y |
| 632005 |
| 46001601 |
| 841345251Y |
| HT50601748 |
| TL45251Y |
| TLD45251Y |
| LED406060A |
| LED4060A |
| M40200Y |
| 45261Y |
| TRU45251Y |
| 8413-45251Y |
| 850A-1 |
| 850A-1P |
| LED4060-60A |
| LED45Y |
| LIT45251Y |
| M42200Y |
| TL 45251Y |
| TL 45251Y |
| G4503GR0 |
