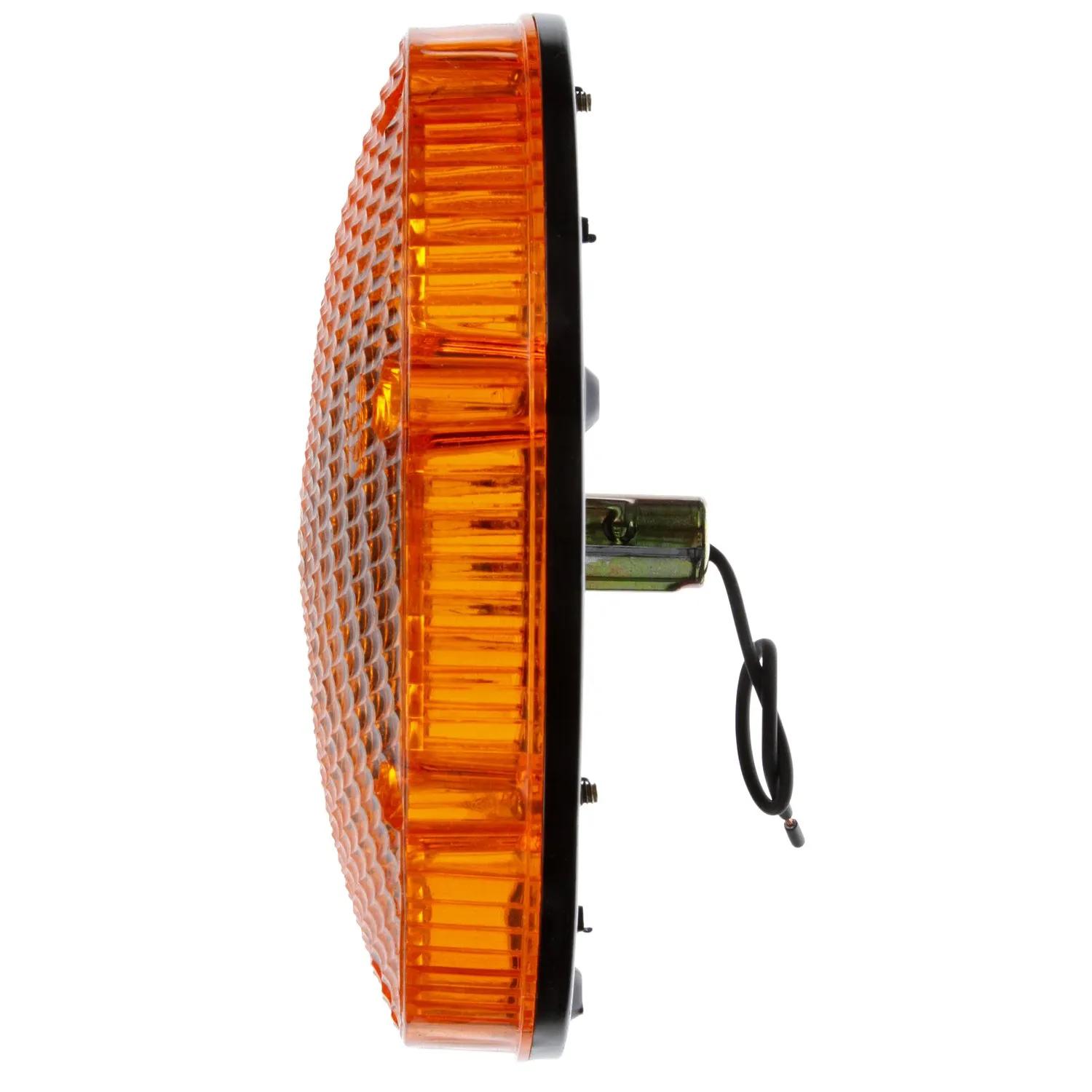

Turn Signal, Amber & Yellow, Round
#TRL6503A
Product Overview
Signal-Stat, Incandescent, Yellow Round, 1 Bulb, Rear Turn Signal, 4 Screw, Hardwired, Stripped End, 12V
Features & Benefits
- Surface mounts with four #10 screws on a 625"
- bolt circle
- Requires a 1"
- diameter hole, 1"
- deep
- Popular lamp on buses and emergency vehicles
- Replaces Signal-Stat 6505/A
Specifications
| Color | Amber |
| Common Size | 6 in (15.24 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.5 amp |
| Depth | 2 in (5.08 cm) |
| Height | 7-1/8 in (18.11 cm) |
| Kit (Y/N) | No |
| Length | 6-1/4 in (15.88 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Rear |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-071 |
| Volt | 12V |
| Width | 7-1/8 in (18.11 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 354054 |
| 6503A |
| 56073 |
| TLD6503A |
| SIG6503A |
| TL6503A |
| 8413-6503A |
| 56072GR0 |
| 56073GR0 |
| 6503AS1G |
