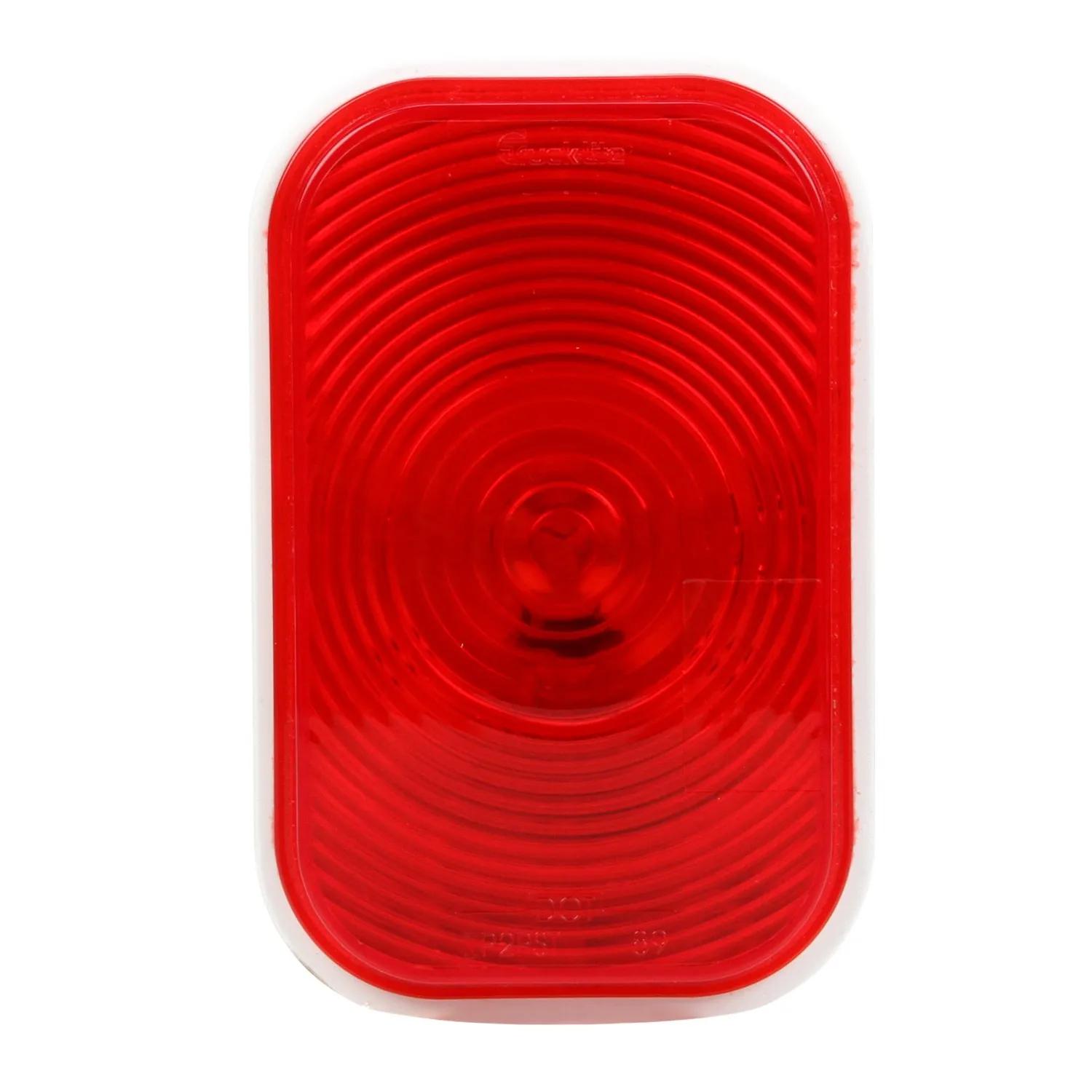

Turn Signal, Red, Rectangular
#TRL45001R
Product Overview
Super 45, Incandescent, Red Rectangular, 1 Bulb, Rear Turn Signal, Black Grommet Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Heavy duty bulb for longer life
- Mount horizontally or vertically
- Upgrade to Truck-Lite LED lighting systems using 45 Series products
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.58 amp |
| Depth | 1-15/16 in (4.93 cm) |
| Height | 3-7/16 in (8.74 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 5-5/16 in (13.49 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Rear |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Turn Signal |
| VMRS Code | 034-003-010 |
| Volt | 12V |
| Width | 5-5/16 in (13.49 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5121932001 |
| 705106 |
| HT50603343 |
| TL45001R |
| TLD45001R |
| 132488 |
| 8413-45001R |
| KT4060R |
| LIT45001R |
| TL 45001R |
| TL 45001R |
| TRU45001R |
| 5111 |
| 45001R |
