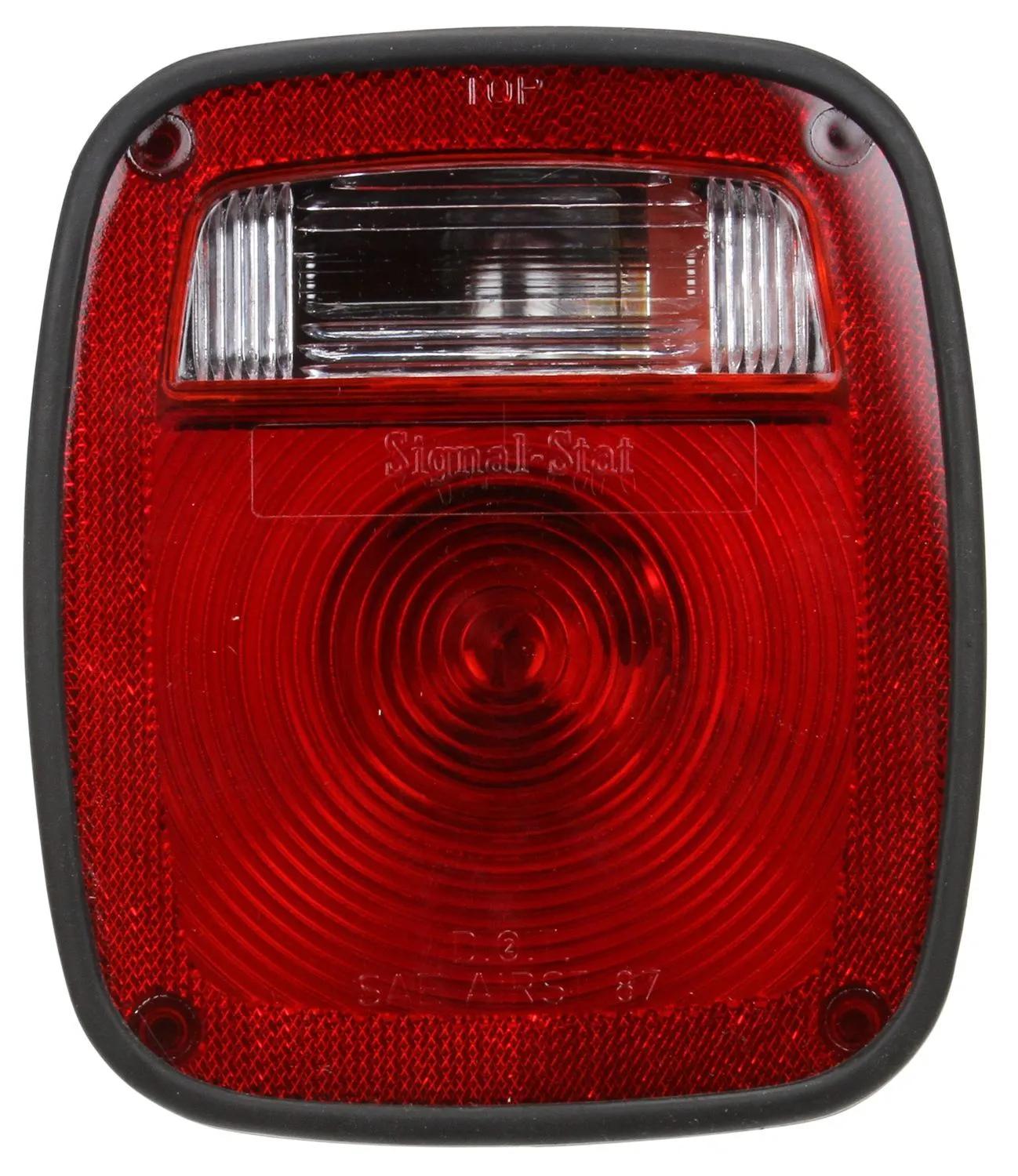

Combination Stop/Tail/Turn Light, Red & White
#TRL5014
Product Overview
Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, RH, Combo Box Light, 3 Stud , Packard , 12V
Features & Benefits
- 5013, 5013K: GM #15565731, 15574697, 15613943, 15684994 Oshkosh #2078210 Peterbilt #16-06160L
- 5014: GM #15565732, 15574696, 15613944, 15684995 Freightliner #681-544-04-03 Oshkosh #2078200 Peterbilt #16-06160R, 16-06292
Specifications
| Color | Red & White |
| Common Size | 5 in (12.7 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2-27/32 in (7.21 cm) |
| Fits Pigtail Part #(s) | 9470 |
| Height | 6-47/64 in (17.09 cm) |
| Kit (Y/N) | No |
| # Lamp Prongs | 5 |
| Lamp Type | Bulb Replaceable |
| Left, Right or Both Side | Right |
| Length | 6-3/4 in (17.15 cm) |
| Lens Height | 6-47/64 in (17.09 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 5-49/64 in (14.66 cm) |
| Mount Type | Stud Mount |
| Plug Side Two | No Plug |
| Product Type | Combination Stop/Tail/Turn Light |
| Series | Signal-Stat |
| Shape | Square |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 1.25 lb (0.57 kg) |
| Width | 5-49/64 in (14.66 cm) |
Interchanges & Equivalent parts:
| 6751491 |
| 6815440403 |
| 5014 |
| 970063485 |
| 84135014 |
| 809360 |
| SIG5014 |
| TL5014 |
| TLD5014 |
| TRU5014 |
| 15565732 |
| 15574696 |
| 15613944 |
| 2078200 |
| 1606160R |
| 1606292 |
| 5014S1G |
| TRU5014S1G |
| 15684995 |
| 16-06160R |
| 16-06292 |
| 80936 |
| 8413-5014 |
| LIT5014 |
| TL 5014 |
| GRT53702 |
| LB010102 |
| 53702 |
| 14684995 |
