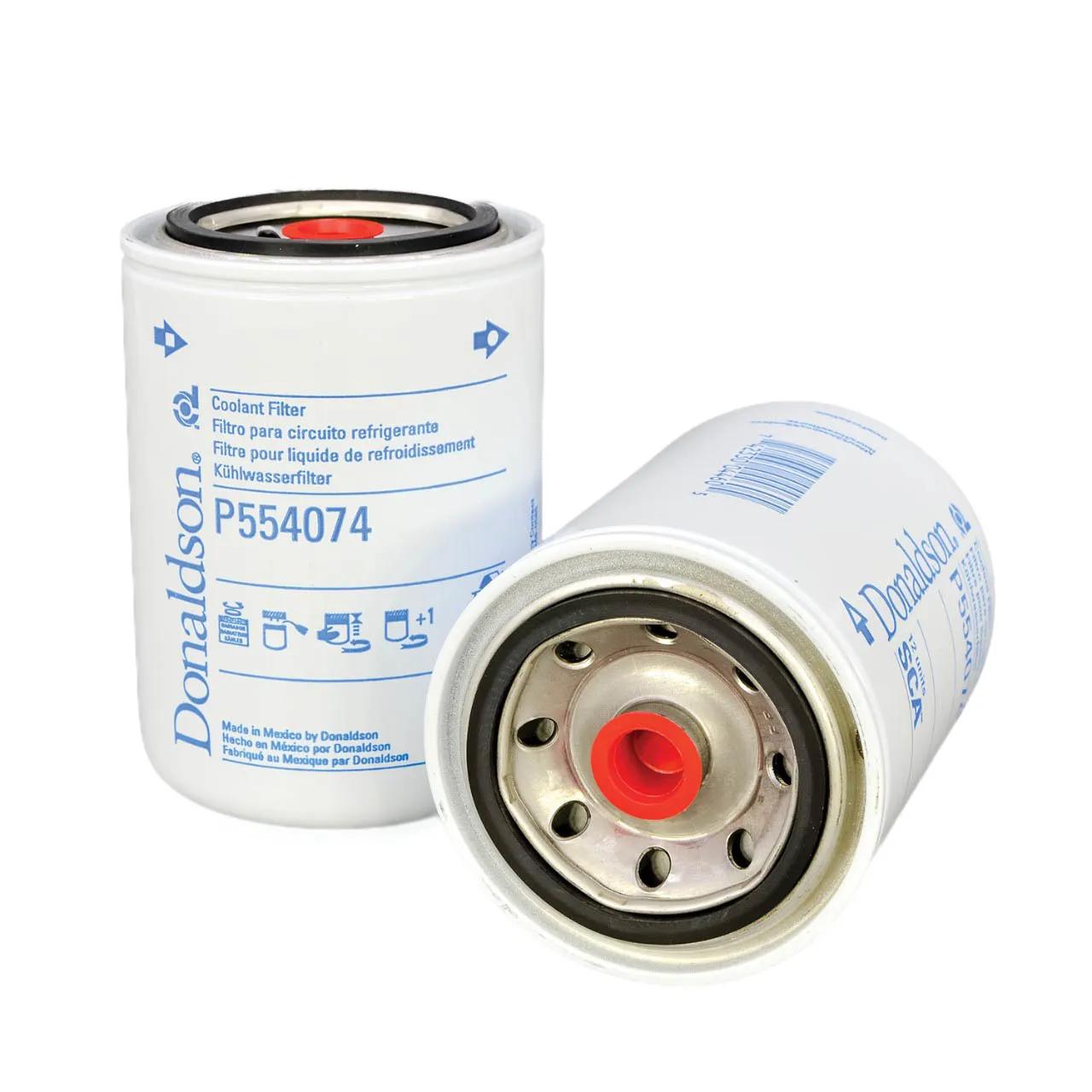

Coolant Filter L: 5,36 in, Thread : 11/16-16 UN , OD: 3,66 in
#DONP554074
Features & Benefits
- Donaldson coolant filters provide protection from contamination for a range of coolant systems
- Contains enough additive to initially charge the cooling system to reach the first service interval
- Seals are constructed specifically to withstand extreme heat and cold
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 50 Micron |
| Efficiency Test Std | SAE J1985 |
| Engine Manufacturer | Cummins |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 5.36 in (136.2 mm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 11/16-16 UN |
Interchanges & Equivalent parts:
| 89073 |
| 89074 |
| 9341 |
| WF2013 |
| WF2066 |
| WF2067 |
| WF2089 |
| WF2144 |
| WF4013 |
| PR3753 |
| PR7308 |
| GP1013Q |
| WC7 |
| HDA17002 |
| HDA17004 |
| H29WF |
| H32WF |
| WE2067 |
| FW2071H |
| C16 |
| C22 |
| C24 |
| C30 |
| W300 |
| W373 |
| W472 |
| 5133 |
| LFW4013 |
| LFW4074 |
| WA9140 |
| WA956 |
| FW19 |
| FW8A |
| FW9A |
| FW9AFP |
| 4074 |
| AW2016 |
| AW2016SP |
| PW320 |
| PW4455 |
| W64455 |
| WC5712 |
| SW1620 |
| SFC2074 |
| 24074 |
| WF102 |
| WF115 |
| WF115F |
| 4681776 |
| 23507189 |
| 15039040H |
| 6004111010 |
| 6004111020 |
| 6004111151 |
| 6710618112 |
| 6710618113 |
| 6710618130 |
| 96073 |
| 861361 |
| 24025 |
| V26206 |
| 749F8A469BAA |
| A152819 |
| B2750502 |
| E7HZ8A424C |
| E8HN8A424AA |
| S302030 |
| 9Y4531 |
| 7E6013 |
| 9N3366 |
| 9N3866 |
| PW4013 |
| 34654 |
| 7255401300 |
| 8769674 |
| AZW003 |
| CSM6502 |
| 3315114 |
| 258264 |
| 3310752 |
| 3315788 |
| 3831133 |
| 23508426 |
| 1801088C1 |
| 441365C2 |
| 690140C1 |
| 690172C1 |
| 797890C1 |
| C3305370 |
| E12968663 |
| 4787502 |
| FT5399 |
| 61259013 |
| 73144662 |
| 78300224 |
| 3A11553 |
| Y02729105 |
| Y05013401 |
| Y05762512 |
| Y05815203 |
| 9576P554074 |
| D5HZ8A424A |
| E8HN8A424M |
| DNP554013 |
| DNP554074 |
| 941 |
| 12968993-0 |
| P554074 |
| 27077521 |
| 4734562 |
