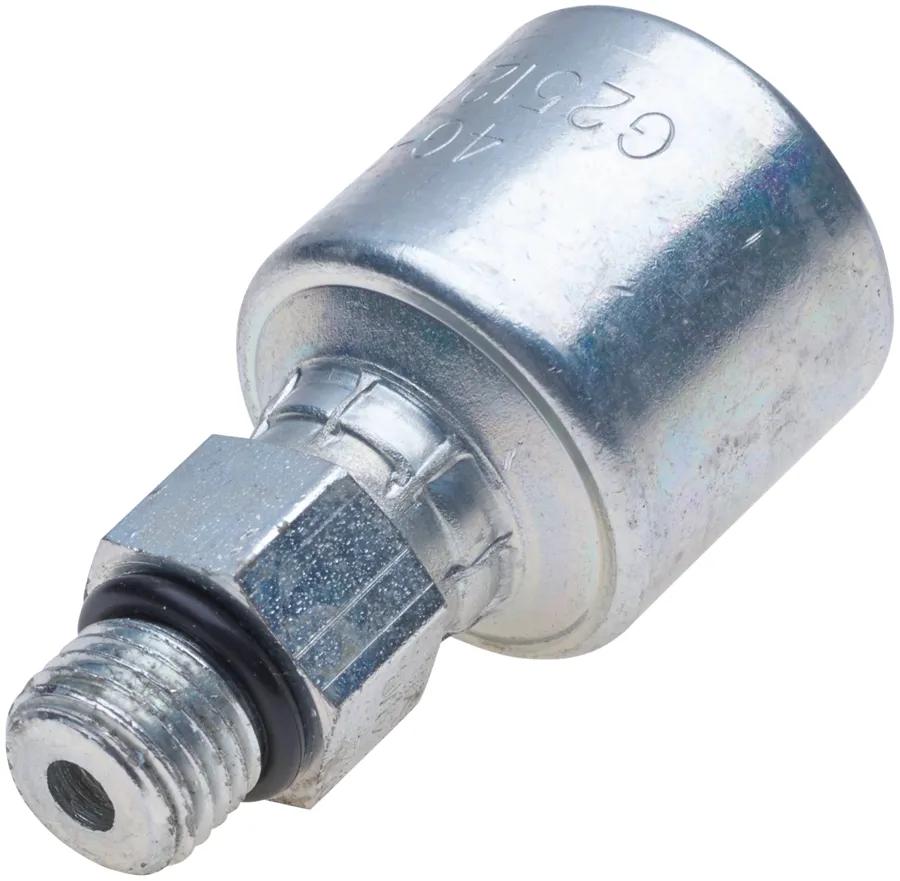

MegaCrimp Male O-Ring Boss, 16G-16MB
#GATG25120-1616
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Male O-Ring Boss |
| Cut Off (in) – C | 1-39/64 in (4.09 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 16G-16MB |
| Inside Diameter | 1 in (2.54 cm) |
| Length | 3-27/32 in (9.75 cm) |
| O-Ring | Outside O-Ring Boss |
| Seal Type | O-Ring |
| Stem Hex (in.) | 1-1/2 in (3.81 cm) |
| Swivel | No |
| Thread | 1-5/16 in-12 |
| Type | MegaCrimp Male O-Ring Boss |
Interchanges & Equivalent parts:
| 1AA16MB16 |
| FJ9124-1616S |
| G25120-1616 |
| 710002375 |
