Coupleurs

#GATG25100-0608X

Sommaire du produit

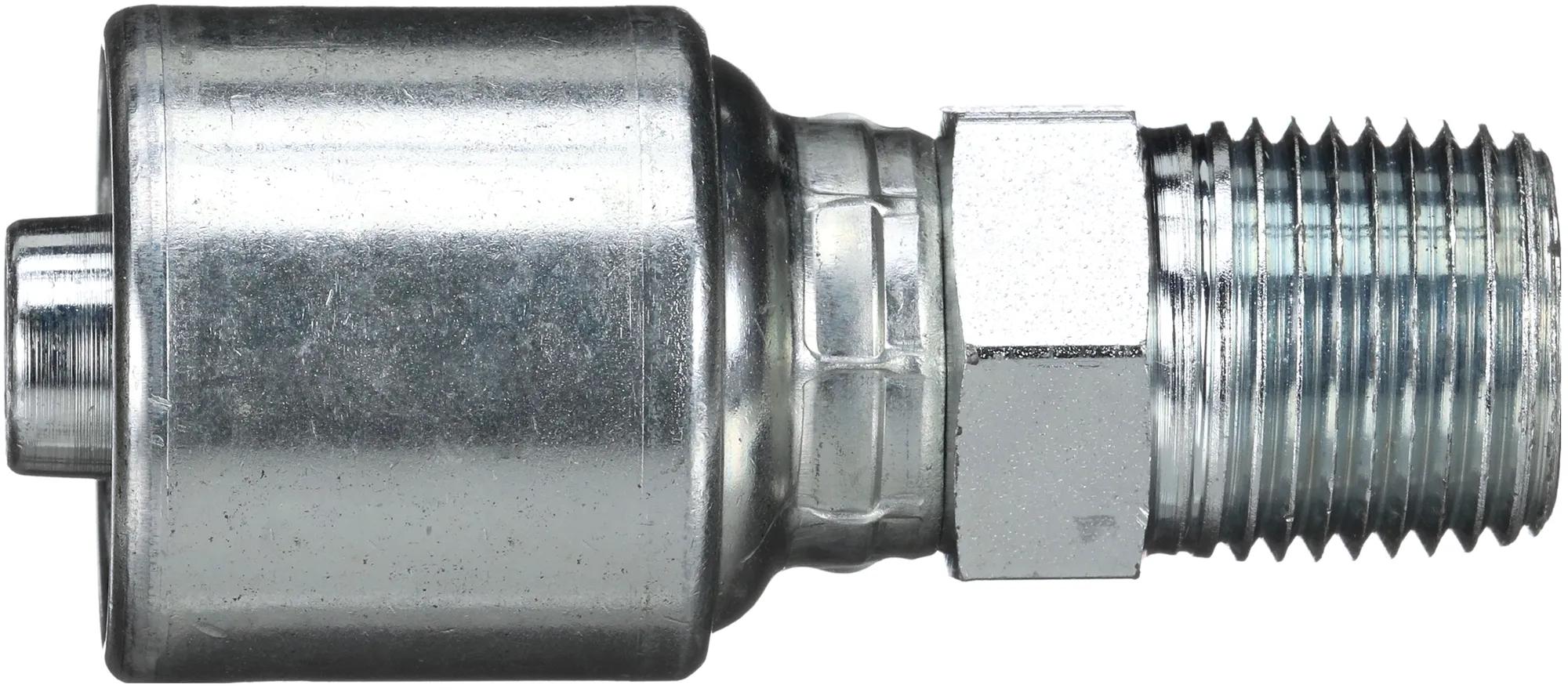

It’s what’s Inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.

Caractéristiques et avantages

The ‘bite-the-wire’ design allows for coupling and hose retention to make a high performance, risk-free hydraulic hose assembly.

Features Gates® full-torque Nut™ technology, engineered to be stronger, more durable, and transfer torque to clamp-load more consistently than traditional staked nuts to prevent cracking from over-torquing and minimize leaks.

MegaCrimp couplings allow you to simplify your inventory by carrying one family of couplings that are qualified on all Gates® wire-braid hoses.

Design tested to surpass one million impulse cycles, proving its high performance and maximum service life.

MegaCrimp couplings set a new standard for hydraulic couplings, the unique in insert ensures inweep-free in concentric crimping to keep equipment and the environment clean.

Spécifications

Longueur	2.51 in
Matériel	Acier
CUP	72053660029
Dimension de la connexion 1	0.374 in
Numéro de référence de fabricant	G25100-0608X
Catégorie de produit	MegaCrimp Coupling
Quantité	150
Poids	0.23 lbs

Interchanges et pièces équivalentes:

71001009
