Coupleurs

#GATG25170-0810X

Sommaire du produit

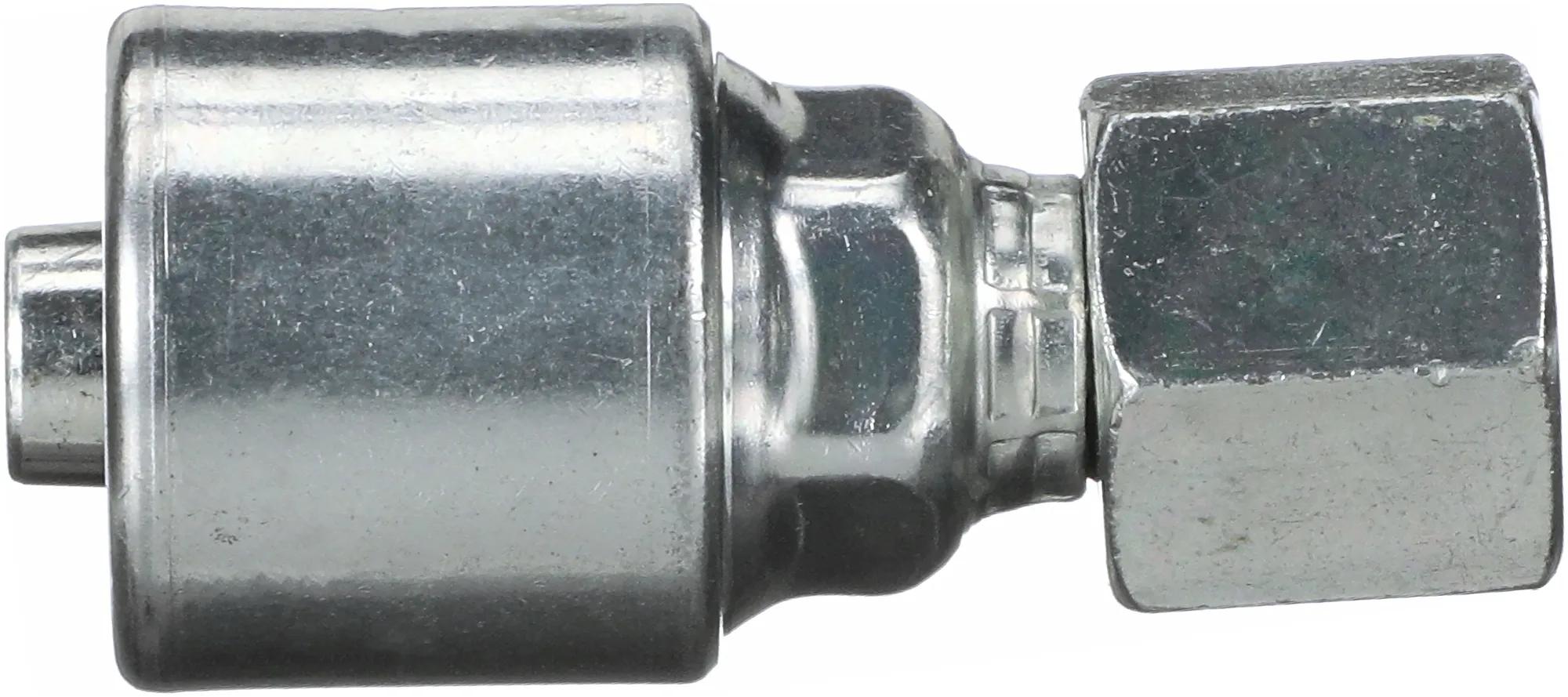

It’s what’s Inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.

Caractéristiques et avantages

Features Gates® full-torque Nut™ technology, which is stronger, more durable, and less prone to cracking from over-torquing than traditional staked nut fittings, transferring input-torque to clamp-load more consistently to minimize leaks.

Features a unique 'bite-the-wire' C-insert design that ensures a concentric, weep-free seal and strong hose retention for a high-performance, risk-free hydraulic hose assembly.

MegaCrimp couplings allow you to simplify your inventory by carrying one family of couplings that are qualified on all Gates® wire-braid hoses.

Spécifications

Longueur	3.01 in
Matériel	Acier
CUP	770075421054
Dimension de la connexion 1	0.5 in
Numéro de référence de fabricant	G25170-0810X
Catégorie de produit	MegaCrimp Coupling
Quantité	125
Poids	0.35 lbs

Interchanges et pièces équivalentes:

71030821
