2 POINTS

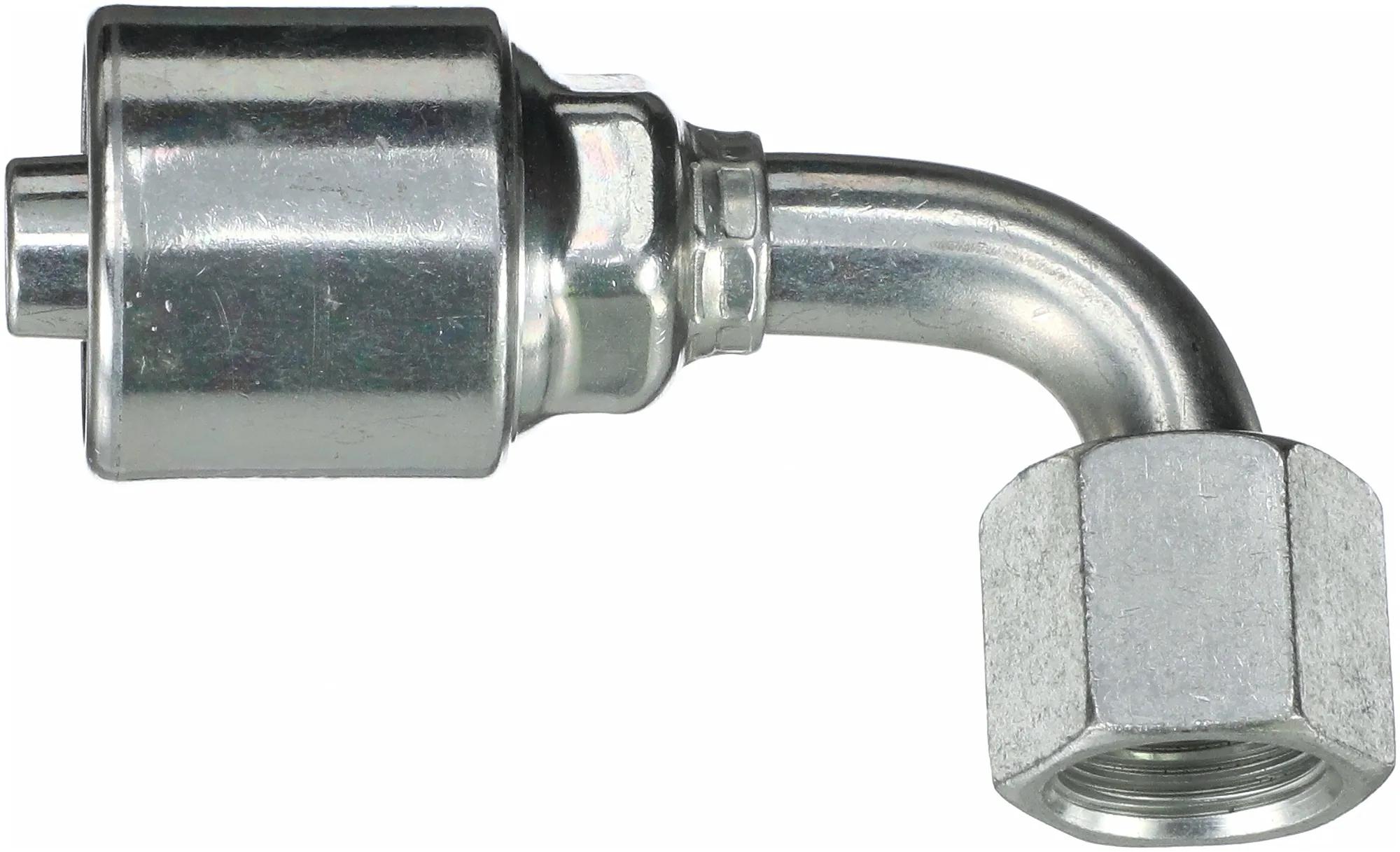

Coupleurs
#GATG25179-0606X
Sommaire du produit
It’s what’s Inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.
Caractéristiques et avantages
- Features Gates® Full-Torque Nut™ technology (available on MegaCrimp™ and GlobalSpiral™ couplings) to prevent cracking from over-torquing, making them stronger and more durable than traditional staked nuts while transferring input-torque to clamp-load more consistently to minimize leaks.
- The ‘bite-the-wire’ design allows for coupling and hose retention to make a high performance, risk-free hydraulic hose assembly.
- MegaCrimp couplings allow you to simplify your inventory by carrying one family of couplings that are qualified on all Gates® wire-braid hoses.
- MegaCrimp couplings set a new standard for hydraulic couplings, the unique in insert ensures inweep-free in concentric crimping to keep equipment and the environment clean.
Spécifications
| Longueur | 3.09 in |
| Matériel | Acier |
| Type | 90 deg |
| CUP | 5414465879500 |
| Dimension de la connexion 1 | 0.374 in |
| Dimension de la connexion 2 | 9/16-18 UNF |
| Numéro de référence de fabricant | G25179-0606X |
| Catégorie de produit | MegaCrimp Coupling |
| Quantité | 150 |
| Poids | 0.24 lbs |
Interchanges et pièces équivalentes:
| 71034720 |
