2 POINTS
Coupleurs
#GATG25179-0808X
Sommaire du produit

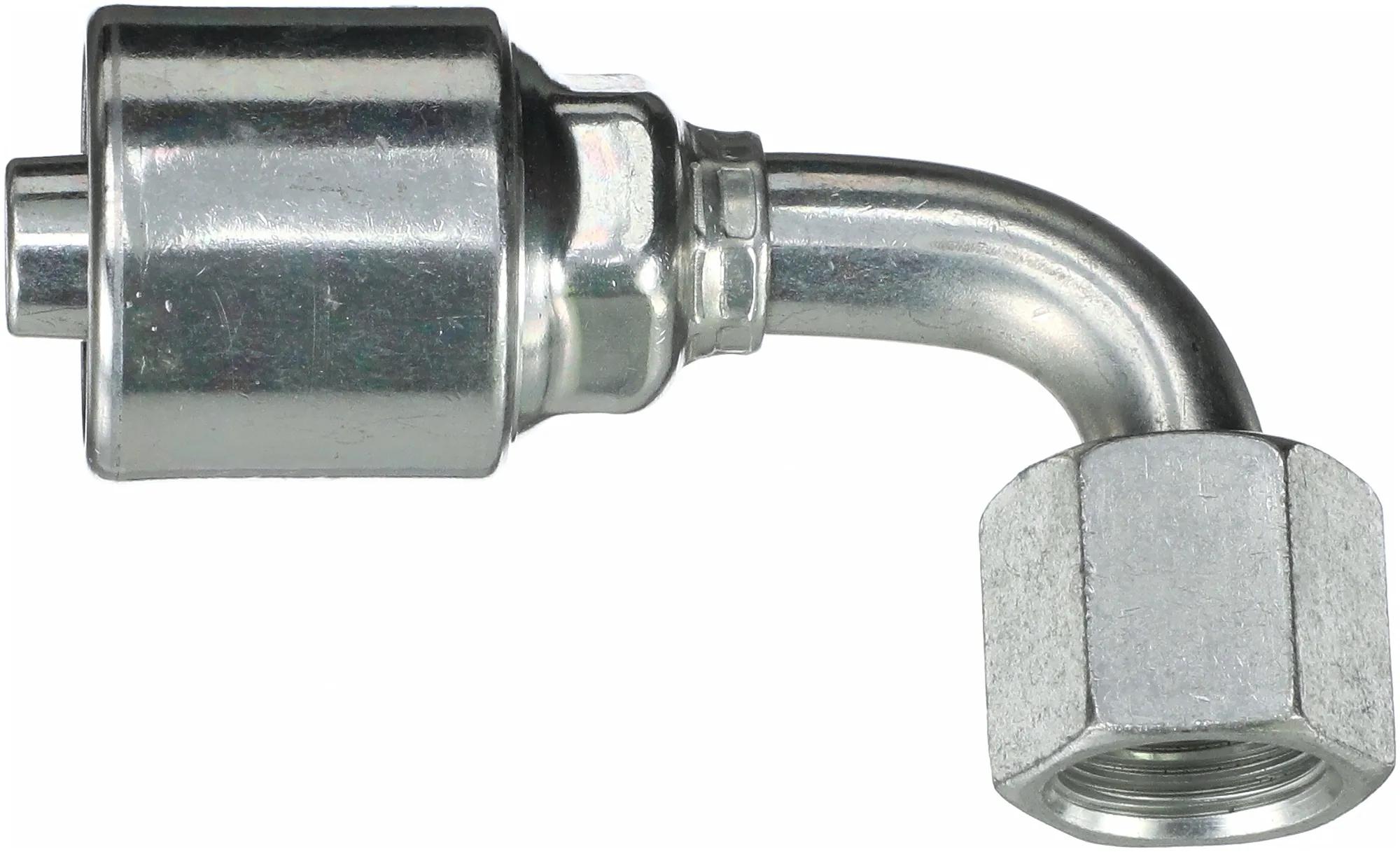

It’s what’s inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.
Caractéristiques et avantages
- Engineered with Gates® full-torque Nut™ technology, available on MegaCrimp™ and GlobalSpiral™ couplings, to prevent leaks from over-torquing; this design is stronger and more durable than traditional staked nuts and transfers input-torque to clamp-load more consistently.
- Features a unique 'bite-the-wire' C-insert that ensures a concentric, weep-free crimp for a high-performance, risk-free hydraulic hose assembly, keeping equipment and the environment clean.
- MegaCrimp couplings allow you to simplify your inventory by carrying one family of couplings that are qualified on all Gates® wire-braid hoses.
Spécifications
| Longueur | 3.19 in |
| Matériel | Acier |
| Type | 90 deg |
| CUP | 5414465869099 |
| Dimension de la connexion 1 | 0.5 in |
| Dimension de la connexion 2 | 3/4-16 UN |
| Numéro de référence de fabricant | G25179-0808X |
| Catégorie de produit | MegaCrimp Coupling |
| Quantité | 100 |
| Poids | 0.38 lbs |
Interchanges et pièces équivalentes:
| 71034728 |
